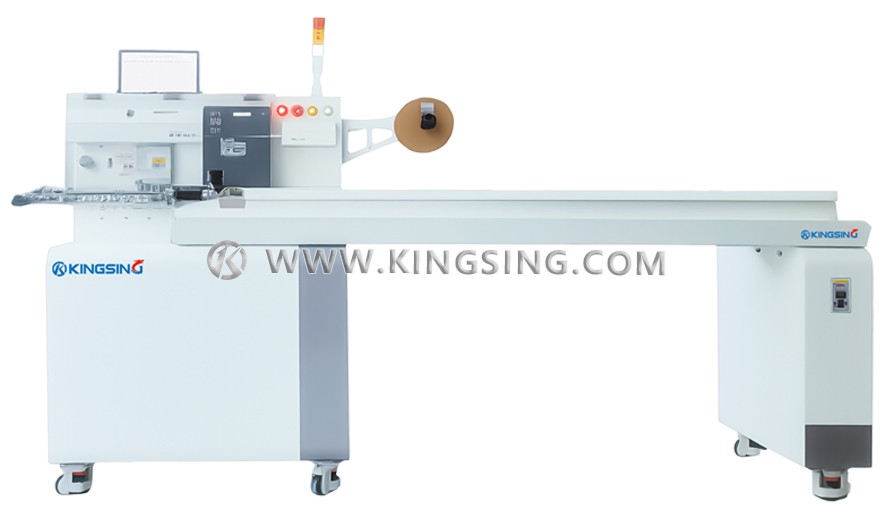

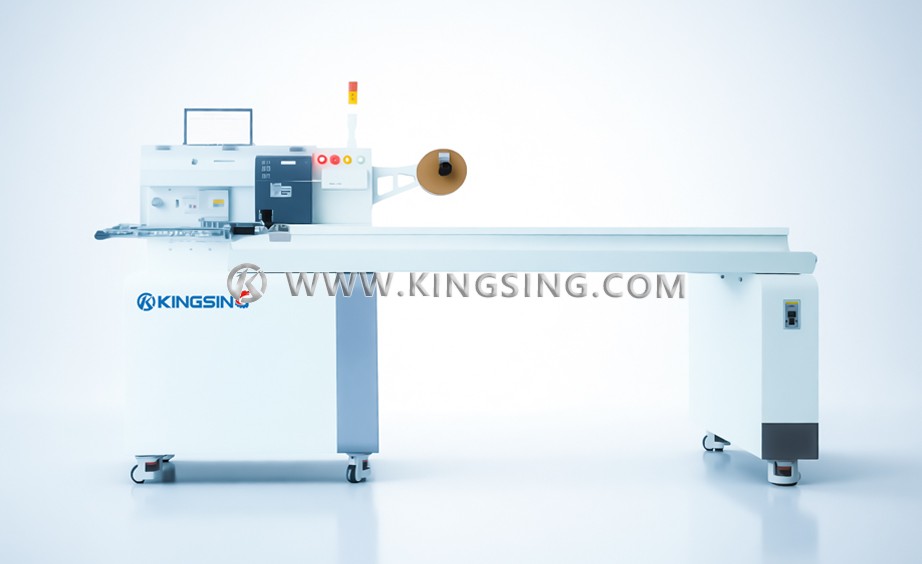

Industrial design philosophy and premium raw materials; integrated industrial control computer; standard take-up unit with automatic wire collection.
Features dual-head threading. Tube orientation (front/back), sleeve length, and numbering are fully programmable. High-speed processing reaches 500± Pcs/h.
Automatically adapts to different wire gauges—no adjustments needed when changing wires. Built-in sleeve heating (anti-freeze) ensures clearer printing and more precise labeling.
Machine Functions: Marking, Cutting to Length, Threading, and Wire Stripping – completed in one cycle.
Wire Diameter: 0.5~6.0 mm (BVR wire)
Speed: 500 ± pcs/h
Cutting Length: 70~9999 mm
Stripping Length: 5 ~20 mm
Control System: standard computer, USB interface
Detection Capability: Wire absence / Tube absence detection
Power Supply: AC 220V, 50 Hz
Air Pressure: 0.4~0.6 MPa (Air consumption: 130–180 Nl/min)
Operating Temp.: 10°C~35°C (Recommended constant ambient temperature: 20°C)
Printing Unit: Simultaneous printing on both ends of the marker tube
Tube Length: 15~35 mm
Tube Orientation: Adjustable forward/reverse direction (compliant with wiring standards)
Tube Positioning: Freely adjustable placement
Special Functions: Dual-head threading; Built-in sleeve heating (anti-freeze)
Consumables Compatibility: Ribbons, Sleeves, Cutting Blades
Take-up Unit: Standard 2-meter wire collection unit
Dimensions (L×W×H): 2500 × 650 × 1480 mm
