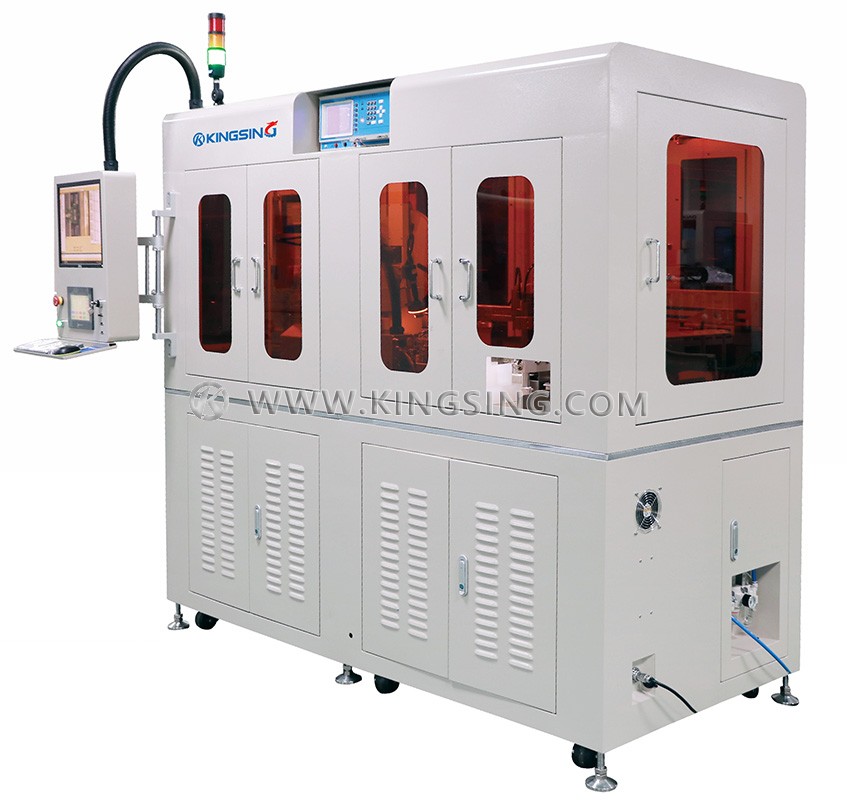

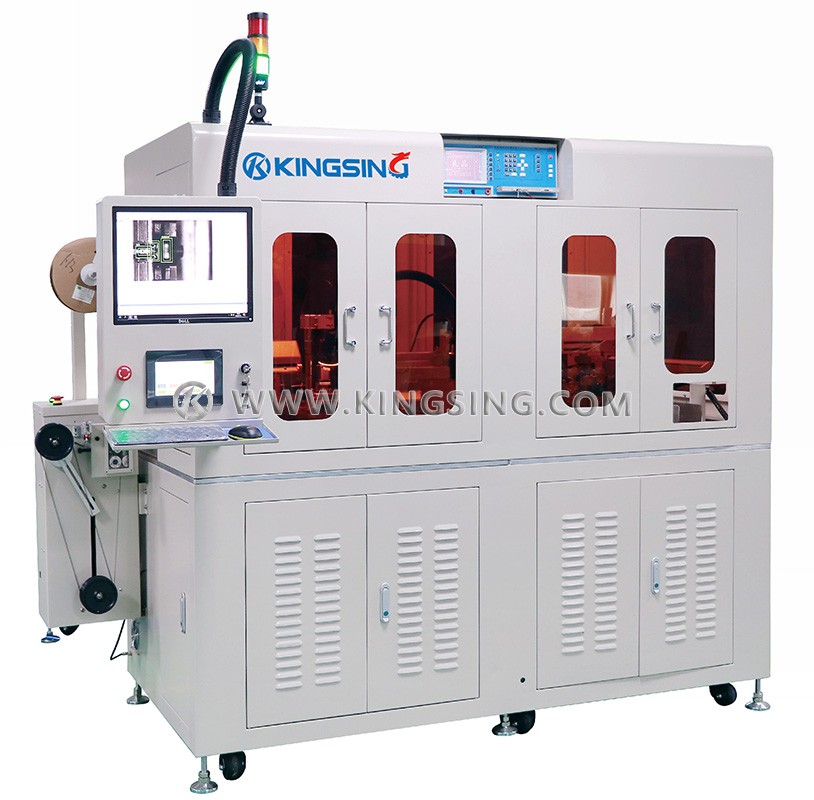

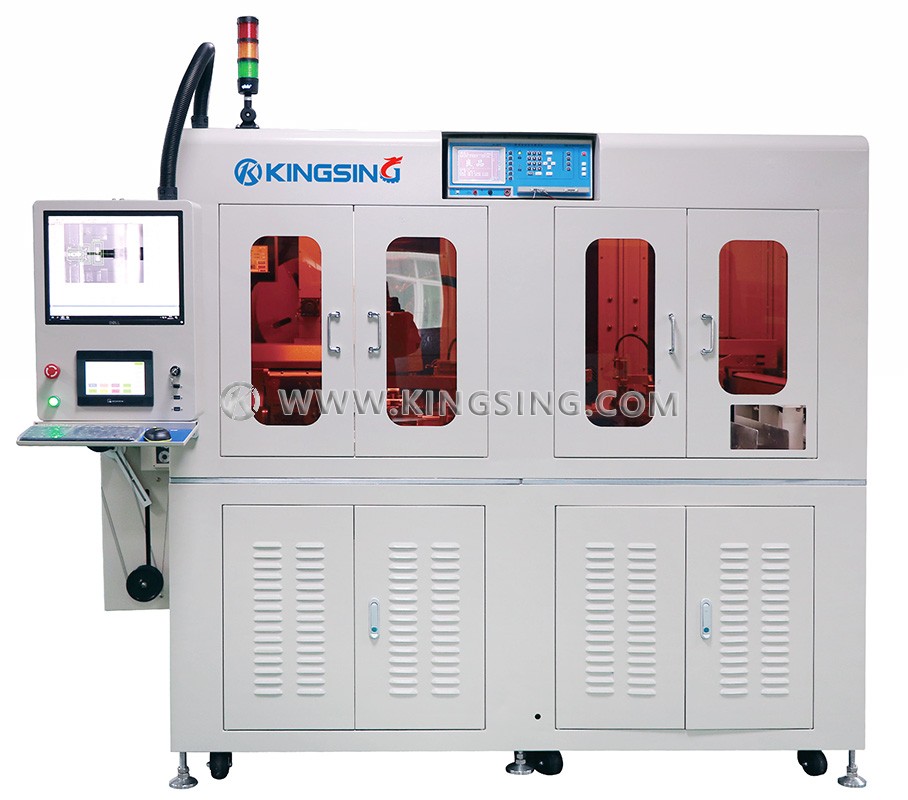

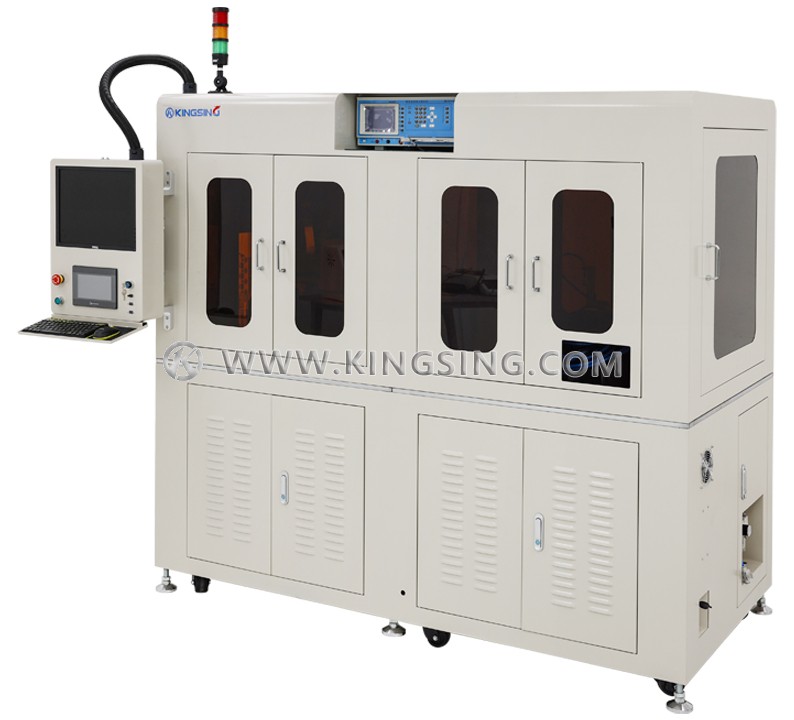

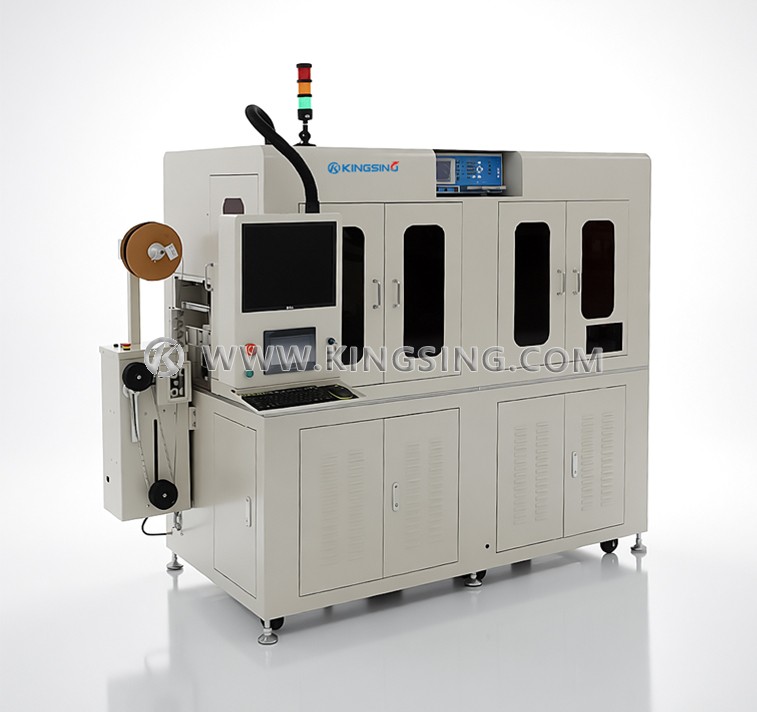

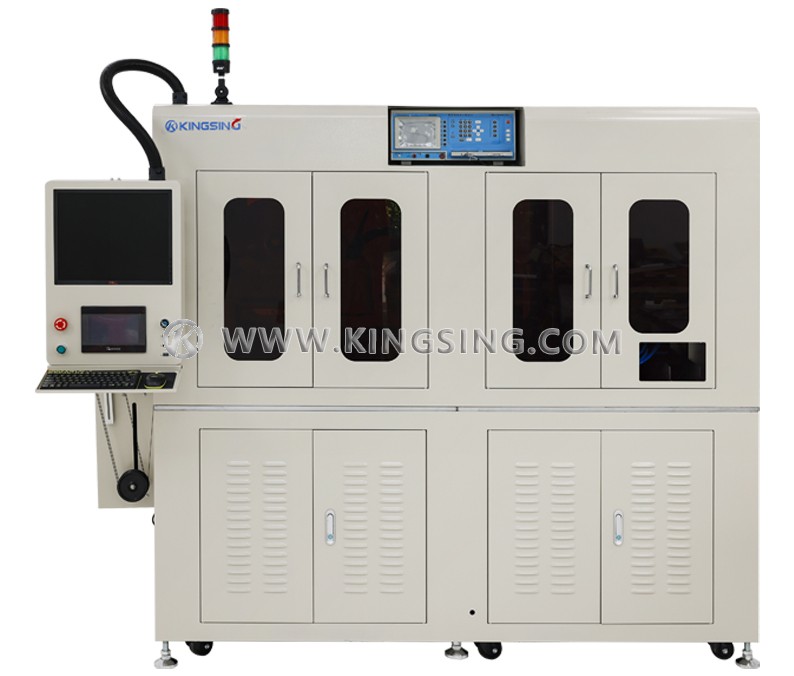

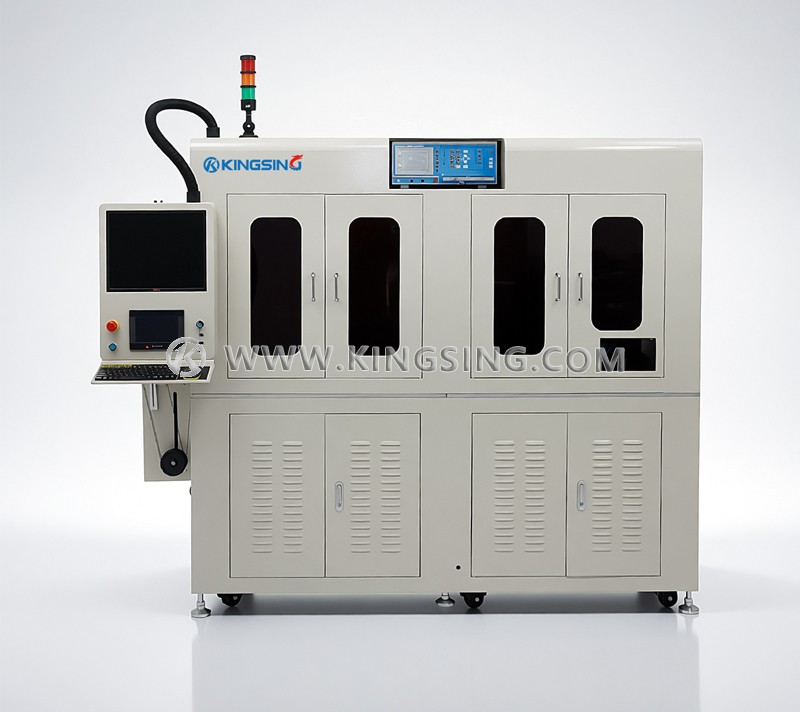

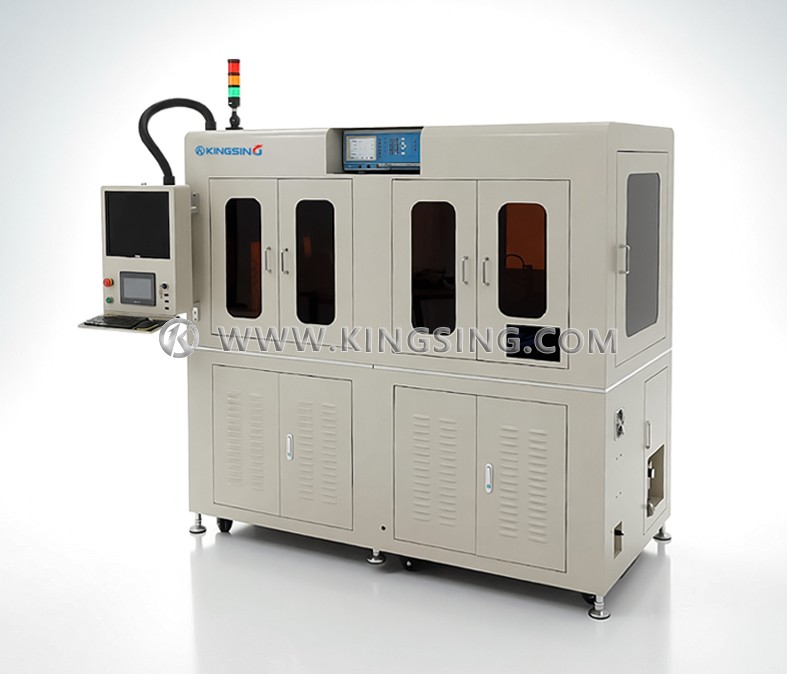

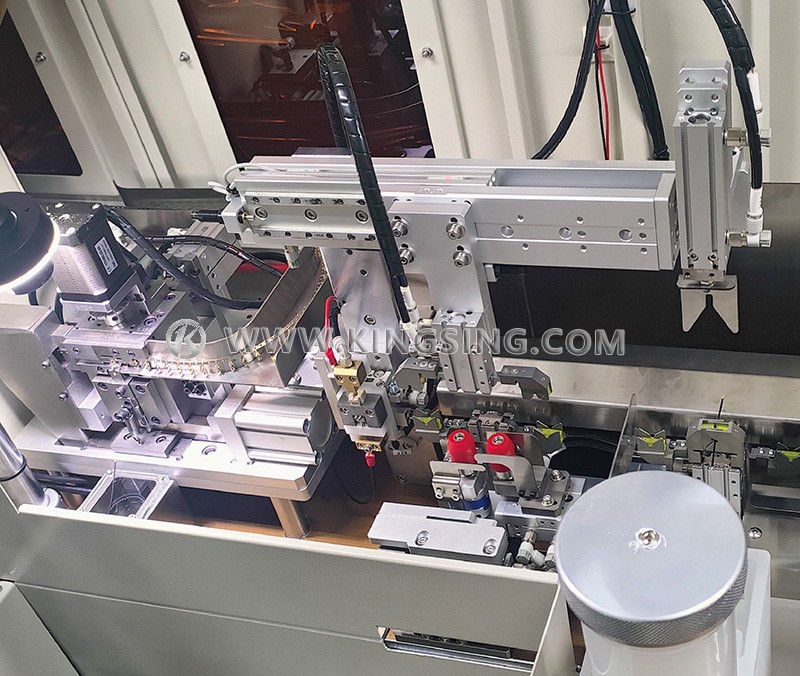

This advanced automated coaxial cable crimping and tinning machine integrates multiple precision technologies into a streamlined, high-efficiency production system. The equipment combines precision coaxial wire stripping, robotic arm handling, high-resolution vision positioning, automatic crimping, electrical testing, fluxing, and tin dipping processes in one comprehensive unit.
Equipped with a Japan EPSON 4-axis robot and original EPSON vision software, the system ensures stable handling and accurate positioning throughout the entire crimping and tinning cycle. The integrated automation eliminates manual handling between processes, significantly reducing contamination risks and improving overall product consistency for high-quality RF connectors and coaxial cable assemblies.
The machine delivers exceptional precision in both crimping and tinning operations with advanced electrical testing capabilities including high-voltage continuity, short/open circuit detection, and dimensional inspection to ensure every finished product meets stringent quality standards. With its linear design and compact structure, this processing system saves valuable floor space while maximizing operational efficiency.

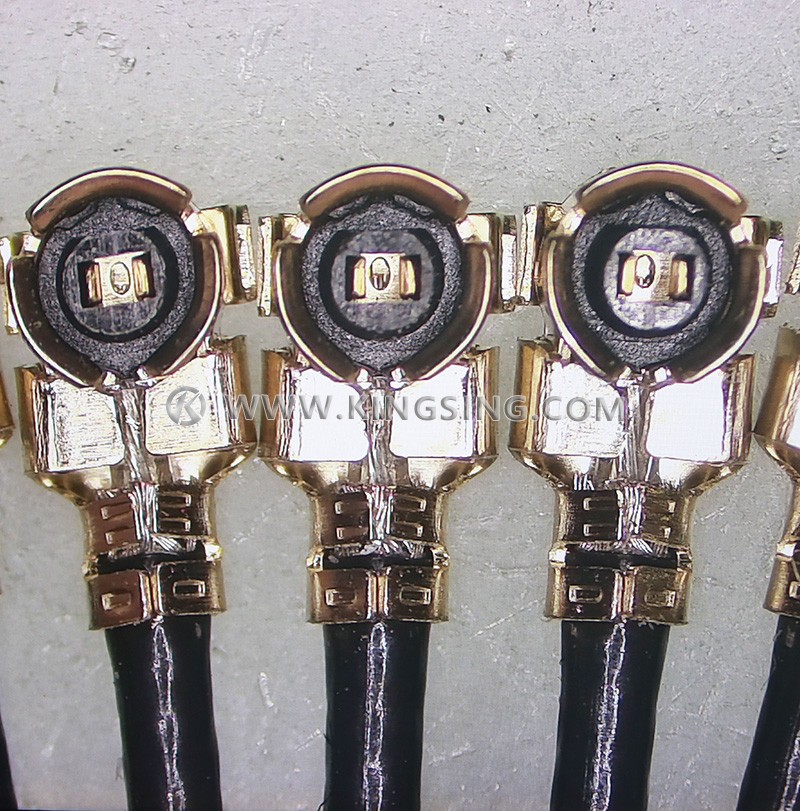

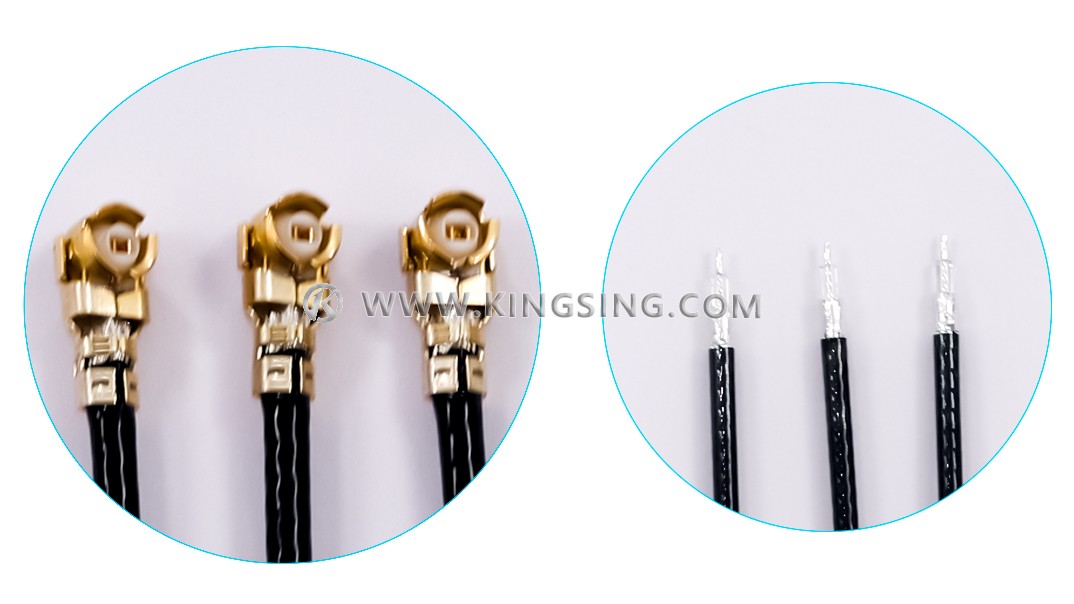

This versatile system is specifically designed for RF connectors, I-PEX terminals across multiple generations, and various coaxial cable applications in consumer electronics, communication devices, automotive electronics, and high-frequency transmission systems. The straight-through workflow design enhances productivity and reduces setup complexity, making it perfect for mass production environments requiring consistent, high-quality coaxial cable crimping and tinning operations.
| Processing | Single-end crimping + single-end tin dipping |
| Working Method | Robotic single-end crimping |
| Wire Range | Coaxial cable Ø 0.64–1.78 mm |
| Applicable Terminals | I-PEX original & other RF terminals (Generation 1–5) |
| Strip Length | 0.1–30 mm |
| Cutting Length | 35–800 mm (tin dipping end stripping ≤5 mm at 35 mm total length) |
| Processing Accuracy | Strip tolerance ±0.1 mm; overall length tolerance ±0.5 mm |
| Production Efficiency | 950–1240 pcs/hour (depends on stripping length) |
| Yield Rate | ≥ 99.7% |
| Equipment Utilization | ≥ 95% |
| Testing Functions | High-voltage continuity, short/open circuit detection, dimensional & positional inspection |
| Operation Interface | Touch screen + computer |
| Power Supply | AC 220V ±10% (customizable) |
| Total Power | ~2 kW |
| Air Pressure | ≥ 0.5 MPa |
| Dimensions (L×W×H) | 2300 × 1500 × 2200 mm |
| Net Weight | 900 kg |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
