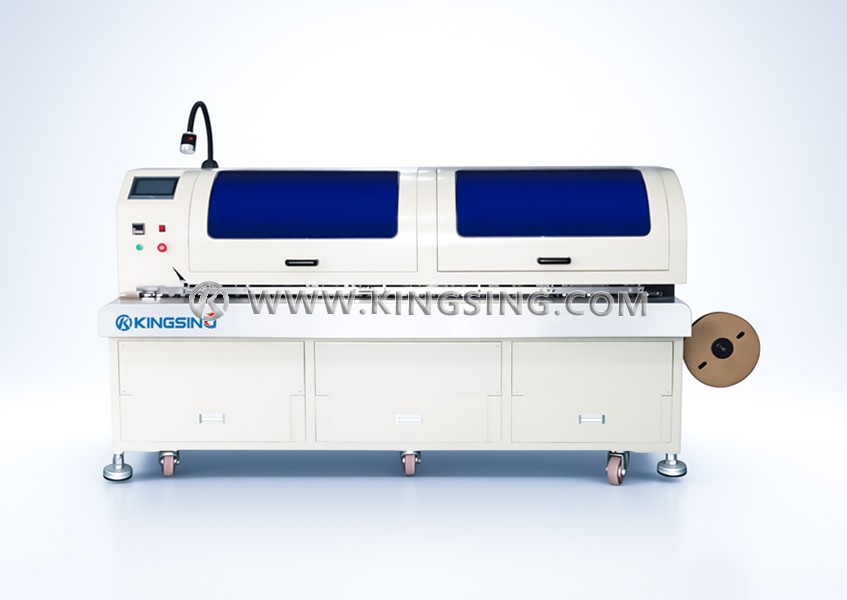

Shield Brushing Twisting and Heat Shrink Tube Inserting Machine

  • Model：KS-S004
  • Net. Weight：550kg
  • Dimension：1030×680×1370mm
Online Inquiry

This machine is specially designed for processing cables with braided shielding, such as USB data cable, 1185 DC cable, car connection cable, microphone cable, etc. It integrates multiple functions and can automatically complete the following actions: jacket stripping, shield brushing and twisting, heat shrink tubing insertion, core wire stripping twisting and tinning, core wire trimming, etc.

KINGSING

Download: (1) (2)

Available Wire Size: Φ2~8mm (Can be customized)

Jacket Stripping Length: 10~60mm (Can be customized)

Power Supply: 220V 50/60Hz

Net. Weight: 550kg

Dimension: 1030×680×1370mm

ModelKS-S004AKS-S004B
Jacket Stripping√√
Shield Brushing√√
Shield Twisting√√
Tube Insertion√√
Heat Shrinking√√
Core Wire Stripping√√
Core Wire Twisting√√
Core Wire Tinning×√
Core Wire Trimmingoptional√
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
