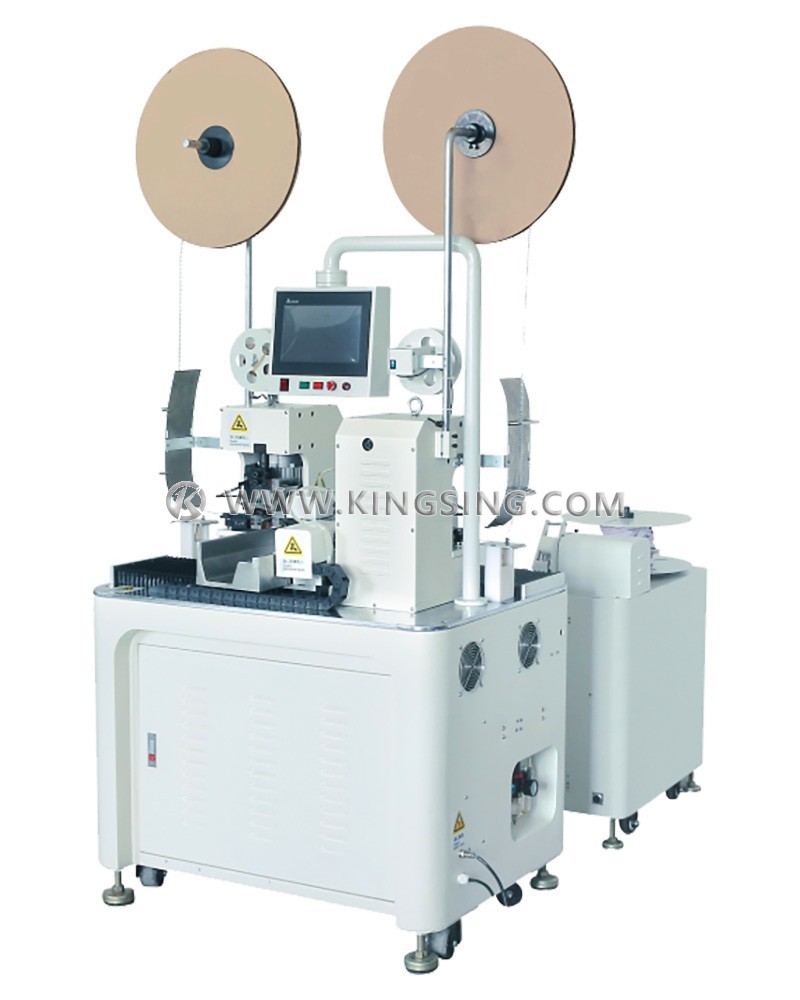

Automatic Ribbon Cable Stripping and Crimping Machine

  • Model：KS-T320
  • Net. Weight：
  • Dimension：
Online Inquiry

Fully automatic wire harness processing will become increasingly important in the future. After all, the full automation of these processes, completely release of manual work, is the only way to assure maximum quality and efficiency. KS-T320 is widely used to crimping PH, XH, EH, ZH and other color flat wire harness terminals. SUV, SM, VH and DuPont bar connector terminals. This machine adopted Panasonic servo motor, Panasonic PCL and HMI control system. Powerful, high precision and productivity, durable wearing parts and long service time, are the main feature of KS-T320. This machine works fully automatically, cutting, stripping, splitting and twisting are controlled by the machine all the time. The changeover between different cables and terminals is timesaving. The cutting and stripping blades are made of high superior tungsten steel, and the crimping blades are designed according to customers’ samples to guarantee perfect working performance. Maximum availability with minimal maintenance, user friendly and intuitive machine operation. All product data is saved in a database and can be retrieved at any time.




Available Wire Size: 0.9 ~ 2.3 mm (2468 wires)

Cutting Length: 65mm ~ 9999mm

Stripping Length: 1 ~ 15mm

Crimping Mode: Single Crimping, Double Crimping, Front Bake Crimping, Alternate Crimping

Stripping Accuracy：± (0.002mm× Stripping Length)

Cutting Accuracy：± (0.002mm× Cutting Length)

Crimping Force: 2.0Ton

Stroke: 30mm (40mm is customizable)

Display: 5.7" Touch Screen

Speed: 3000 pcs/hour (20pin)

Air Pressure: 0.5MPa - 0.6MPa

Power Supply: 220V/50Hz 110V/60Hz

Power Rating: 2000W

Net Weight: 200Kg

Dimension: 800 × 1200 × 600 mm




Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
