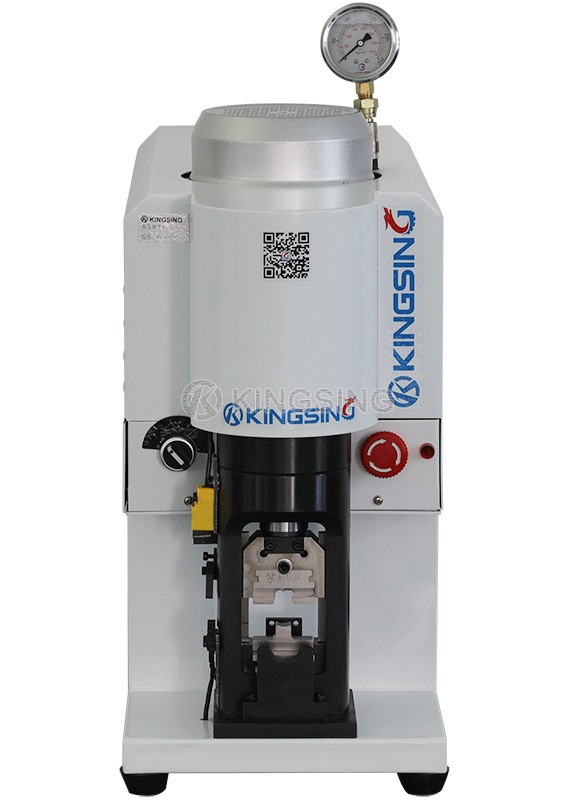

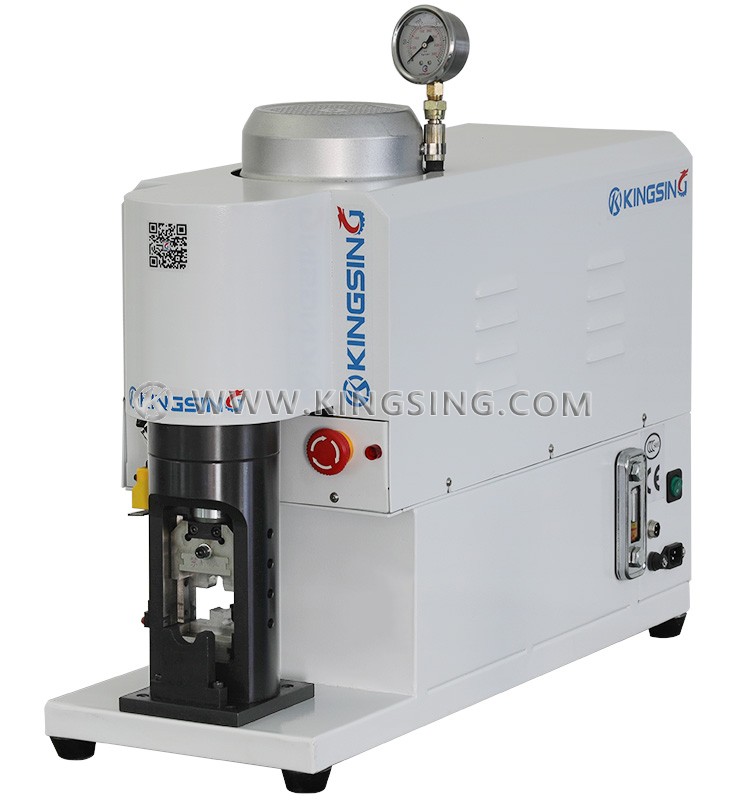

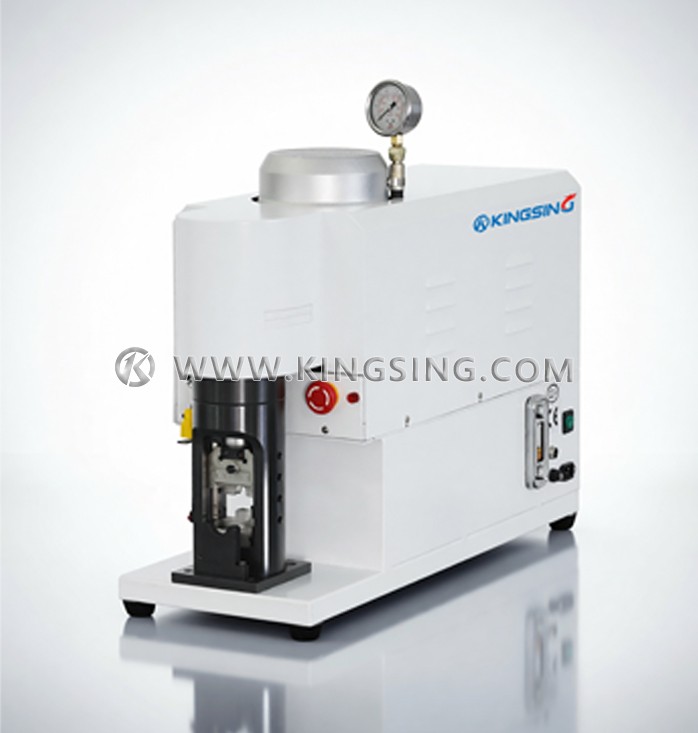

Large Square Hydraulic Crimping Machine

  • Model：KS-T523 series
  • Net. Weight：
  • Dimension：
Online Inquiry

This is an electro-hydraulic crimping machine, which is specially designed for crimping large square wires. It can crimp wires up to 200mm2. There are a variety of crimping applicators to choose from, such as hexagonal free-changing applicators, B-shaped applicators, etc.It is convenient and quick to change the applicator. High-tech frequency conversion technology is used for precise positioning, and it has the function of maintaining pressure during crimping, and the crimping size is stable. This machine does not need an additional hydraulic station, it can work when plugged in, does not need an air source, is light in size, and easy to debug.

Download: (1)
ModelKS-T523AKS-T523B
Crimping Force30T40T
Applicable Wire Diameter2.5~120mm24~200mm2
Motor Power1500W2200W
Net Weight96kg100kg
Dimensions
800*350*700mm800*350*750mm

Crimp stroke: 50mm

Optional applicator: hexagonal free-change applicator, B-shaped applicator, etc.

Production efficiency: 600~800 pieces/hour

Start mode: foot switch

Power supply: 220V 50/60Hz

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
