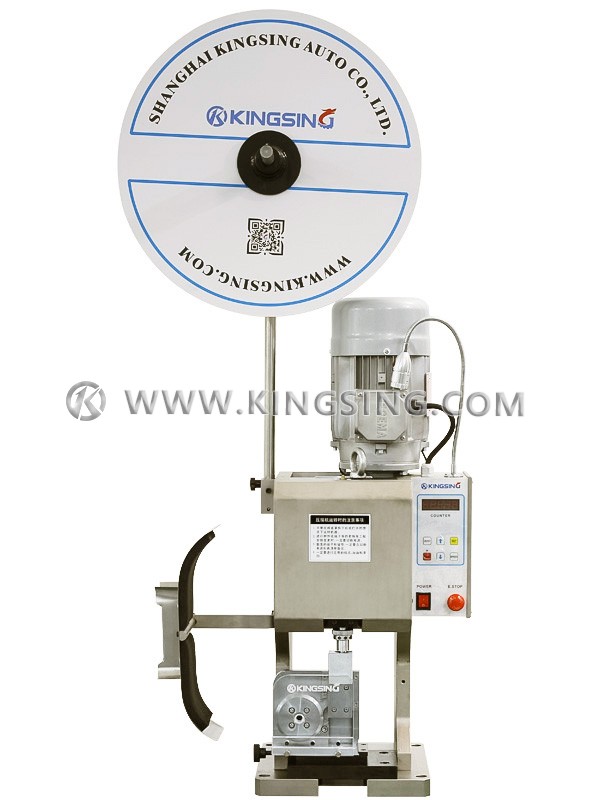

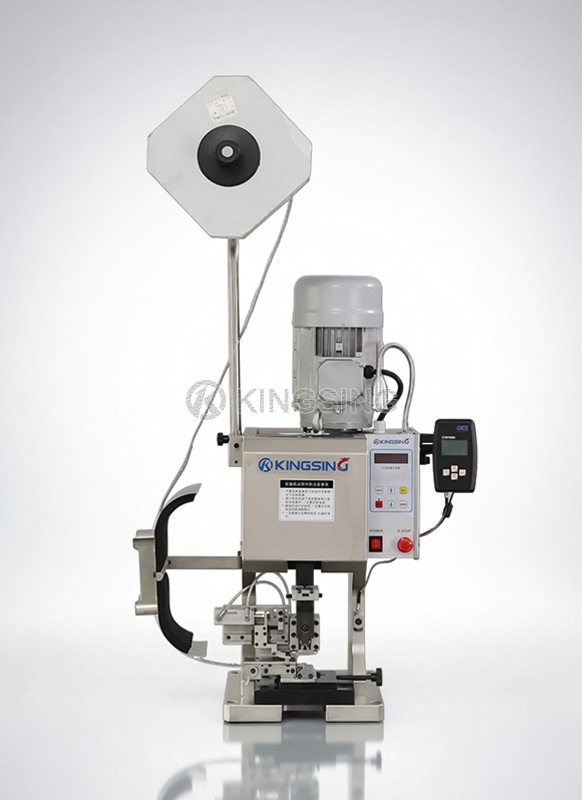

Premium Quality Terminal Crimping Machine

  • Model：KS-T5224
  • Net. Weight：
  • Dimension：
Online Inquiry

It is a premium quality terminal crimping machine. The crimping force monitor can be customized according to production requirements. The crimping force monitor can monitor the force curve change of each crimp in real time, and automatically alarm and stop when the force is abnormal. The force of the machine is 4Ton, and the crimping stroke is 40mm, which is suitable for various European high-precision applicators.

Download: (1) (2)

Power Rating:  1.5KW

Stroke: 40mm

Net Weight: 120Kg

Dimension: 420×350×820mm

Power Supply: Single phase 220V 50Hz/60Hz

Crimping Force: 4Ton（Other requirements can be customized）

Terminal Type: Open continuous terminal，side-feed terminal，end-feed terminal, etc.

Applicator: 40mm stroke European applicator, 40mm stroke Korean applicator, etc.

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
