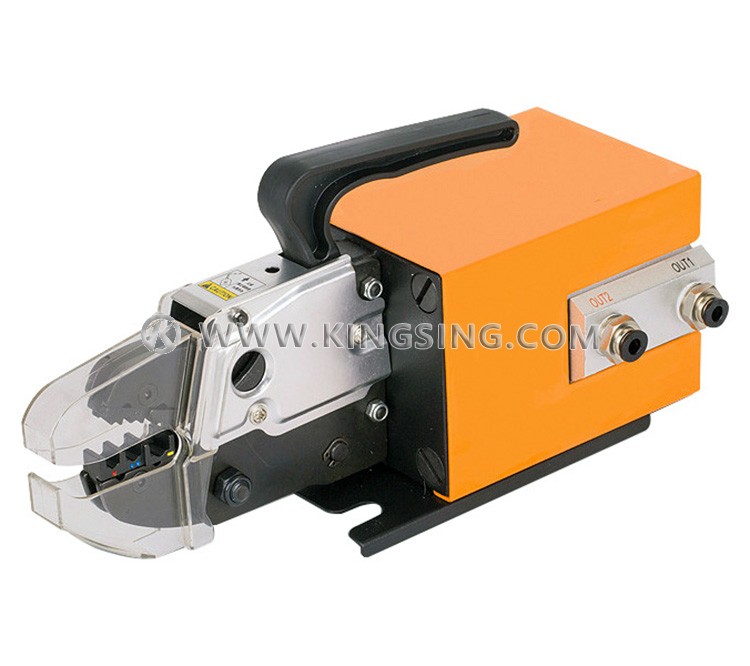

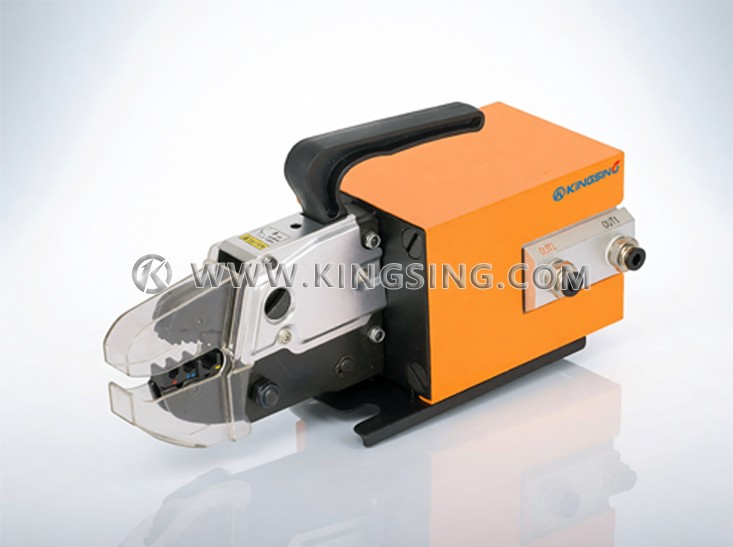

This pneumatic terminal crimping machine is specifically designed for bulk terminal applications, offering exceptional portability and convenience without requiring electrical connections. Simply connect to an air source to begin operation, making it ideal for field work and mobile applications.
The machine accommodates wire harnesses with cross-sections ranging from 0.5mm² to 16mm², providing versatility for various terminal crimping tasks. Its interchangeable mold system allows users to switch between different terminal types quickly, ensuring compatibility with a wide range of bulk terminals.
Featuring a compact and lightweight design, this crimping tool includes a convenient carrying handle for easy transportation between work sites. The pneumatic operation delivers consistent crimping force and reliable results, making it suitable for both production environments and maintenance applications.
The machine's robust construction ensures durability while maintaining precise crimping quality across different terminal sizes and wire gauges, enhancing productivity in wire harness assembly operations.
| Applicable Wire Range | 0.5–16 mm² |
| Maximum Pressure | 13.5 KN |
| Available Wire Size | Pre-insulated Terminal: ≤6mm² Non-insulated Terminal: ≤16mm² Ferrule Terminal: ≤35mm² |
| Mold Type | Customized according to samples |
| Air Pressure | 0.5–0.8 Mpa |
| Net Weight | 5 kg |
| Dimensions | 280 × 100 × 140 mm |

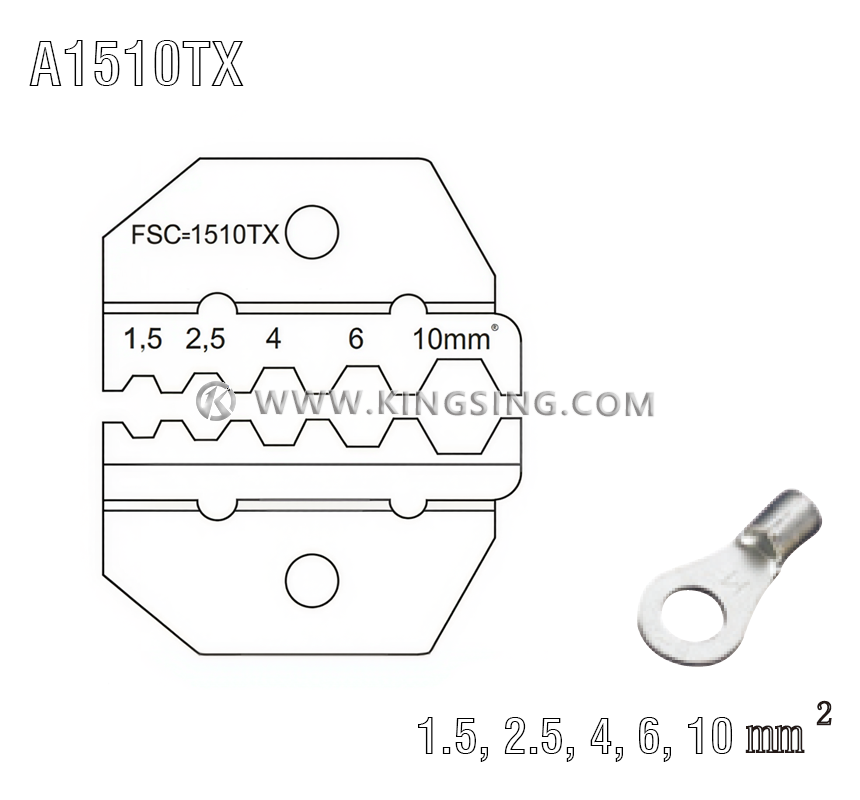

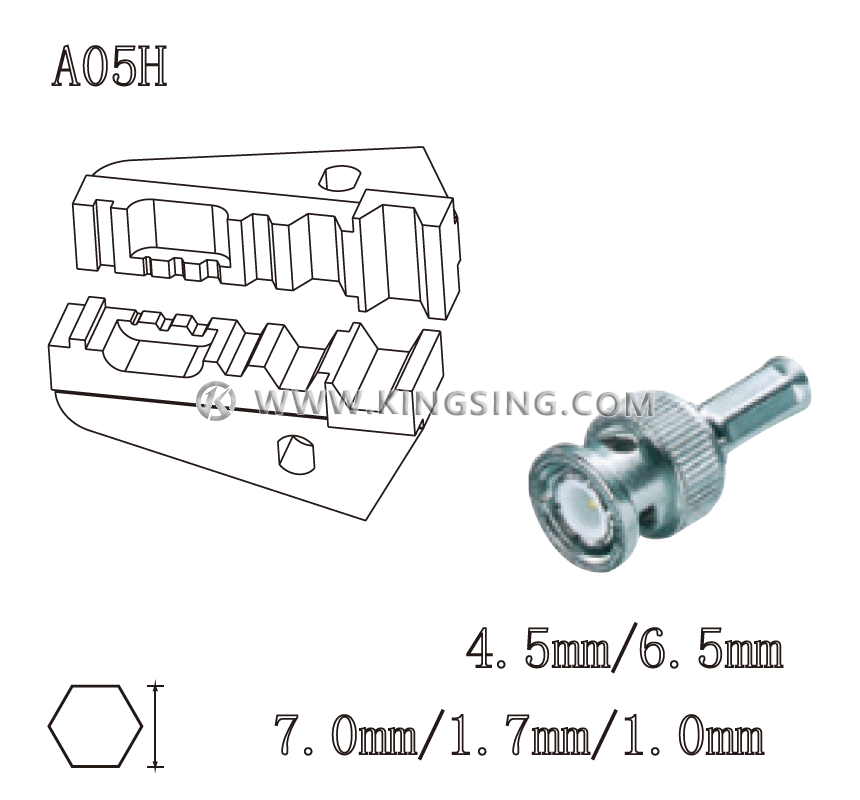

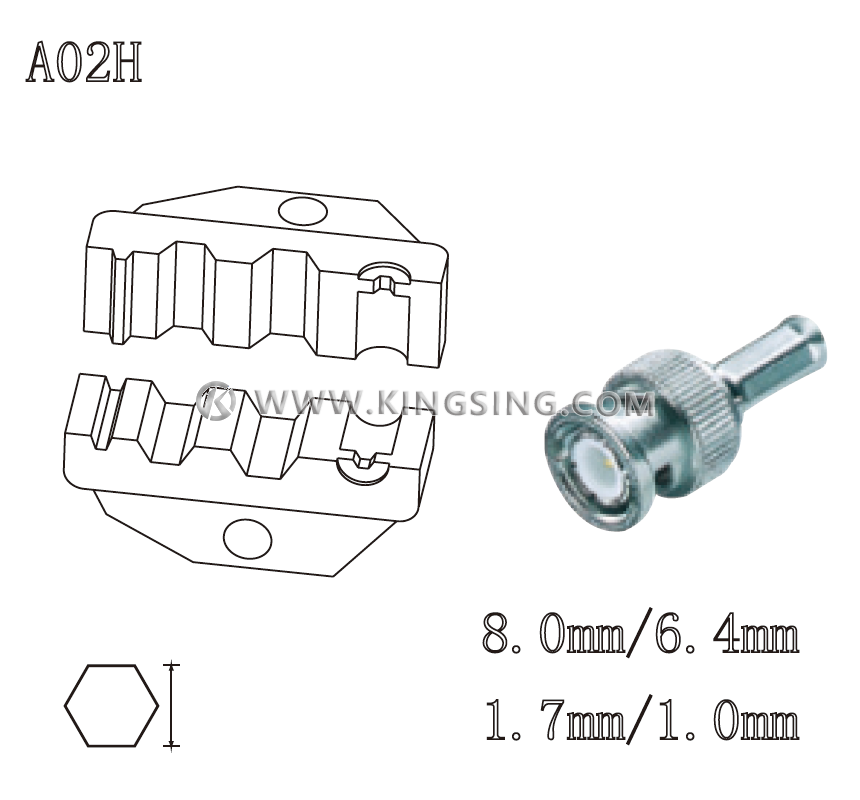

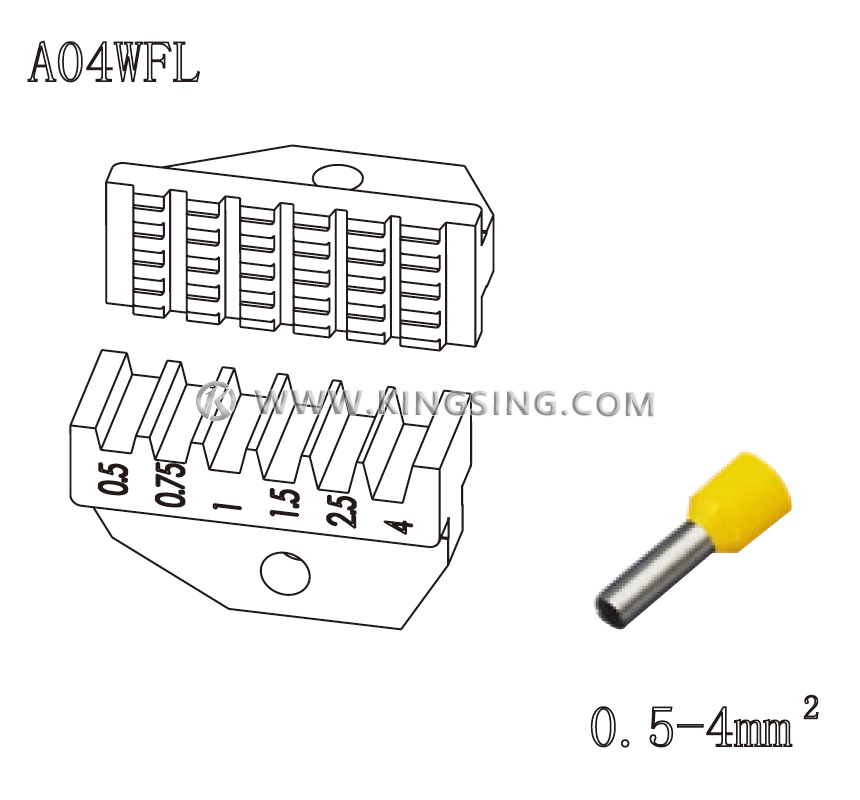

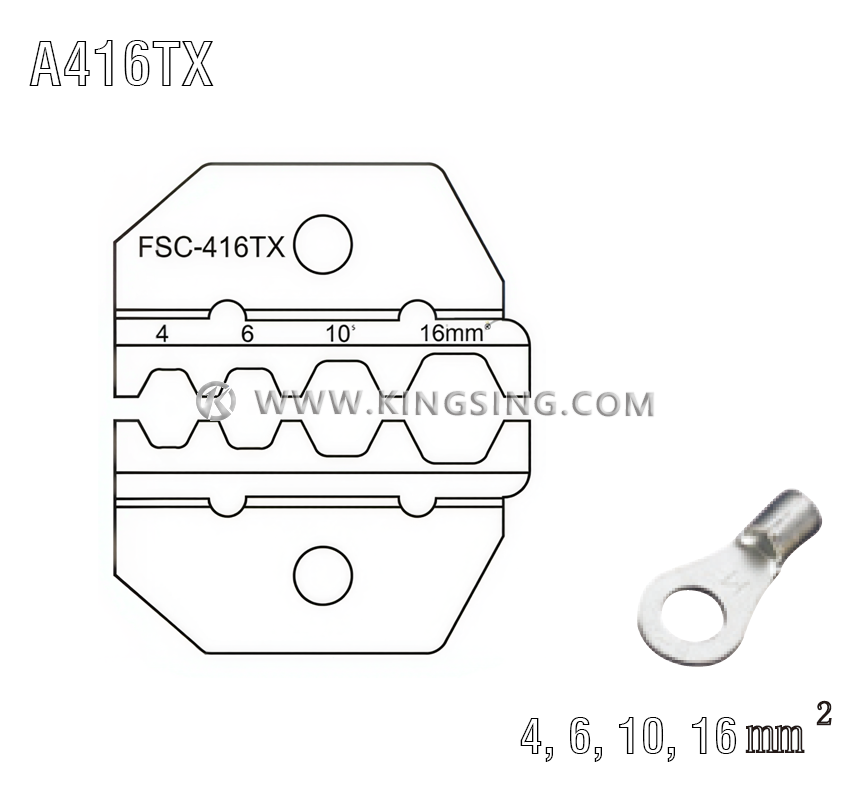

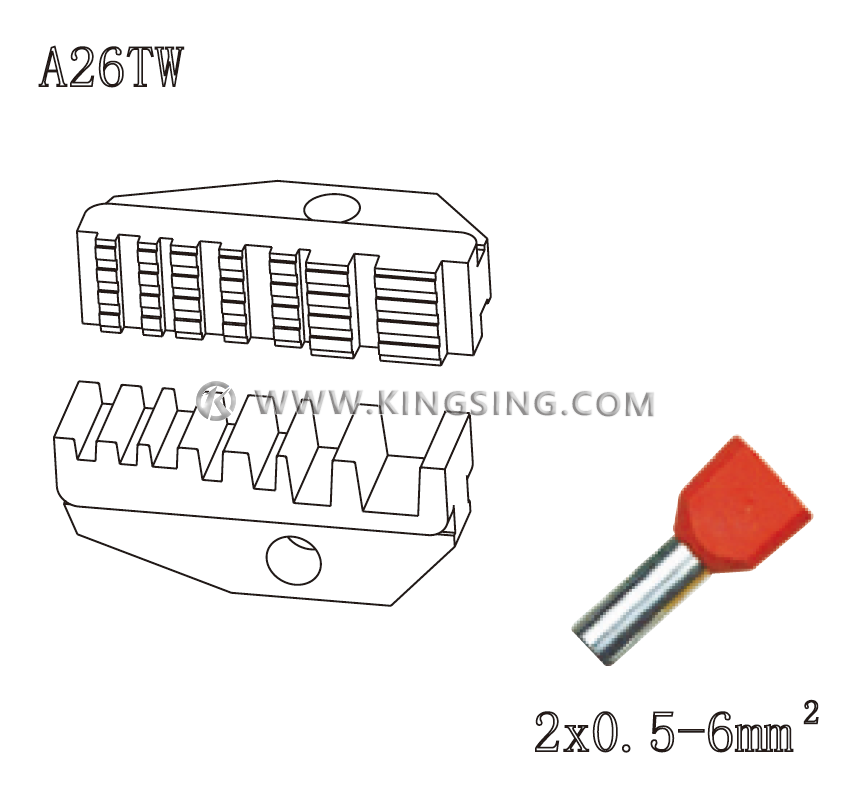

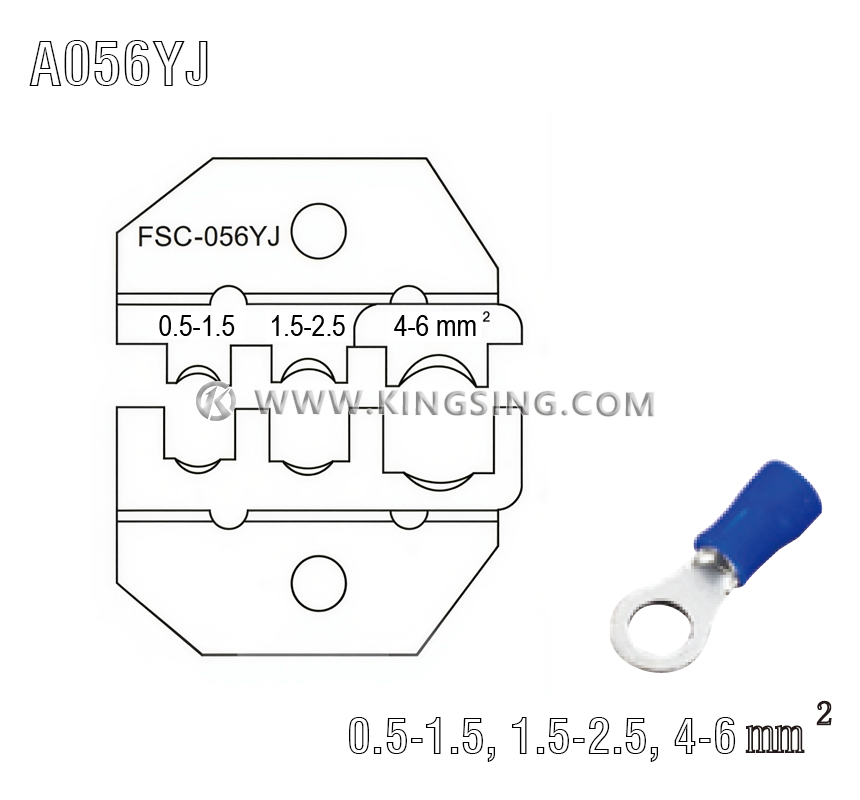

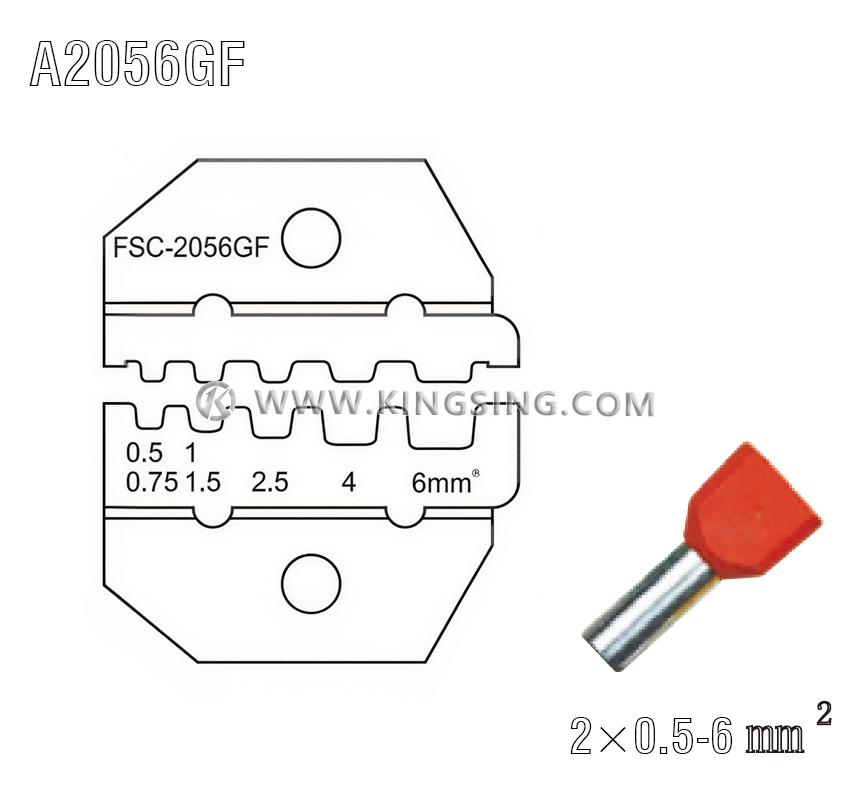

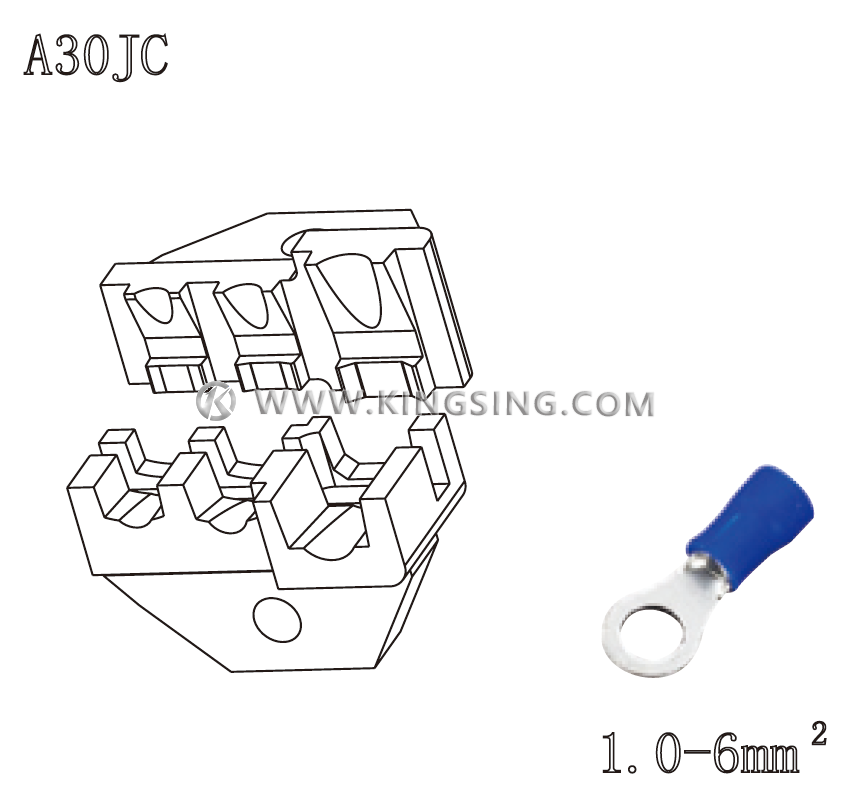

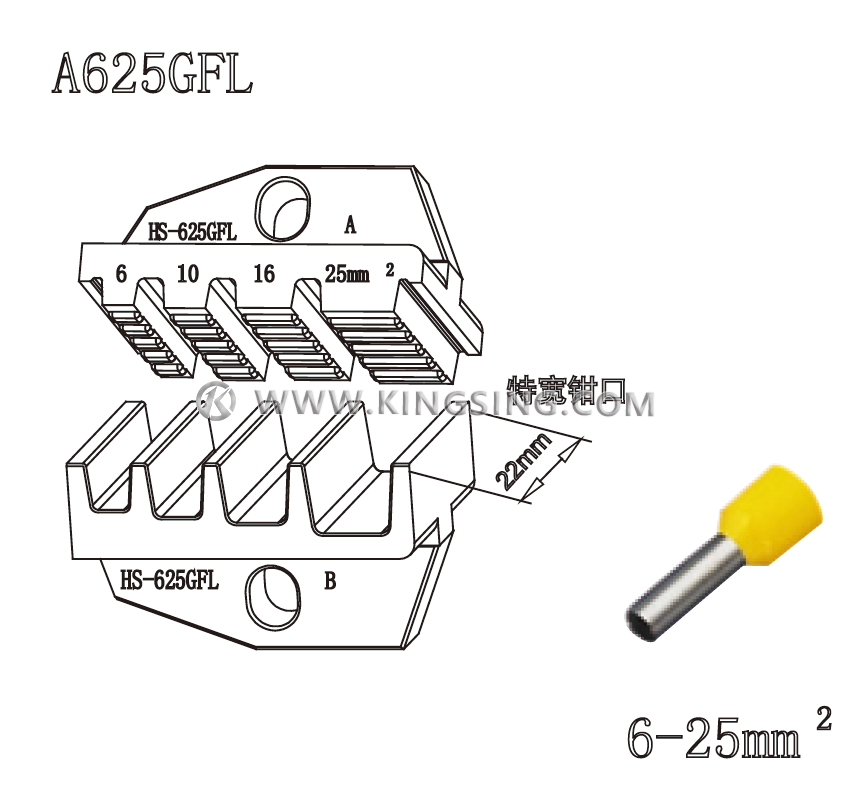

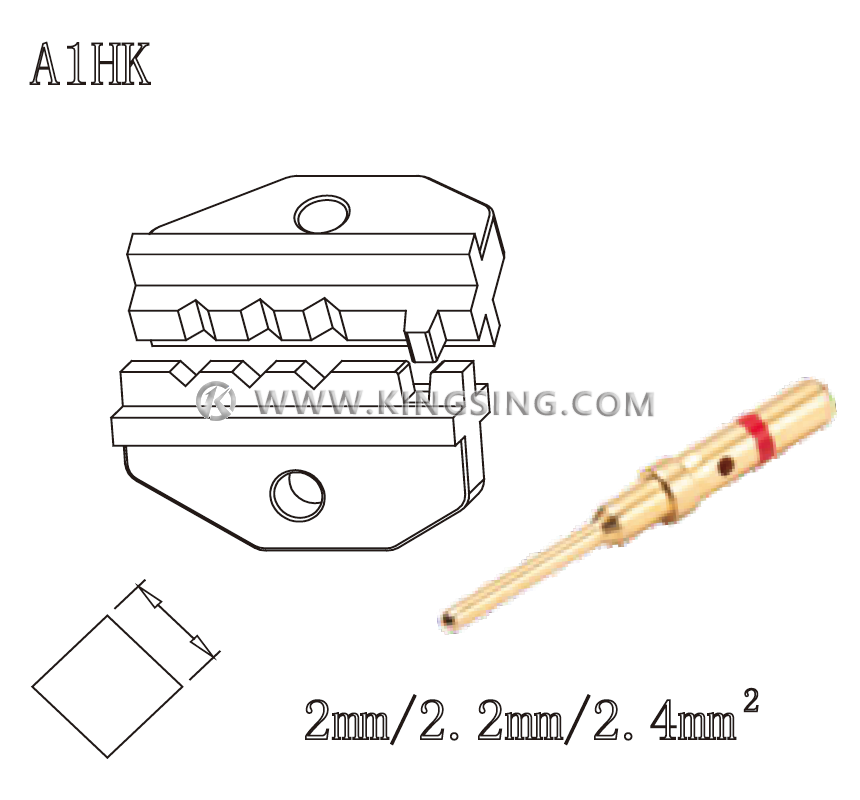

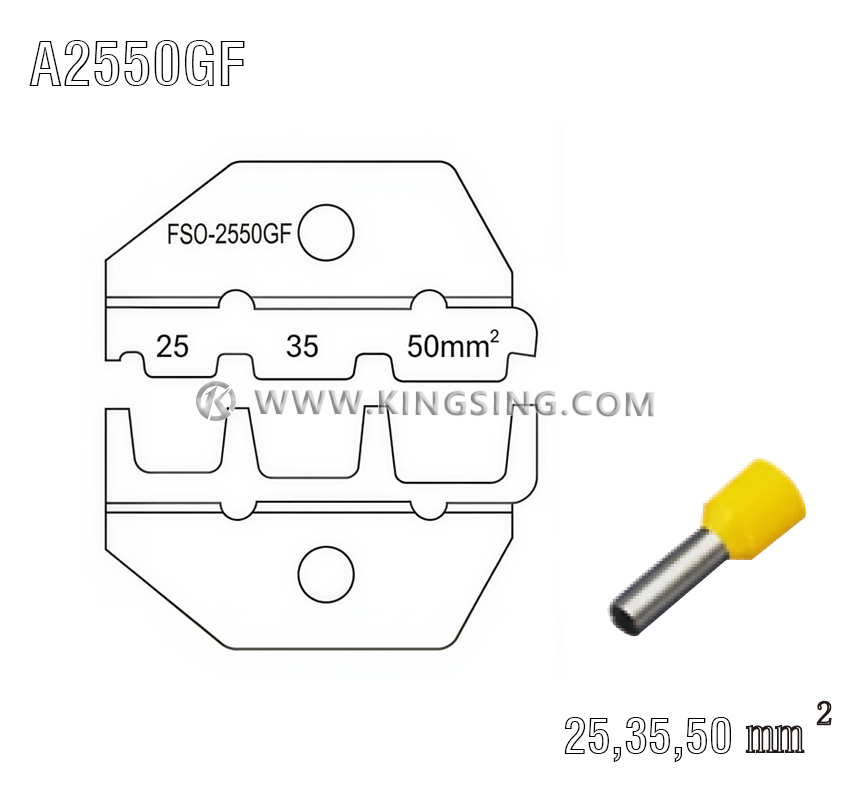

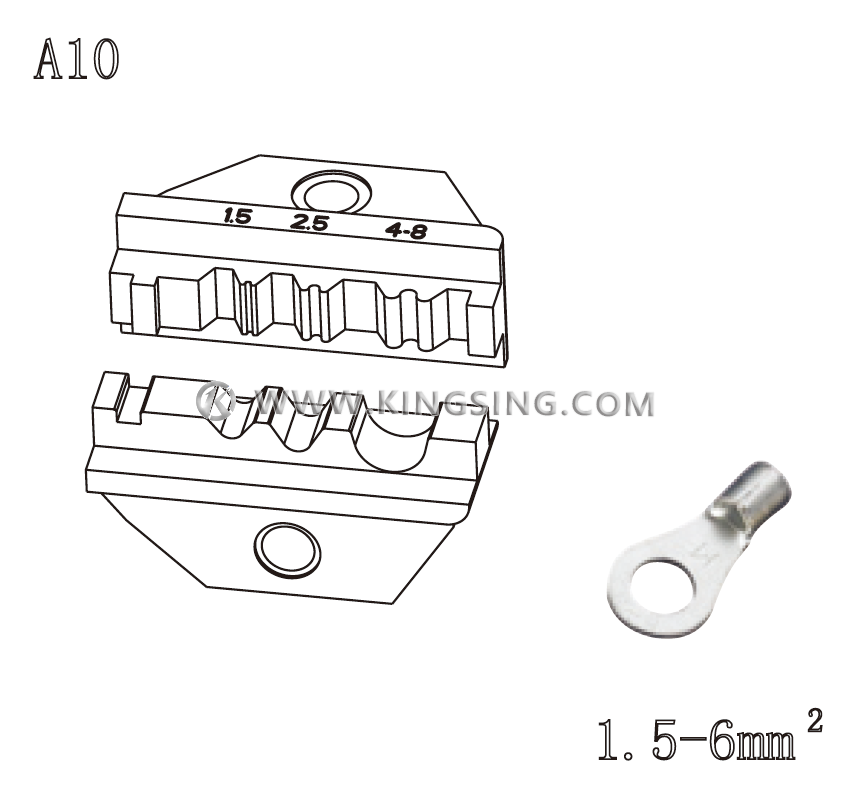

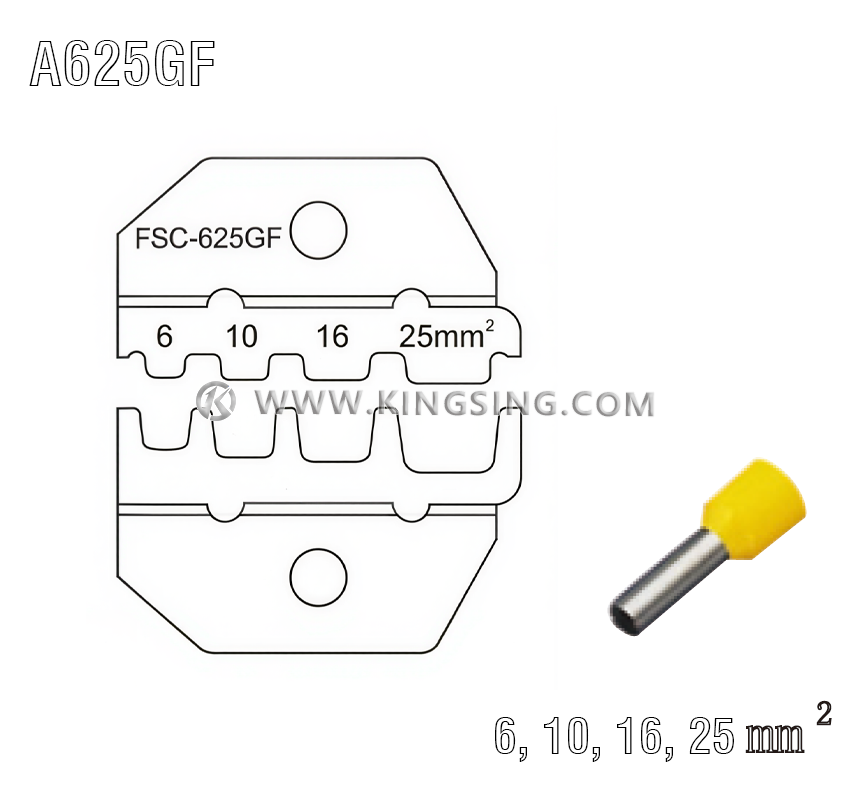

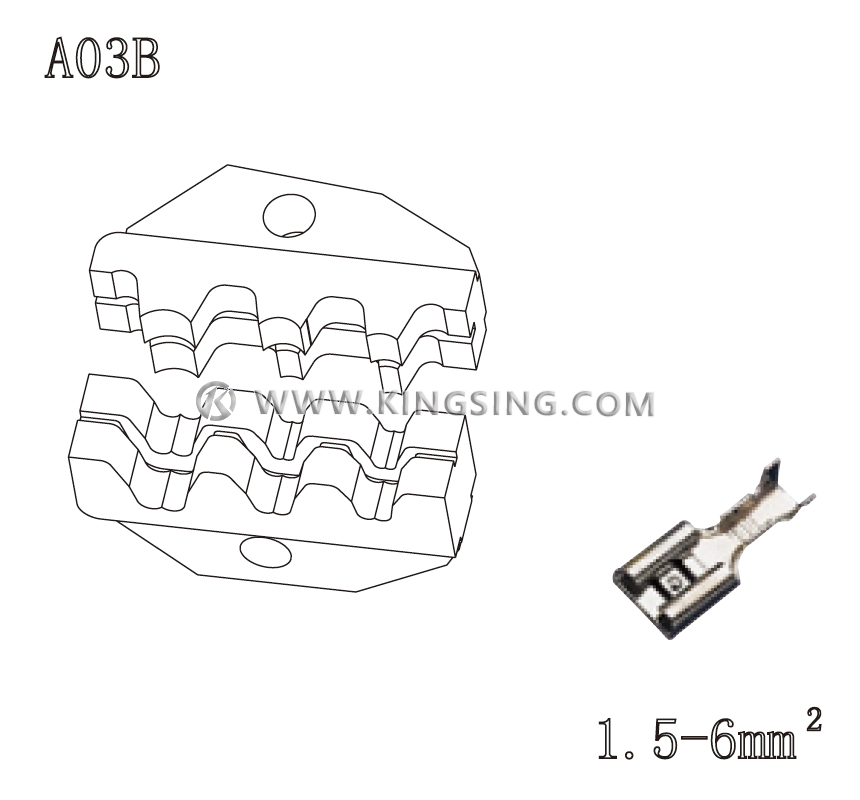

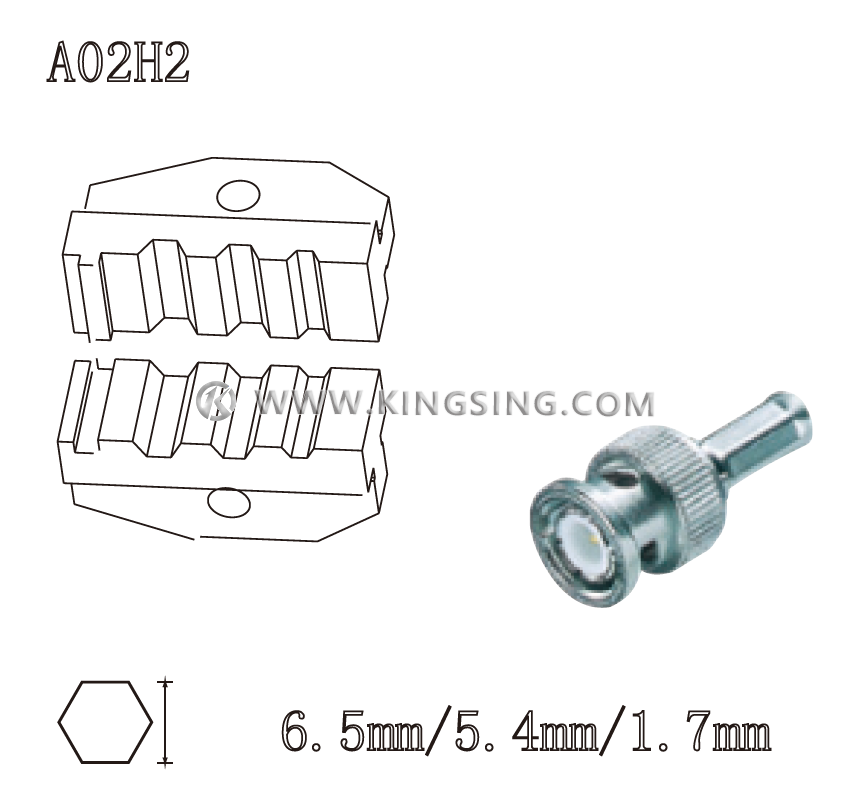

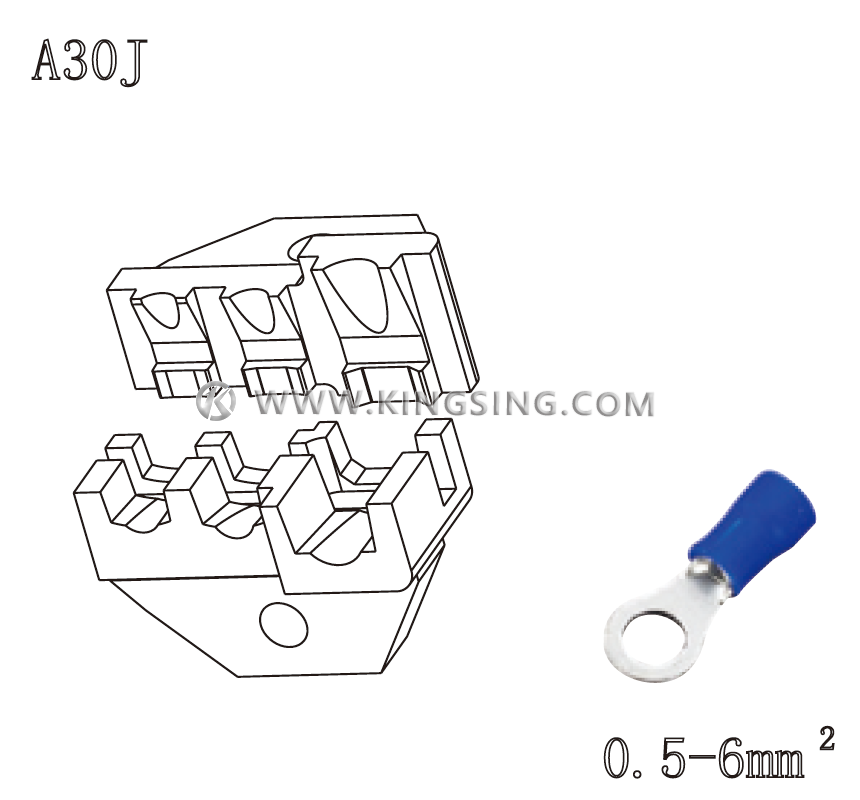

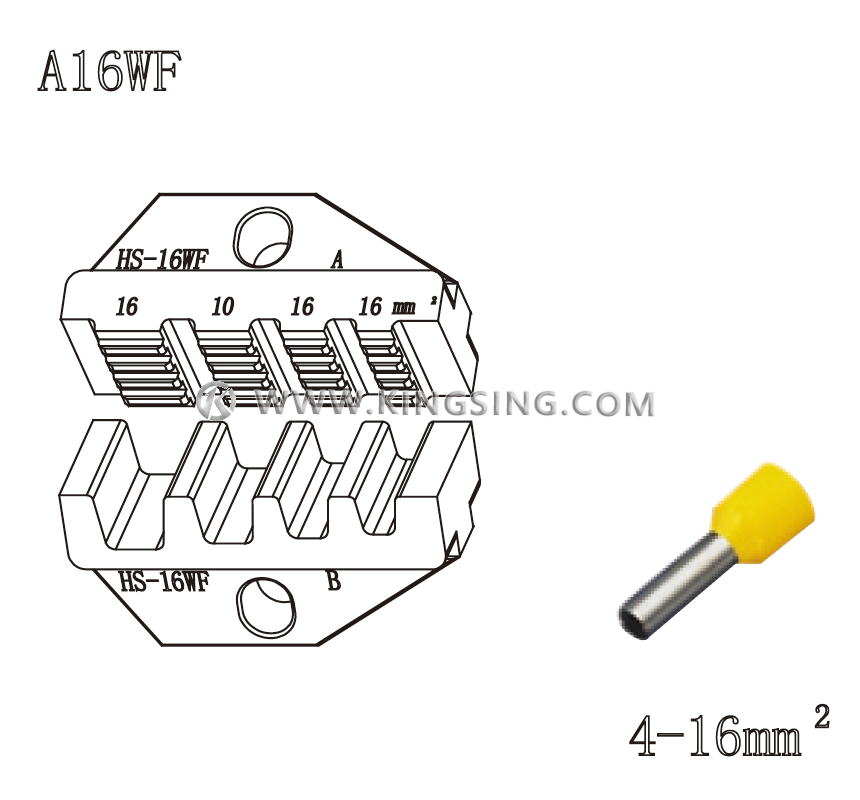

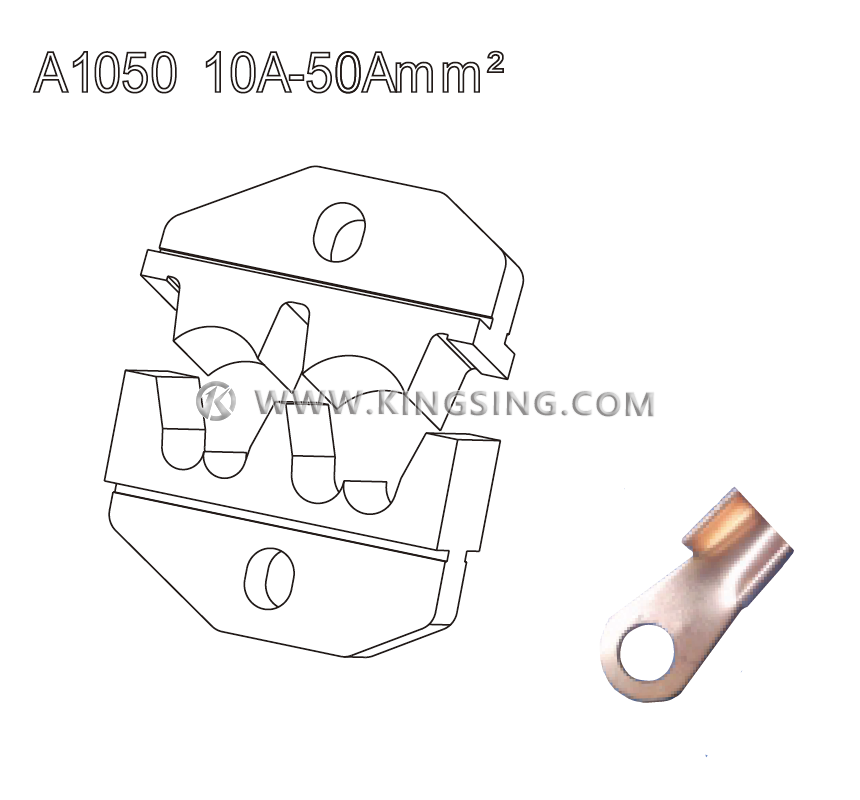

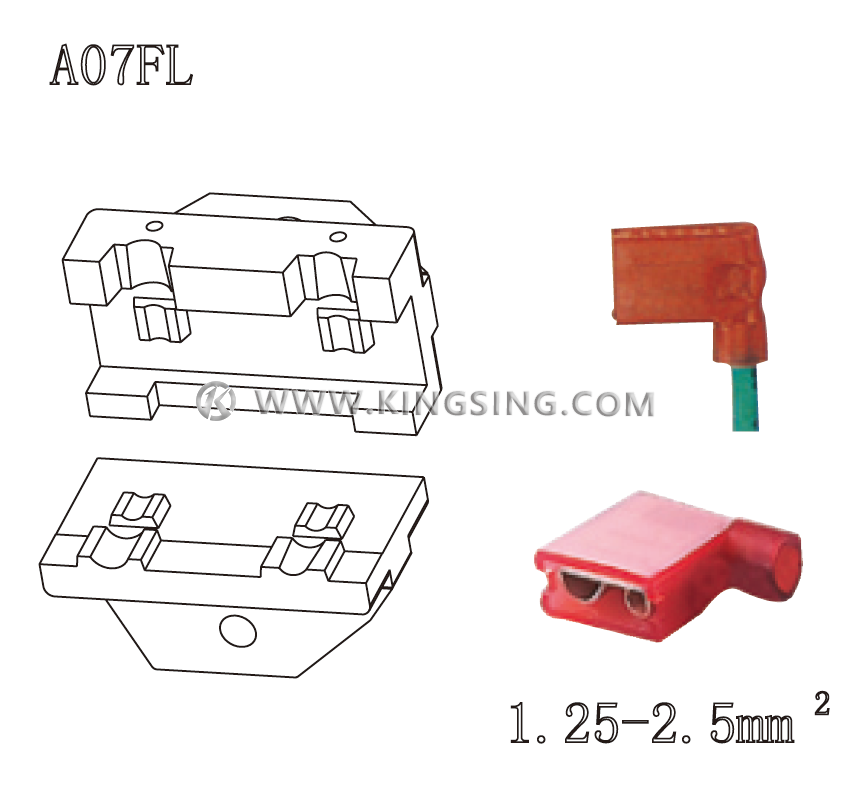

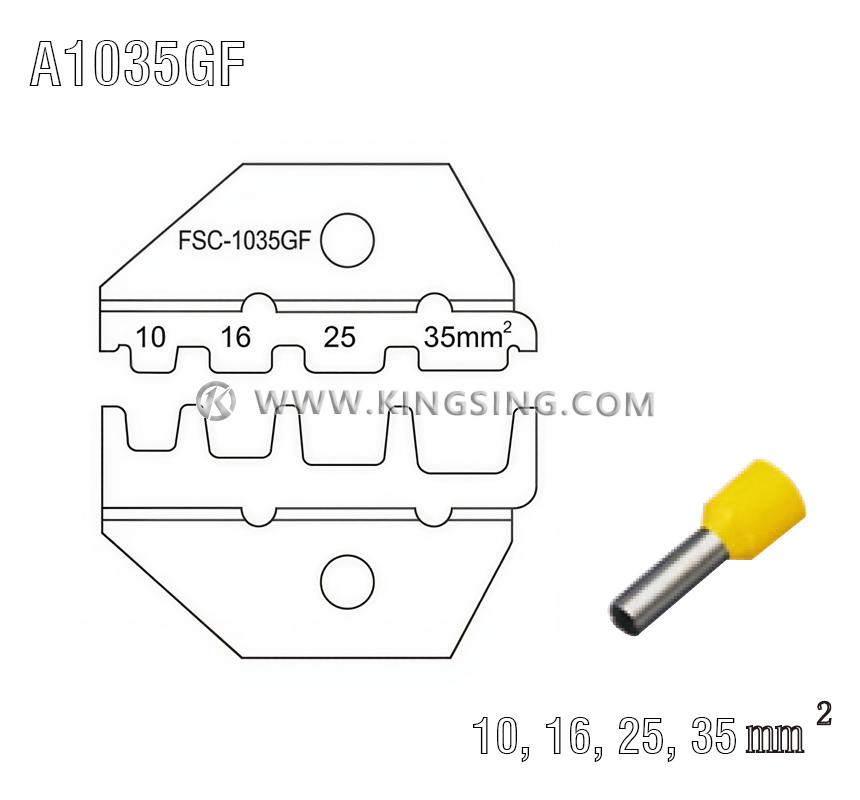

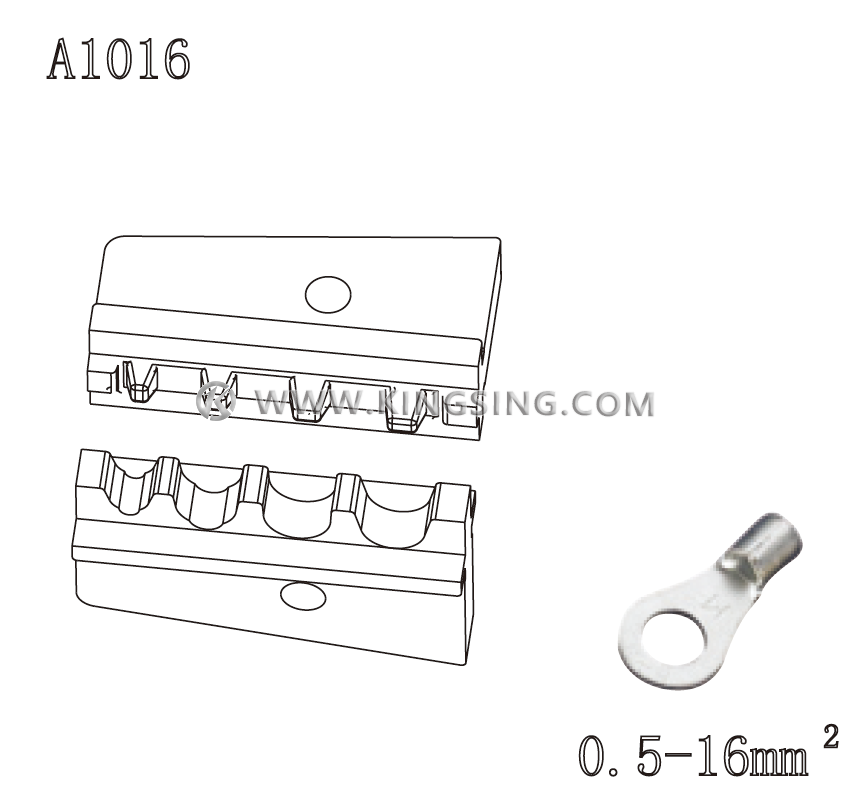

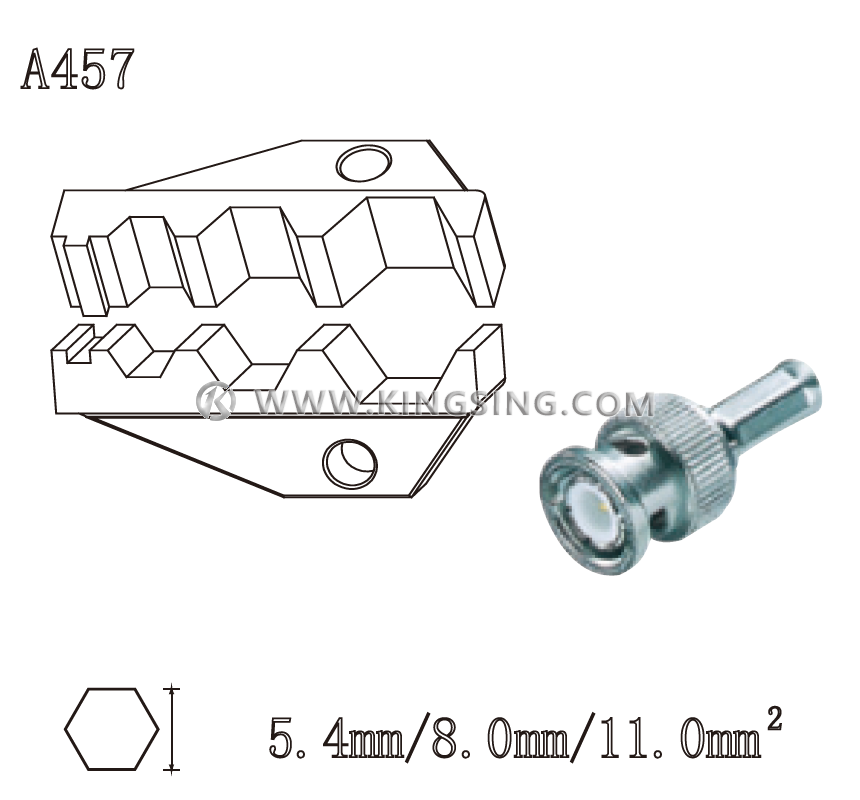

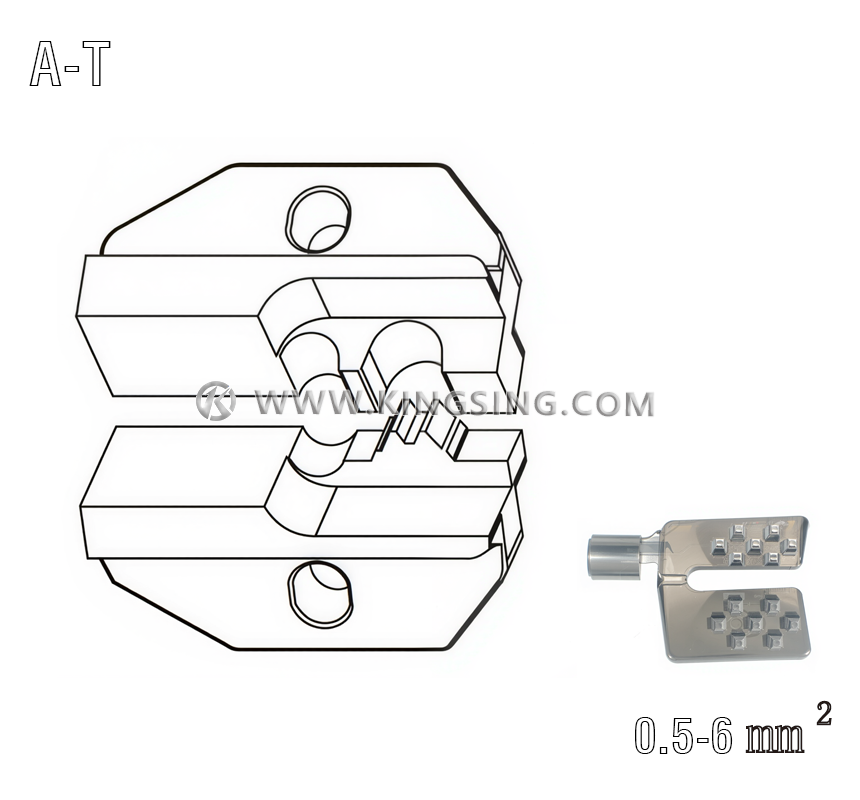

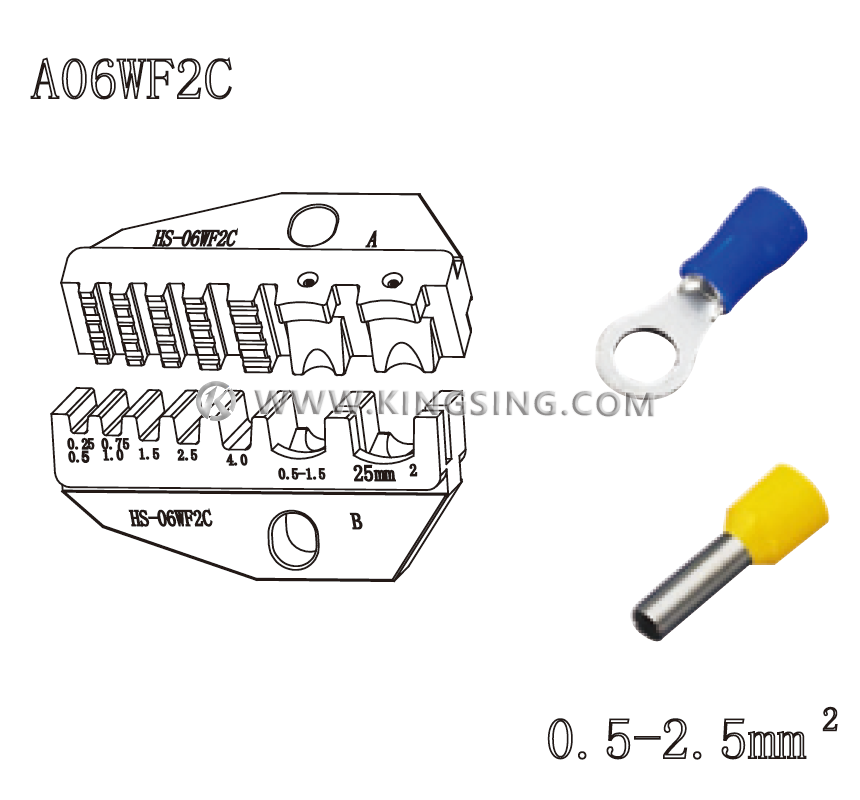

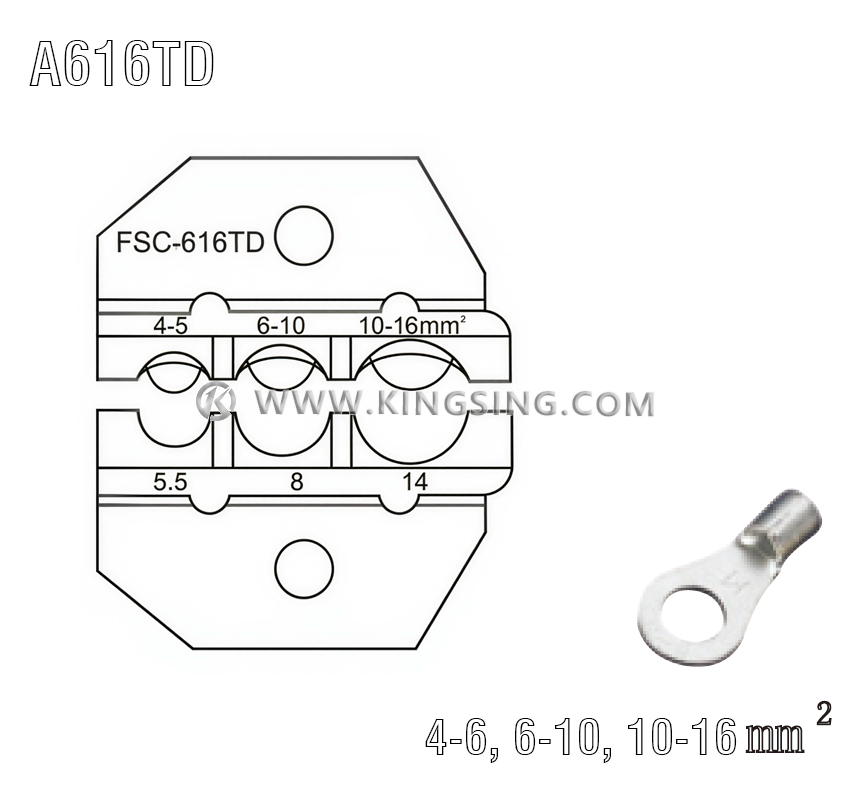

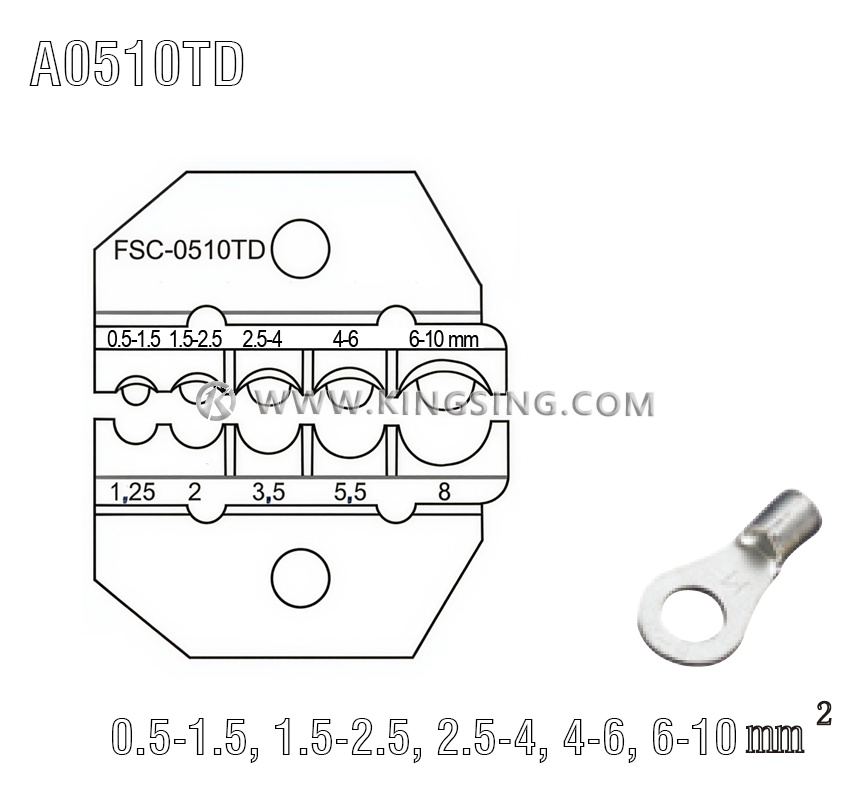

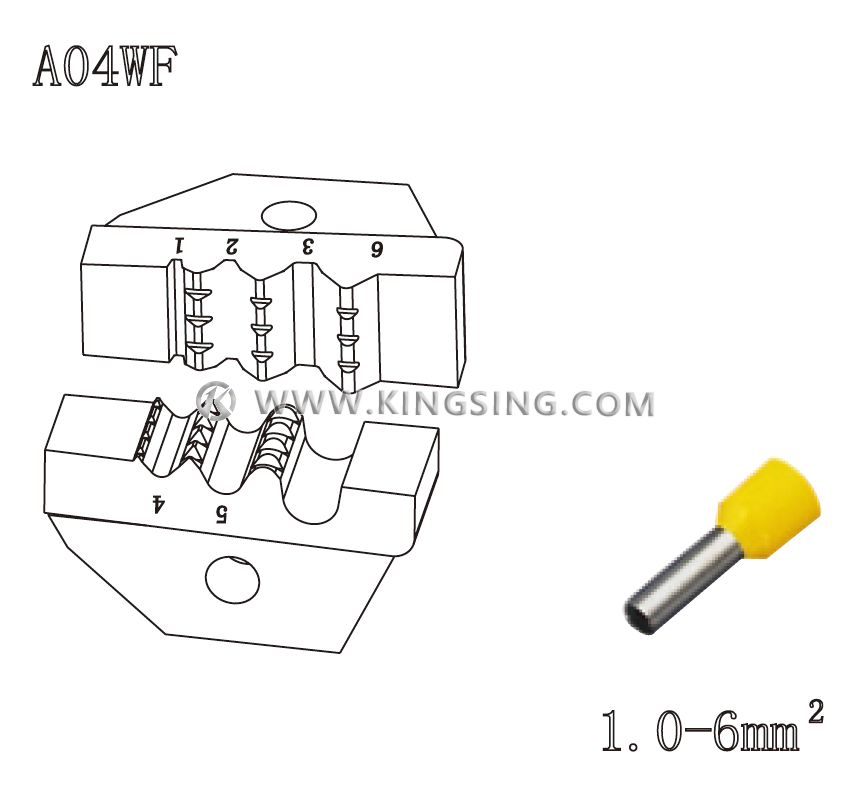

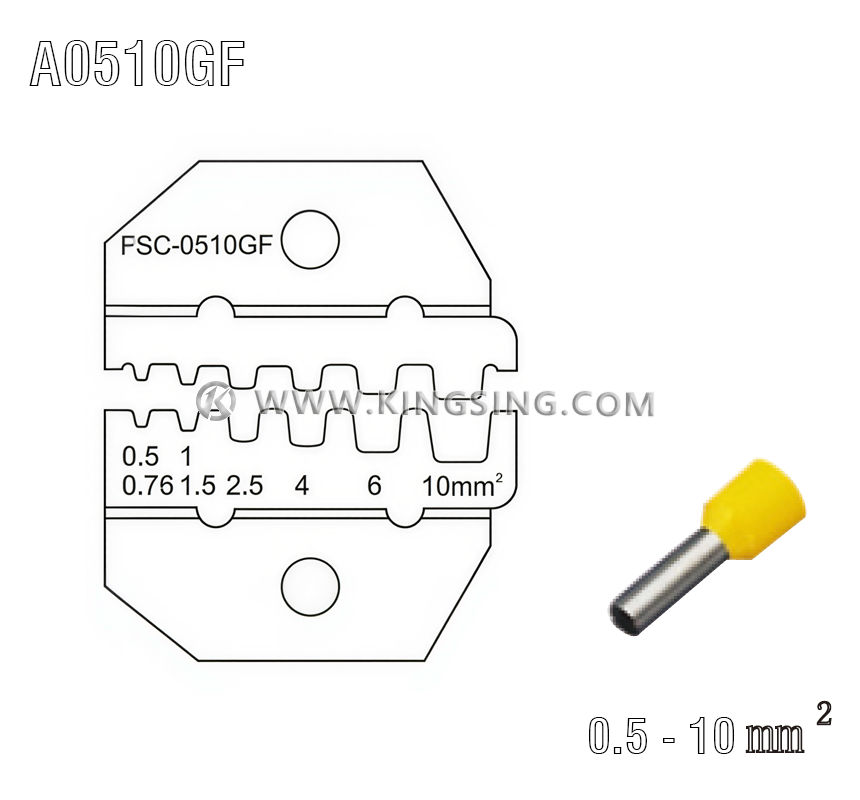

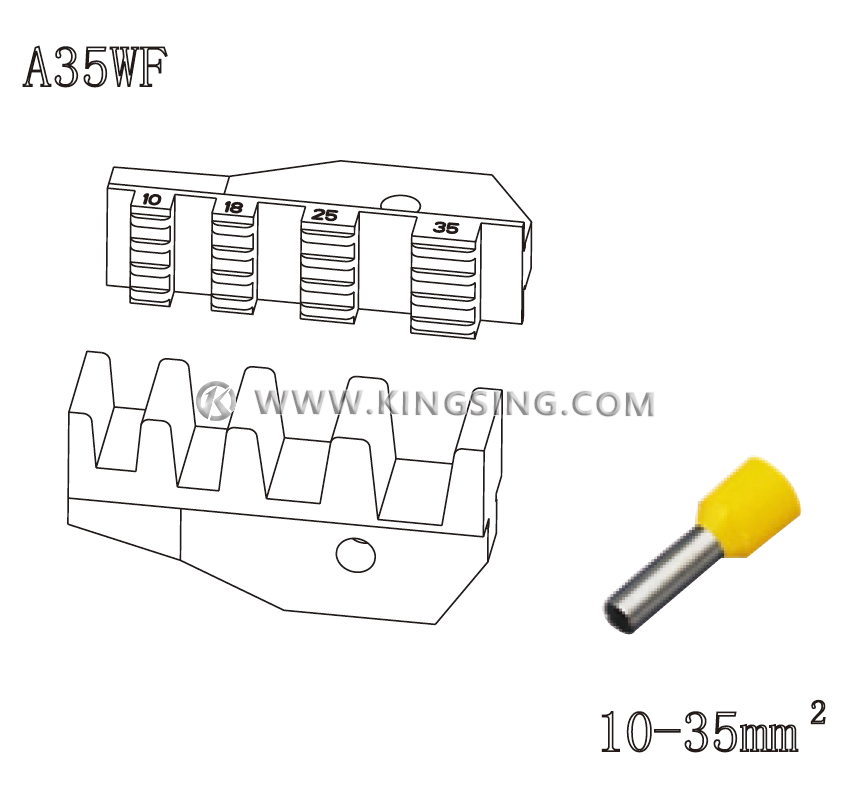

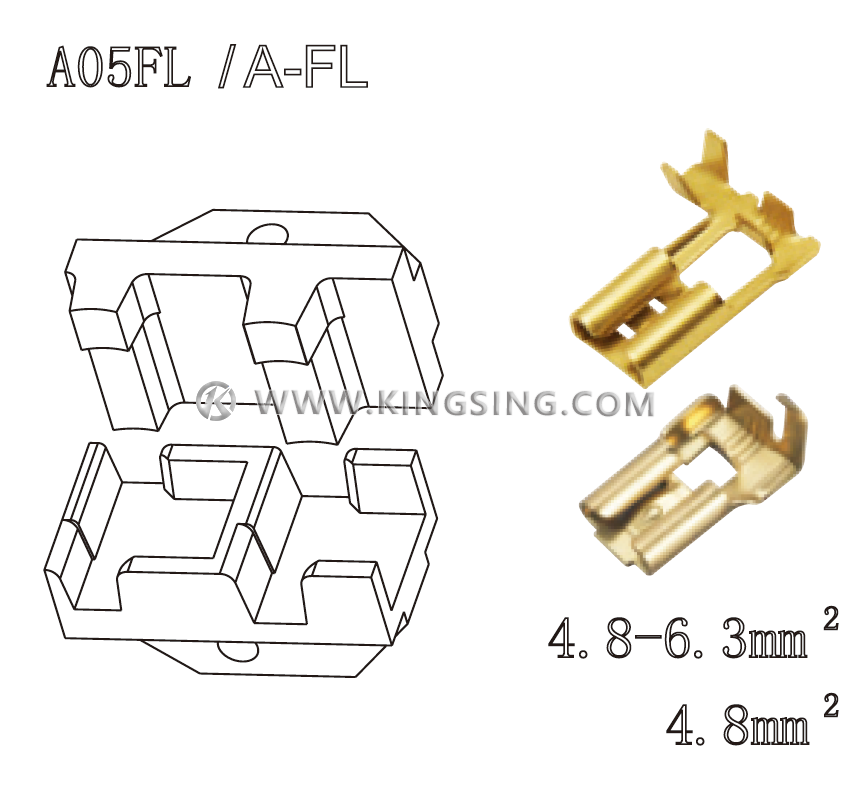

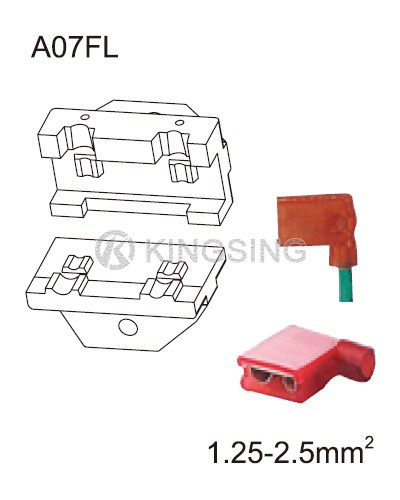

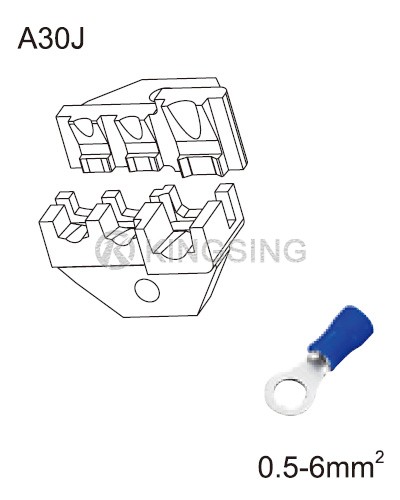

| Optional Die Set List | |||
|---|---|---|---|
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
