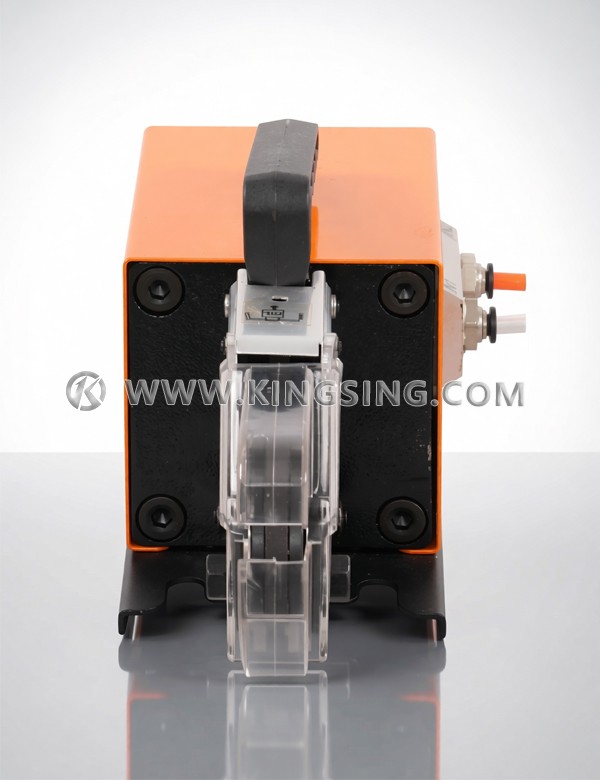

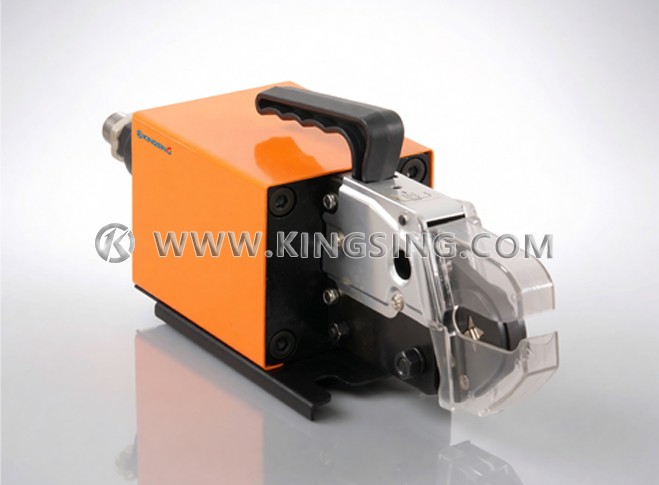

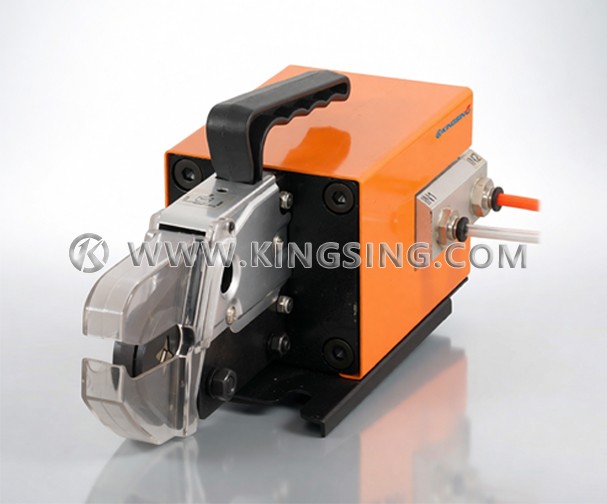

Tube-shaped Terminal Square Free Mold Change Crimping Machine

  • Model:KS-T805
  • Net. Weight:
  • Dimension:

This is a pneumatic crimping machine for tubular insulated terminals, which can work without being connected to electricity and connected to an air source. It uses a square change-free crimping die, which can flexibly crimp various tubular terminals of different sizes without changing the die. This machine is suitable for crimping tubular insulated terminals of 0.25~6mm2. The crimping size can be adjusted steplessly and has a wide range of applications.

Download: (1)

Terminal Type: tubular insulated terminal

Applicable wire diameter: 0.25~6mm2

Crimping force: 13.5KN

Crimp Shape: square

Terminal size: L2≤12mm


Air pressure: 0.6~0.8Mpa

Net weight: 5.5kg

Dimensions: 260*120*140mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
