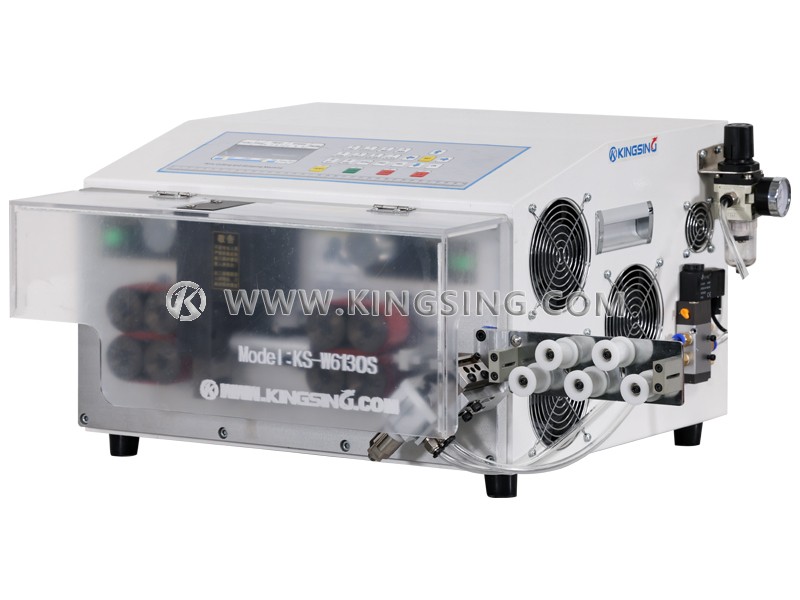

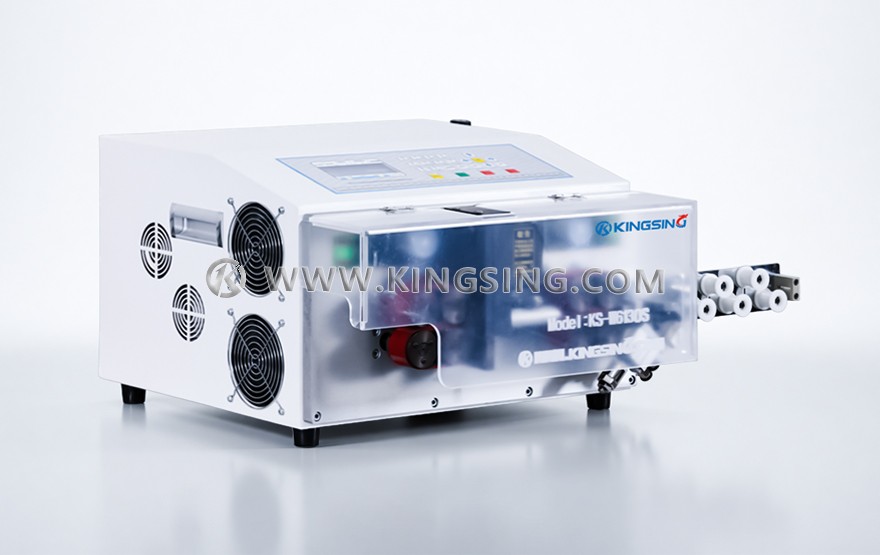

KS-W6130S is especially designed for cutting, slitting and stripping functions;
The moving parts are driven by step motors, ensure the cutting and stripping accuracy;
With program storage function, it can store up to 100 groups of programs.
It has automatic conduit jumping function, which means the conduit can jump higher to increase wire end stripping length;
This machine can both cut, slitting, full strip and middle strip. The stripping mode can be freely set. For example, it is possible to perform two-head full stripping or half-stripping, one-head full-stripping and one-head half-stripping, only stripping head not stripping tail.
Main Functions: Cutting, stripping, slitting
Max. Cutting Length: 999999mm
Cutting Accuracy: ±(0.5+0.002×L)mm (L=cutting length)
Air Pressure: 0.5~0.7Mpa
Power Supply: AC220V 50/60Hz
Net Weight: 73.5KG
Power Rate: 1.2KW
Dimension(L×W×H): 770×580×340mm(include wire straightener)
Note：
The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
