This is an automatic telfon tape wrapping machine, the operator only need to put the screw thread into the working position, then it will automatically wrap the teflon tape. One machine can be used for a variety of products with different diameters, and the adjustment is simple.
We recommend using our boxed raw ptfe tapes, which are specially developed for this machine and can guarantee stable work. The raw material purchased in the market cannot be directly used in this machine. If you have to use your own raw material, we can customize an additional raw material installer unit according to your tape size.
Color touch screen operation interface, intuitive and easy-to-understand parameter settings; High-speed servo motor, each cycle time is only about 3 seconds, which can greatly save labor.

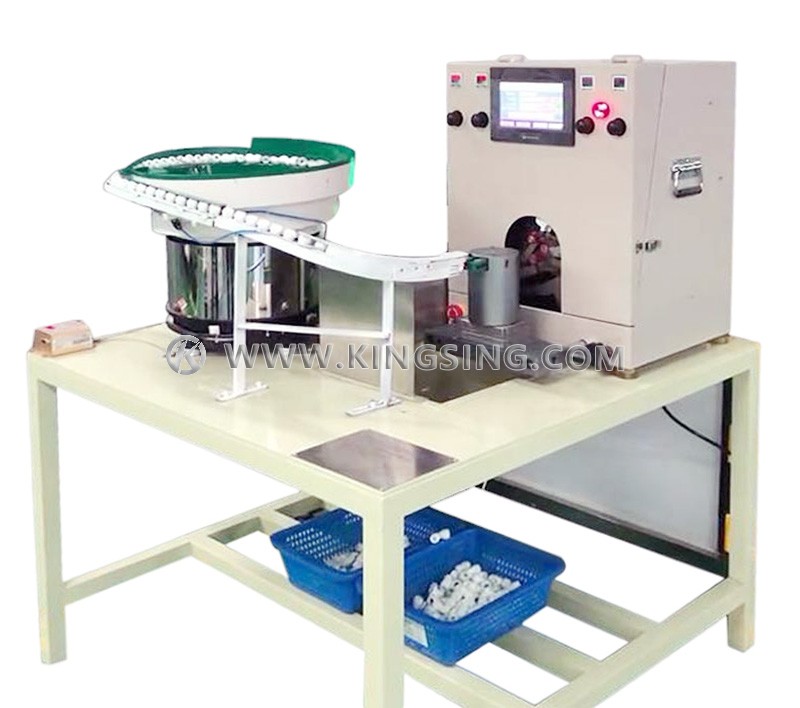

When the product is single and the output requirements are very high, the optional vibrating plate feeding system can be selected, it is usually suitable for smaller parts. The feeding system is customized according to your samples, one machine is only suitable for one product.
| Model | KS-A560-1 | KS-A560-2 |
| Available Size Range | 1/8" ~ 1.5" | 1/8" ~ 2.0"(Customizable) |
| Tape Width Range | 5~14mm | |
| Circle Time | 6~7s/pc | 3~5s/pc |
| Air Source | 0.5~0.8Mpa | |
| Power Supply | 220V 50/60Hz | |
| Net. Weight | 55kg | 60kg |
| Dimension | 350×420×510mm | 400×450×590mm |
PTFE Tape Consumables:
| Model | KS-5D | KS-7D | KS-10D | KS-14D |
| Tape Width | 5±0.5mm | 7±0.5mm | 10±0.5mm | 14±0.5mm |
| Tape Length | 35m | 50m | 60m | 60m |
| Thickness | 0.1±0.02mm | |||
| Density | 1.2±0.1g/cm3 | |||
| Tensile Strength | ≥6Mpa | |||
| Break Elongation | ≥50% | |||
| Ingredient | 100% PTFE | |||
| Standard | QB/T 4008-2010 | |||
 | ||||
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
