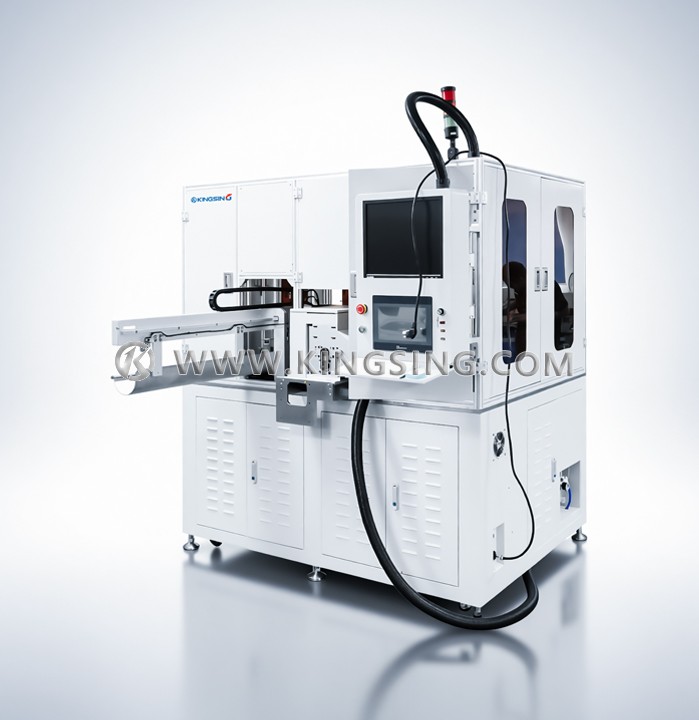

Automatic Coaxial Double-headed Crimping Single-head Soldering Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

1. Deep integration of automation, informatization and intelligent manufacturing;


2. High security, high reliability and high operability;


3. It can be connected to the back-end welding plate and automatic assembly machine.


Cutting capacity: A: single-end single-end dipping tin work: 50-900mm


                            B: Double-head crimping work: 50-300mm


Processing diameter: 0.81-1.78mm


Cutting depth setting unit: 0.01mm


Equipped with terminal machines according to customer needs (1-4.5 generation terminals are available)


Equipment utilization rate: ≥95%


Working pressure: not less than 0.5Mpa


Working voltage: AC220V±10V


Yield rate: ≥98%


Dimensions: 1600*2000*2100mm


Total power of equipment: 4.5KW


Weight: 1500kg


Production efficiency: 850-1150PCS/H (depending on the stripping length)
