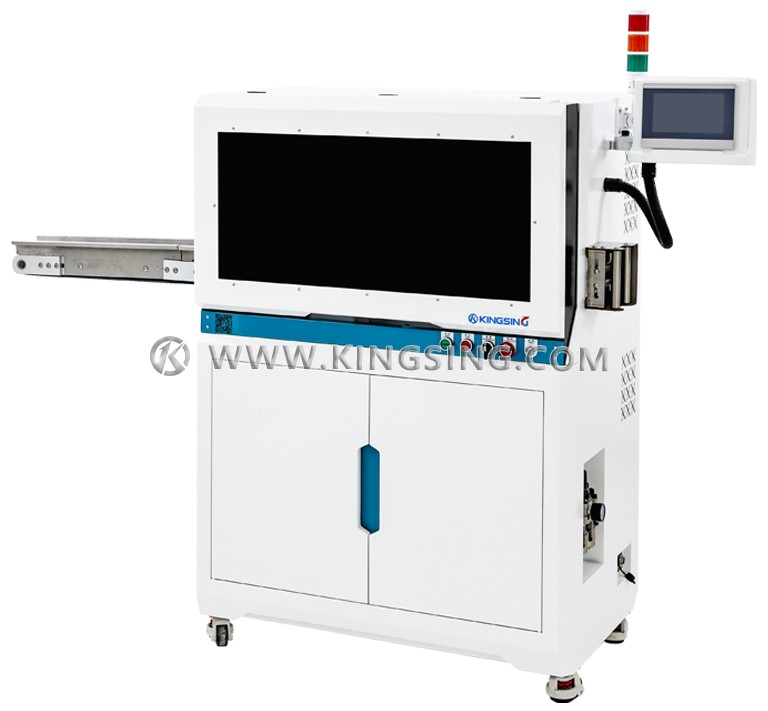

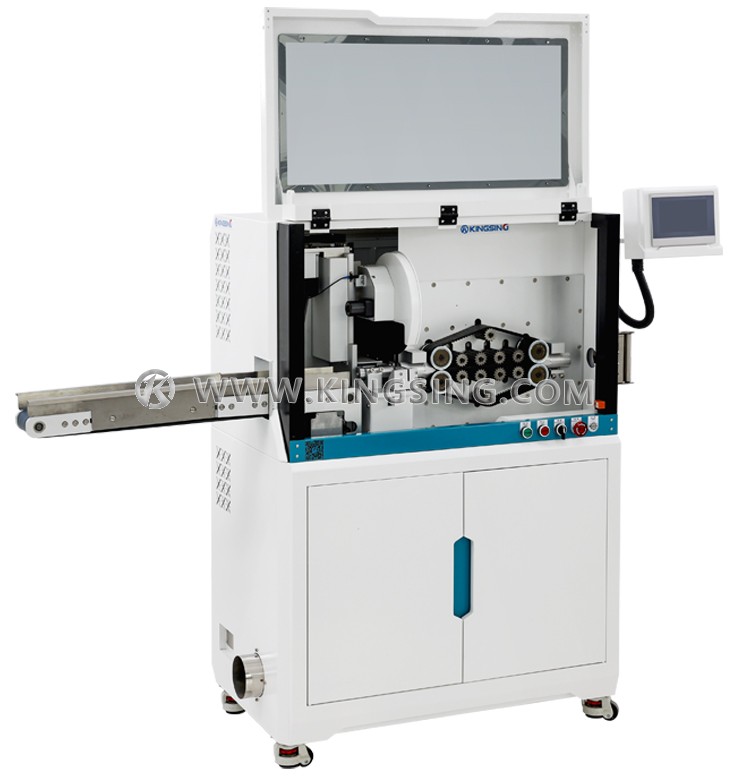

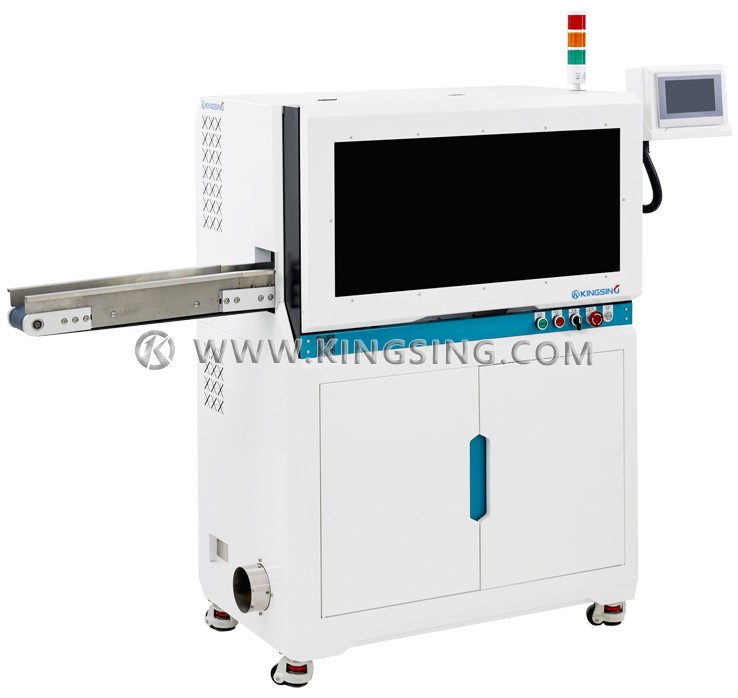

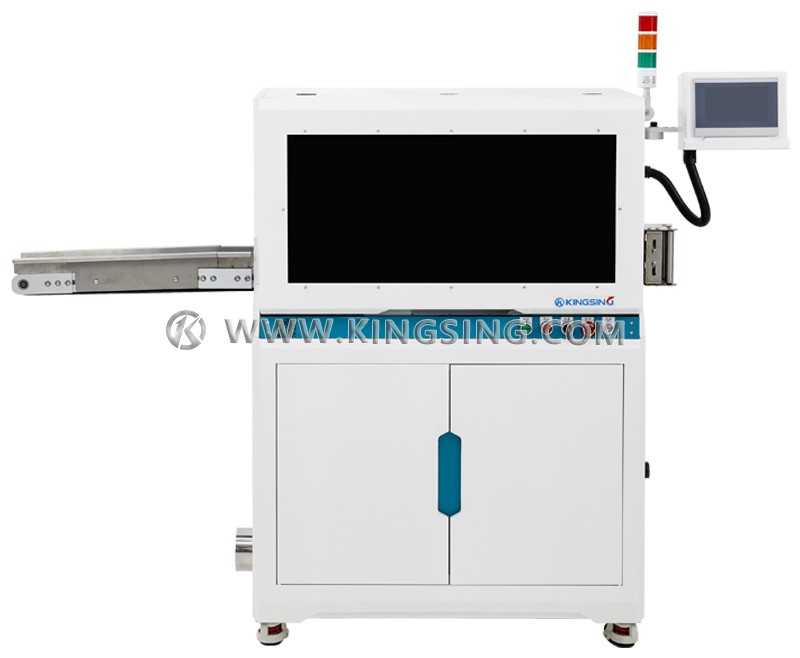

Saw Blade Tube Cutting Machine

  • Model:KS-P145R
  • Max. Width:
  • Blade Type:
  • Net. Weight:
  • Dimension:

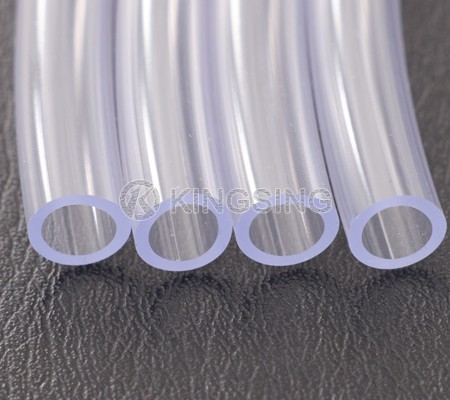

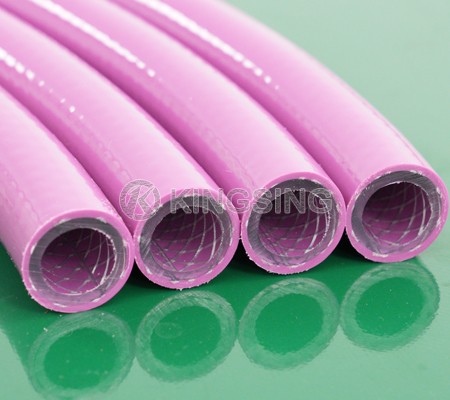

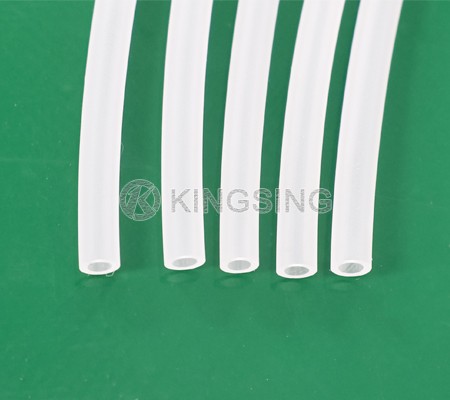

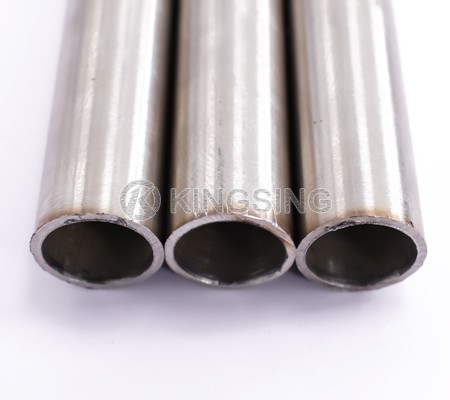

  • KS-P145R: a state-of-the-art fully automatic pipe sawing machine engineered to precision. Harnessing the power of a high-speed rotating saw blade, the KS-P145R effortlessly cuts through tough materials, including stainless-steel hoses, corrugated tubes, PVC pipes, and more. Its adjustable saw blade speed ensures optimal cutting efficiency, delivering clean and polished edges with every cut.

  • Designed with belt feeding technology, the KS-P145R maximizes stability and accuracy during operation. The ample contact area between the belt and the tube minimizes slippage, guaranteeing consistent and precise feeding. Additionally, the integrated conveyor belt system at the discharge port swiftly transports finished products, streamlining workflow and enhancing productivity.

  • Experience unparalleled performance and reliability with the KS-P145R - setting the standard for excellence in automated pipe sawing solutions.

Download: (1) (2)

Pipe Diameter: Ф5-Ф40mm (depends on the pipe material)

Blade Type: Saw blade

Cutting Length: Max.9999.9mm

Cutting Accuracy: ±Lx 0.1mm (L=cutting length)

Speed: 1200 pcs/hour(Depends on cutting length)

Power Supply: 220V/50Hz

Power Rating: 1200W

Program Memory: Max.100 groups of programs

Air Pressure: 0.5-0.7MPa

Dimension(L×W×H): 2100*700*1300mm(82.68*27.56*51.18in)

Net Weight: 280KG(617.29lbs)

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
