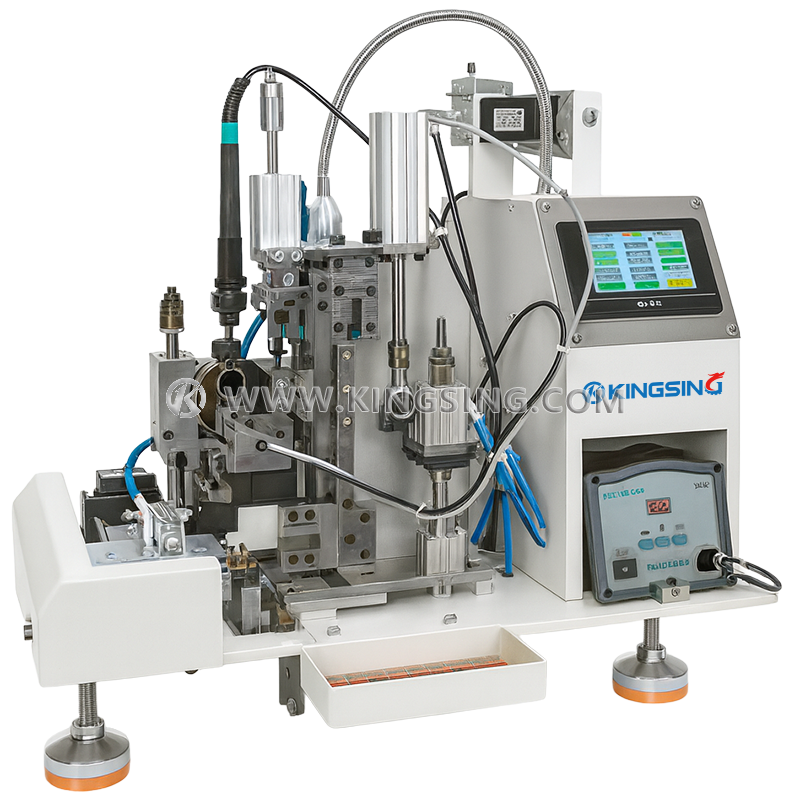

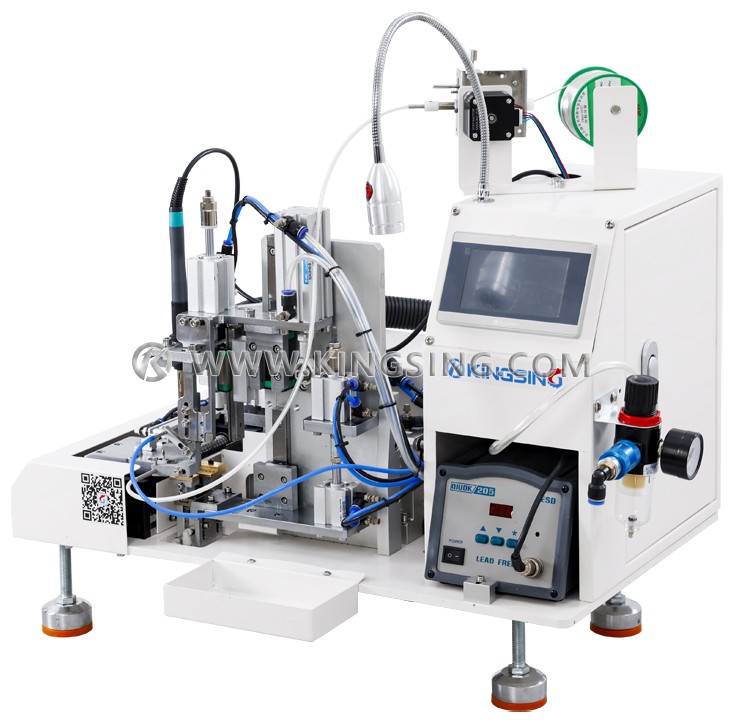

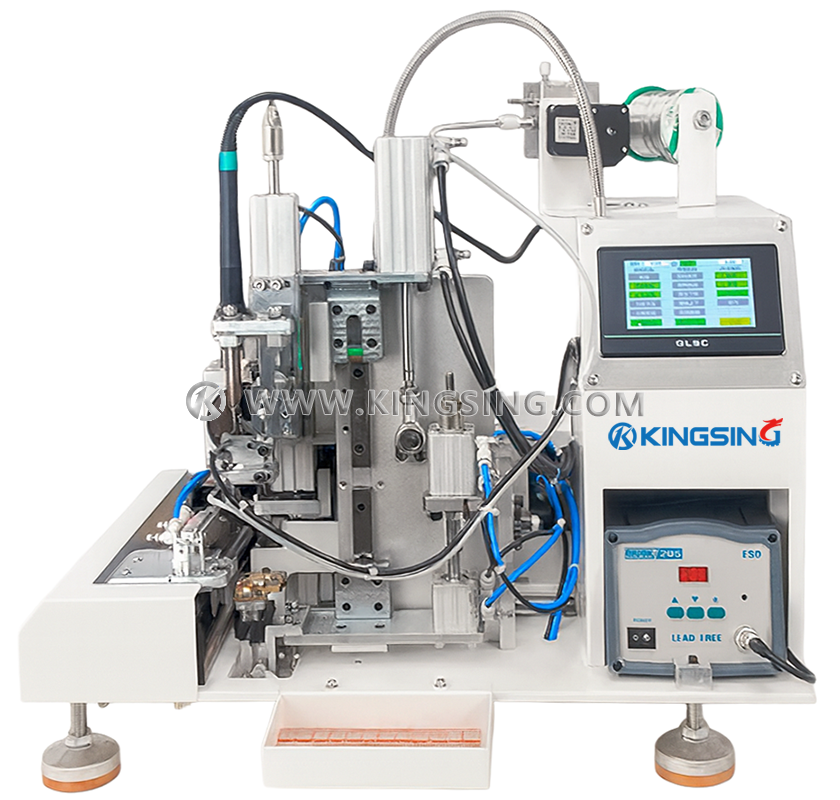

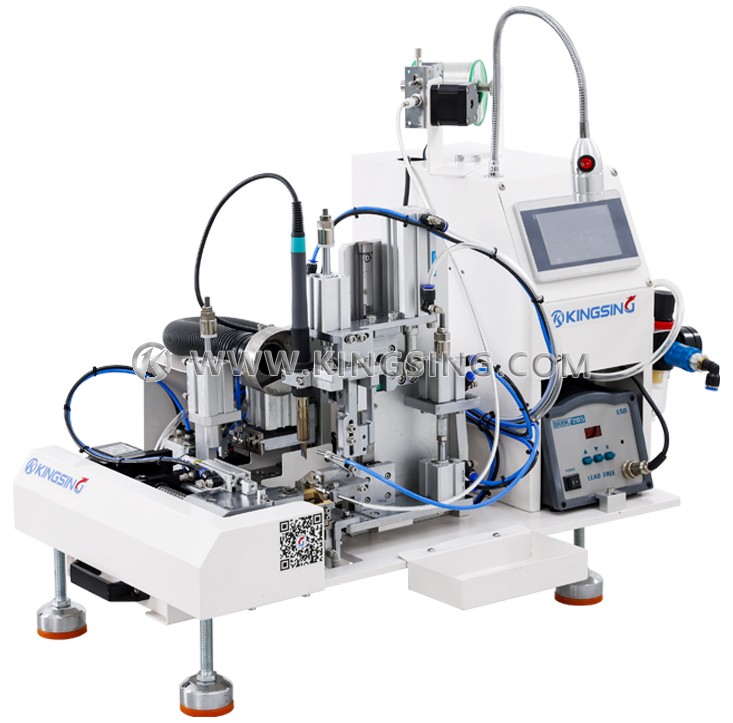

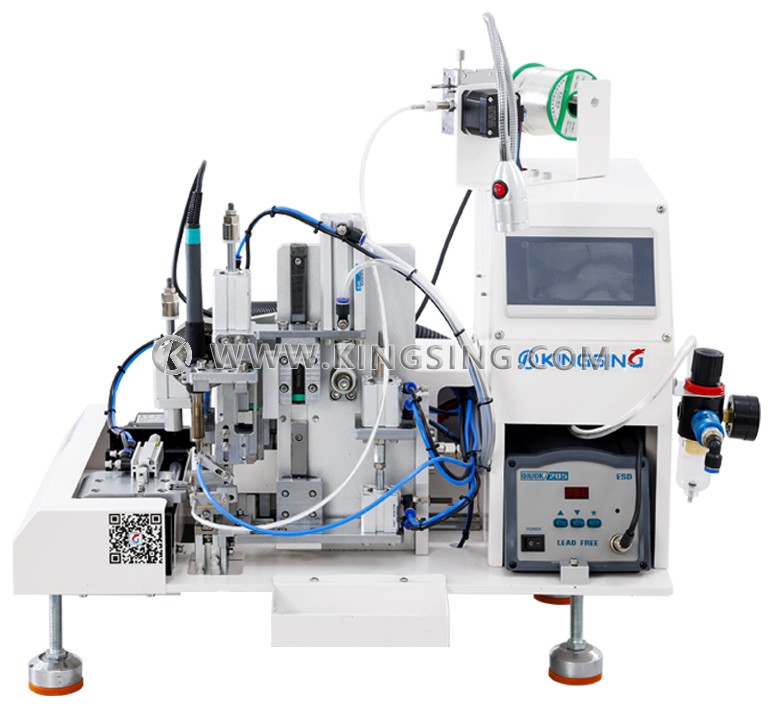

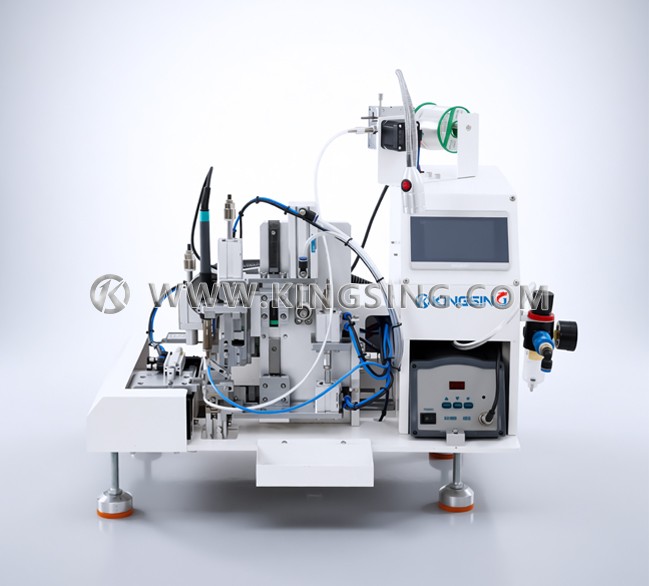

Semi-automatic Wire Stripping and Soldering Machine

  • Model:KS-W23M
  • Net. Weight:
  • Dimension:

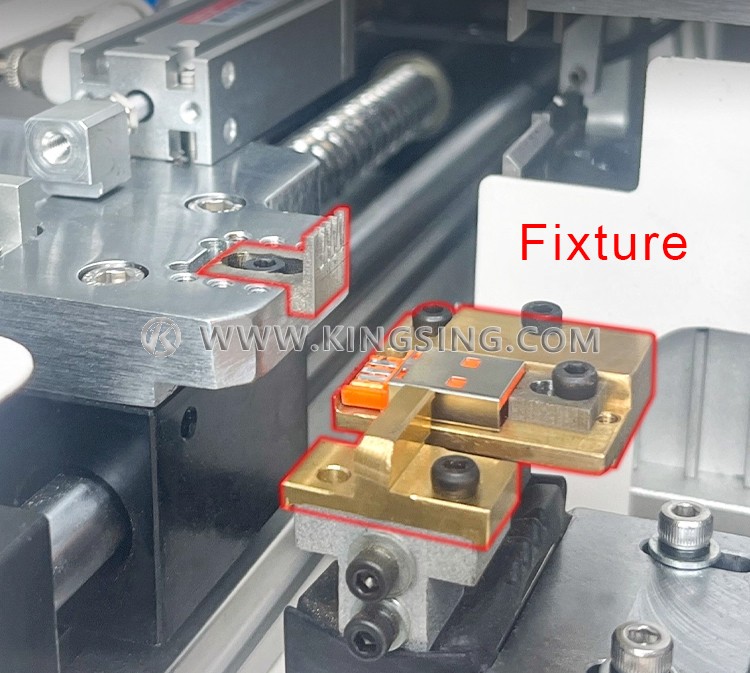

KS-W23M is a connector and wire soldering machine, set wire clamping, pulling, stripping, soldering in one, the operator only needs to fix the wire and connector on the special fixture, step on the footswitch to automatically run, the stripping and soldering parameters can be adjusted in the screen, the operation is simple and convenient.

  • Robust & reliable;

  • The operation is simple, the operator can get started quickly without any training;

  • Excellent price/performance ratio:

  • Adopts MCU and touch screen control system, the stripping and soldering parameters can be set on the screen directly;

  • With teach operation function, convenient for the debugging of the machine.

Download: (1) (2)

Main Functions:Wire cutting, stripping, tin soldering

Speed:5-6S/PCS (Excluding the manual loading time)

Power Supply:220V/ 50Hz

Power Rating:500W

Air Pressure:0.5-0.7MPa

Heating Temperature:100-600℃

Work Temperature:0~40°C

Humidity:30%~80%RH (no condensation at 40℃)

Dimensions (L x W x H):720*560*410mm

Net Weight:28Kg

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
