Three Ends Double Wire Combined Crimping Machine

  • Model：KS-T333 series
  • Net. Weight：
  • Dimension：
Online Inquiry

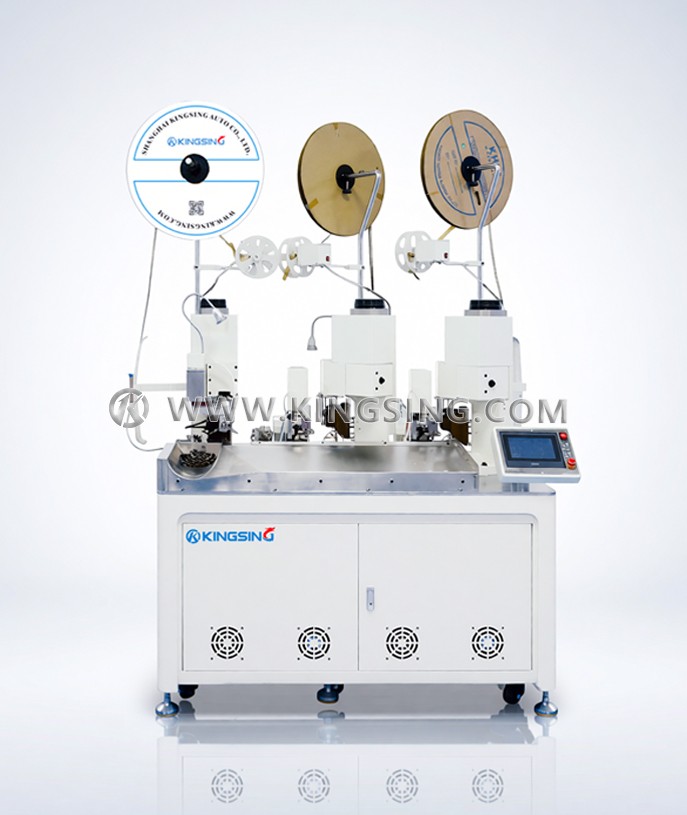

This economical fully automatic multi-wire combination crimping machine features two independent wire feeding mechanisms and three terminal crimping stations, enabling simultaneous processing of two wires with different diameters and crimping of three different terminals. The system performs comprehensive wire cutting, stripping, and terminal crimping operations, with the capability to combine one end of two wires into a single terminal while independently crimping different terminals at the other ends.

Equipped with an innovative built-in rotation mechanism, the machine can rotate the combined wires 90 degrees after merging, allowing for flexible crimping configurations including side-by-side or stacked arrangements. This advanced feature provides exceptional versatility for complex wire harness assembly requirements and ensures optimal terminal positioning for various connector specifications.

Built with modular flexible design principles, this machine adapts seamlessly to diverse product requirements. Each functional module operates independently through programmable controls, allowing operators to disable one wire channel and operate as a standard dual-head automatic terminal machine when needed. Terminal changeovers require only die replacement, maximizing production flexibility and eliminating machine downtime between different product runs.

multi-wire combination crimping
ModelKS-T333EKS-T3334
Main FunctionTwo-wire combination crimping, the other two wire ends crimping two types of terminalsFour-wire combination crimping, the other 4 wire ends crimping 2 types of terminals
Applicable Wire DiameterAWG 28–16 (0.1–1.5 mm²)
Cutting Length50–9999 mm (customizable)
Stripping Length≤10 mm (customizable)
Cutting Accuracy±(0.5+L×2‰) L = cutting length
Crimping Force2 tons (3 tons customizable)
Crimping Stroke30 mm (40 mm customizable)
Applicable TerminalsCross-feed terminals, direct-feed terminals, flag-shaped terminals
Operation InterfaceColor touch screen
Air Pressure0.5–0.8 MPa
Rated Power2500 W
Working Voltage220 V 50/60 Hz (customizable)
Net Weight420 kg
Dimensions1400×1300×2000 mm
Optional ConfigurationTerminal crimp force monitor, servo crimping station (programmable crimping height), conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, bulk terminal vibratory feeding system, customized solutions available upon request
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
