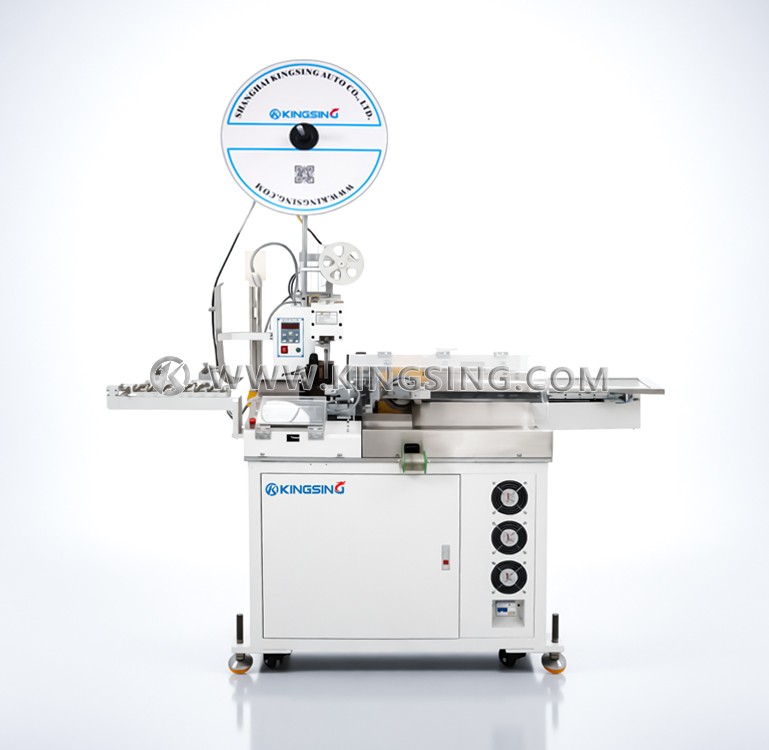

Automatic Wire Tinning and Crimping Machine

  • Model:KS-T1063
  • Net. Weight:
  • Dimension:
  1. This is a general-purpose fully automatic wire twisting, tinning and crimping machine, which integrates the functions of wire cutting, stripping, twisting, tinning, and crimping terminals. It can process 5 wires at the same time and has high production efficiency. It supports non-standard customization, for example, the function of splitting can be added to process double-combined wires, and the two ends of the double-combined wires can be divided longitudinally. It can also be equipped with a twisting function, which can twist 2 or more wires into twisted wires. For example, 4 wires can be fed at the same time, and each 2 wires can be automatically twisted together as a group.

  2. All motors adopt high-precision servo motors, and the components are made with precision. The cutter adopts positive and negative screw structure, and the stripping precision is high. Flux and solder wire can be added automatically, and the solder depth is stable. There is an automatic smoking device next to the tin stove, which can exhaust the smoke through the pipe. The terminal machine is integrally formed of ductile iron, with strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop.

  3. Adopting the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. When replacing a terminal, only the corresponding crimping die needs to be replaced. The machine has a wide range of uses. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  4. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

Download: (1)

Applicable wire: electronic wire, double wire, flat wire

Applicable wire diameter: AWG32~18 (0.02~1mm2)

Cutting line length: 10~650mm (can be customized according to requirements)

Wire delivery method: pull wire clip

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Stripping length: ≤8mm (can be customized)

Solder length: 0.5~8mm

Maximum pressure: 2T

Crimp stroke: 30mm (40mm can be customized)

Production efficiency: 5000~6000 pieces/hour (5 pieces at a time, length 100mm)

Operation interface: color touch screen

Optional functions: wire splitter, twisted wire function, terminal pressure monitor, etc.

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 410kg

Dimensions: 1280*680*1300mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
