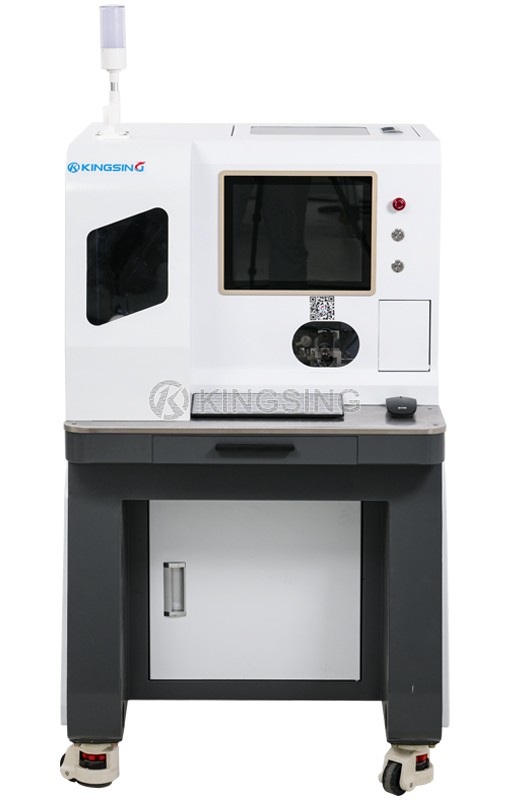

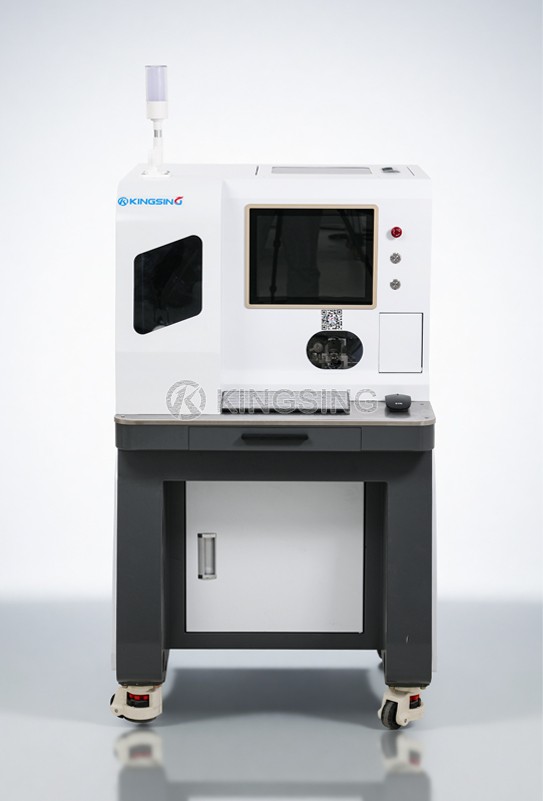

This automatic ferrule crimping and tube marking machine is specifically engineered for processing tubular insulated terminals with integrated functionality. The machine seamlessly combines wire stripping, conductor twisting, number tube printing, tube insertion, and terminal crimping operations into a single automated workflow.
Featuring advanced computer industrial control system, the machine enables customizable printing content for number tubes, with each line capable of displaying different information. The vibrating disc automatically feeds terminals, eliminating the need for pre-stripping wire ends. Operators simply position the wire end at the working station, and the machine automatically executes the complete sequence of stripping, twisting, printing, cutting number tubes, and crimping terminals.
The integrated twisting function effectively prevents copper wire displacement during terminal insertion, while the combined stripping and crimping process reduces operational steps and significantly saves labor costs. The machine accommodates terminals of various sizes through corresponding jig changes, providing exceptional versatility for different production requirements.
Equipped with an intuitive color touch screen interface, parameter settings are straightforward and user-friendly. Critical parameters including cutting depth, stripping length, and twisting force can be directly configured within the program. The built-in memory function stores stripping and crimping parameters for different products, enabling one-touch parameter recall when switching between wire types or terminal specifications.
| Applicable Wire | 0.5~4.0 mm² |
| Applicable Terminals | Tubular insulated terminals (aviation terminals customizable) |
| Stripping Length | 0~16mm |
| Terminal Size | L1≤7.5mm, L2≤12mm |
| Crimp Shape | Quadrilateral |
| Number Tube Cutting Length | 20mm (customizable) |
| Production Efficiency | 800~1000 pieces/hour |
| Working Voltage | 220V 50Hz (customizable) |
| Rated Power | 500W |
| Air Pressure | 0.5~0.8Mpa |
| Net Weight | 100kg |
| Dimensions | 730×760×1400mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
