Wire Stripping and Bulk Terminal Crimping Machine

This advanced bulk terminal crimping machine is specifically engineered for processing loose terminals with integrated wire stripping and crimping functions. It excels in crimping various closed barrel terminals including solid pin terminals, socket and pin contacts, ferrules, and pre-insulated terminals, while also accommodating open barrel terminal applications.

The integrated stripping mechanism features an innovative wire twisting function that simultaneously strips insulation and twists copper strands together, significantly enhancing the stability of wire insertion into closed barrel terminals and preventing strand separation or spreading during the crimping process.

The crimping unit is powered by a precision servo motor system, enabling accurate height control through programmable settings without manual screw adjustments. Custom crimping dies can be manufactured according to specific terminal requirements, such as four-point crimping dies for socket and pin contacts, where four crimping blades simultaneously compress toward the terminal center, delivering aesthetically pleasing results with secure, gap-free connections. Additionally, the machine supports multiple crimping methods including square crimping, hexagonal crimping, and upper-lower blade crimping, with specific crimping configurations customizable based on product requirements.

Socket & Pin Contact	Four-point Crimping	Upper & Lower Crimping

This machine supports multiple operating modes including inductive start, foot switch activation, and button switch control. When using inductive start mode, operators simply position the wire to trigger the limit sensor, and the machine automatically completes stripping, twisting, and terminal crimping operations, streamlining the entire process.

Safety is prioritized with a comprehensive protective enclosure surrounding the entire machine. Optional door-open safety features automatically trigger alarms and machine shutdown when the protective cover is opened, ensuring operator protection during operation.

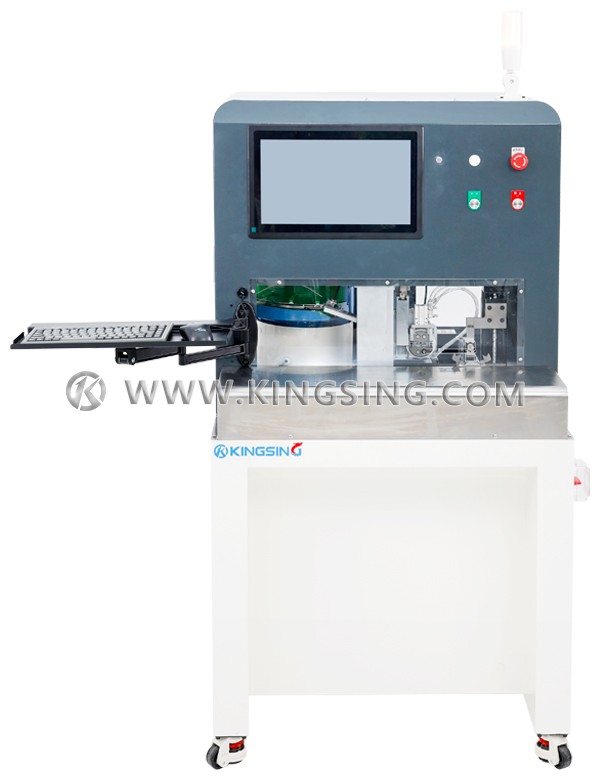

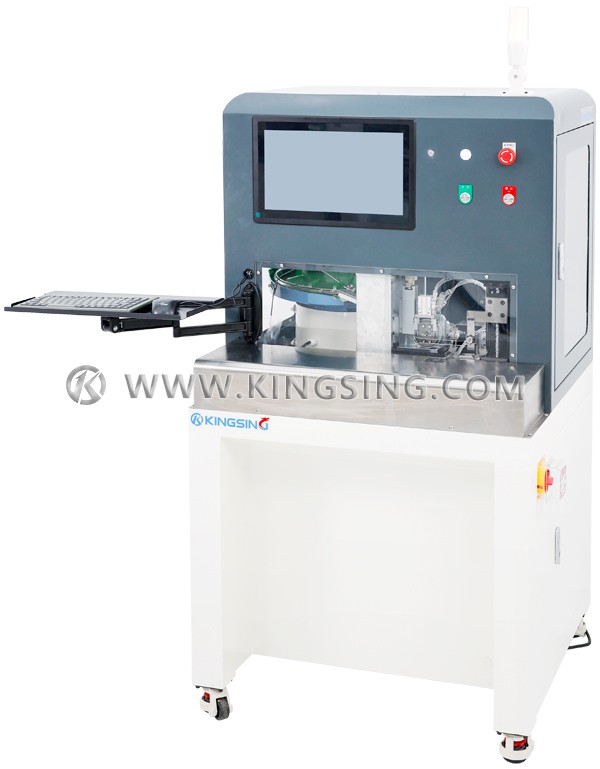

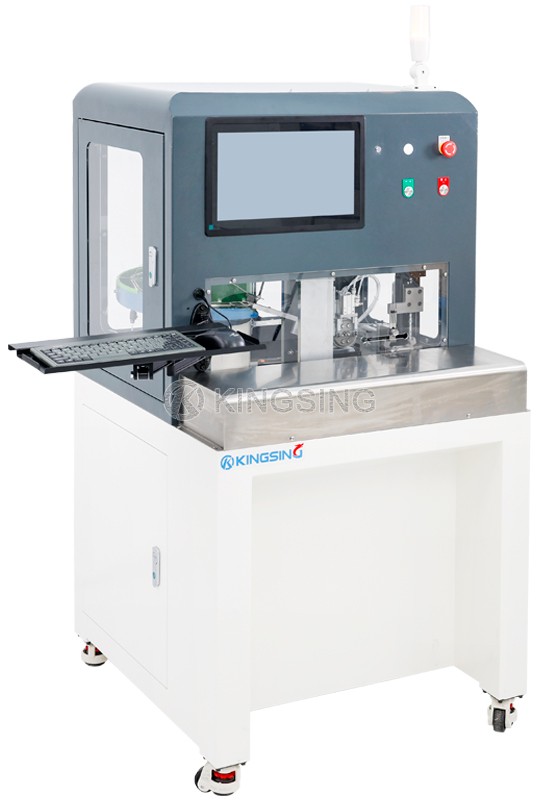

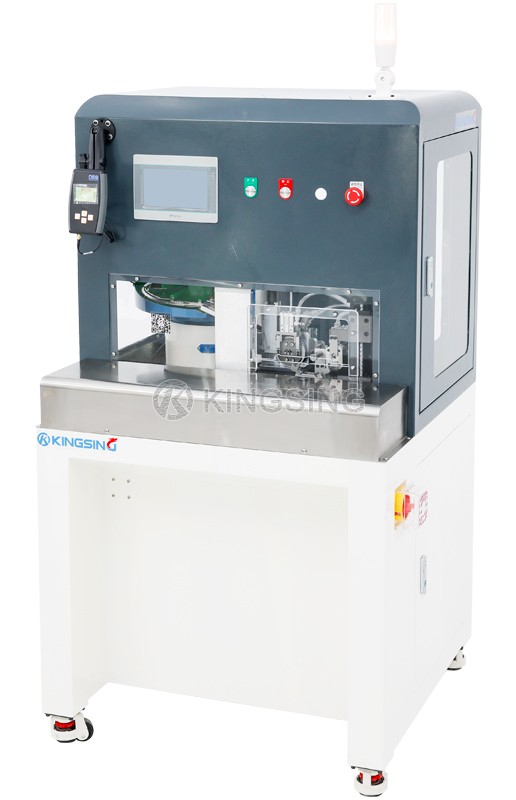

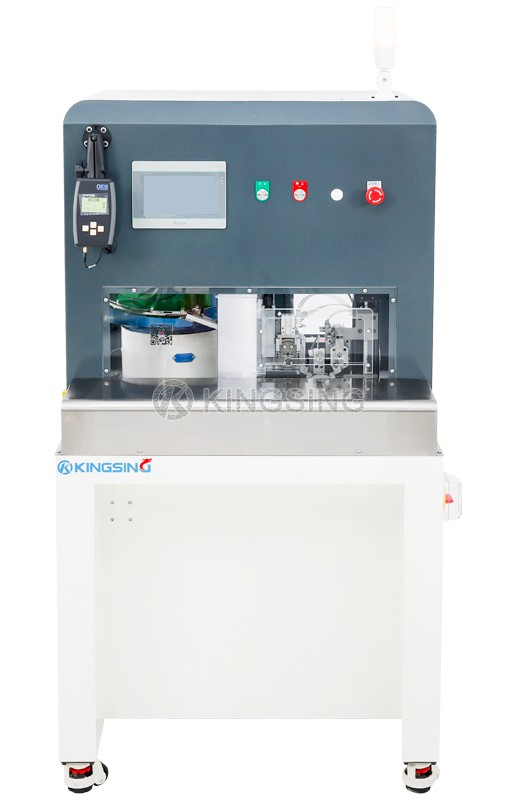

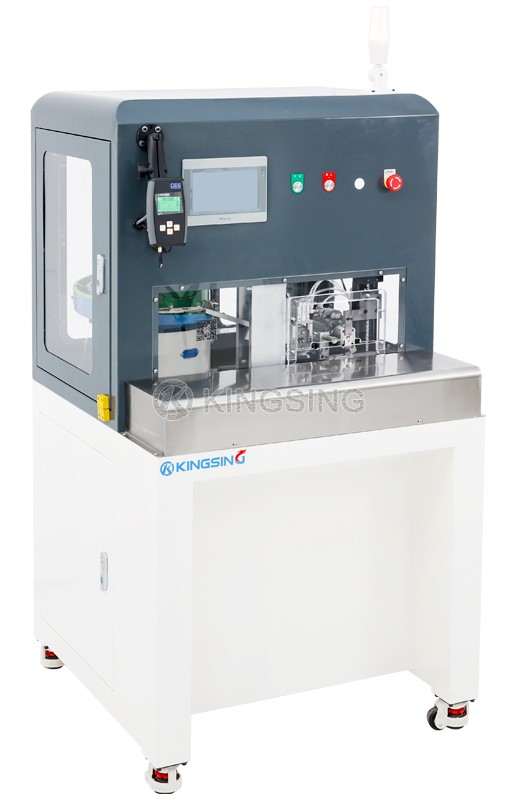

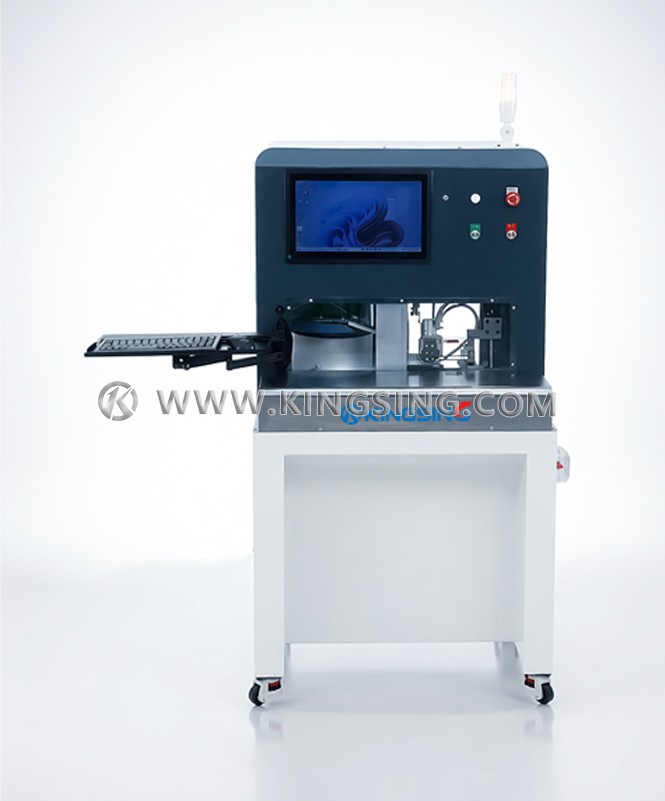

This series includes two model variants: a touchscreen version and a computer operating system version. Optional features include pressure monitoring systems and CCD vision inspection systems for enhanced quality control and process verification.
