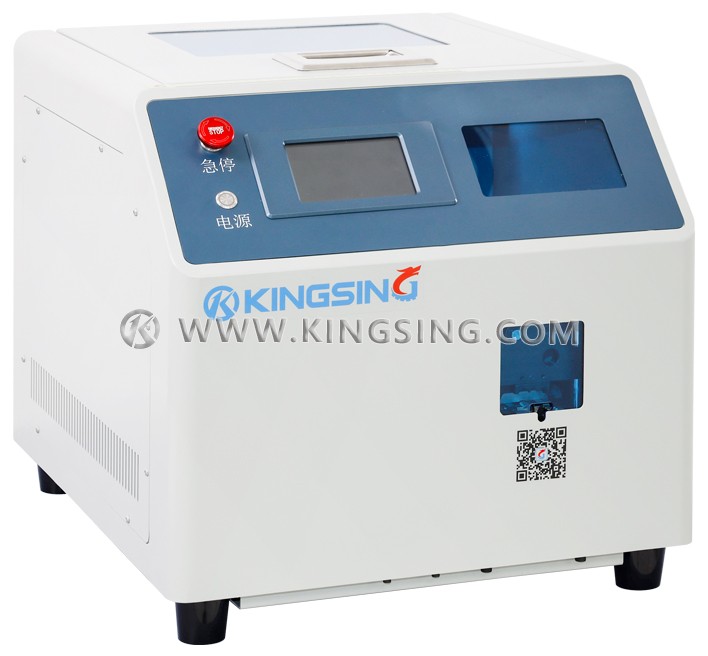

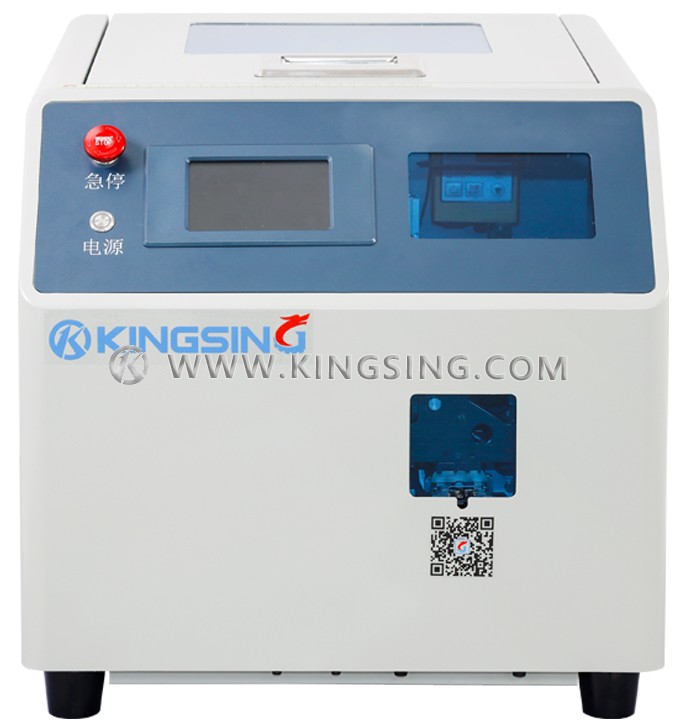

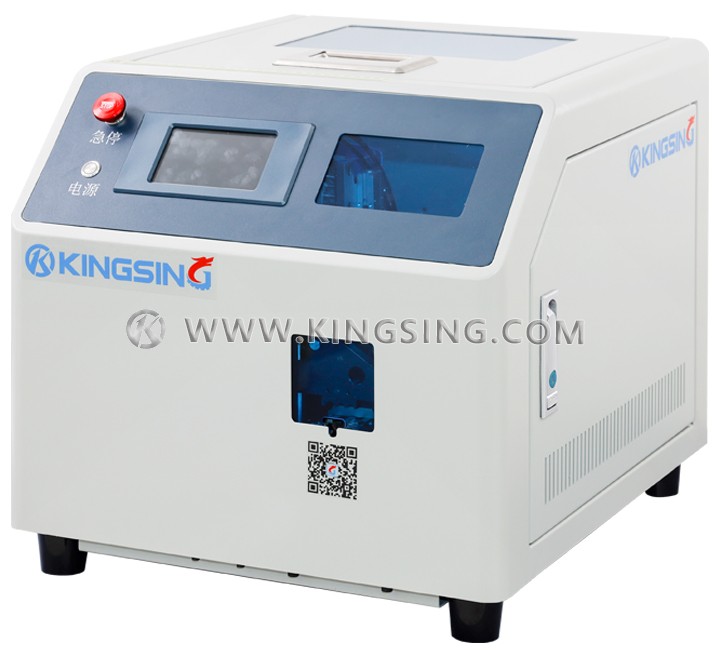

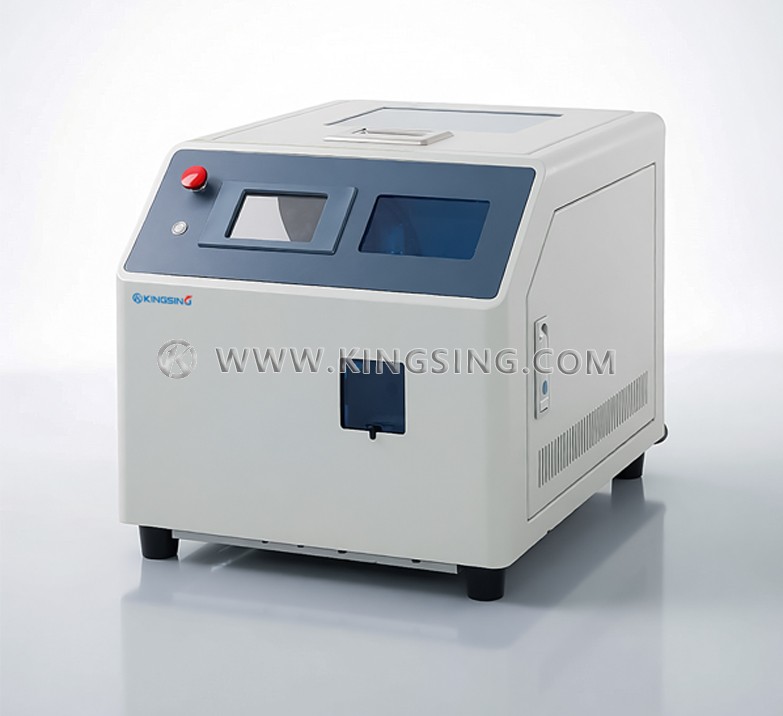

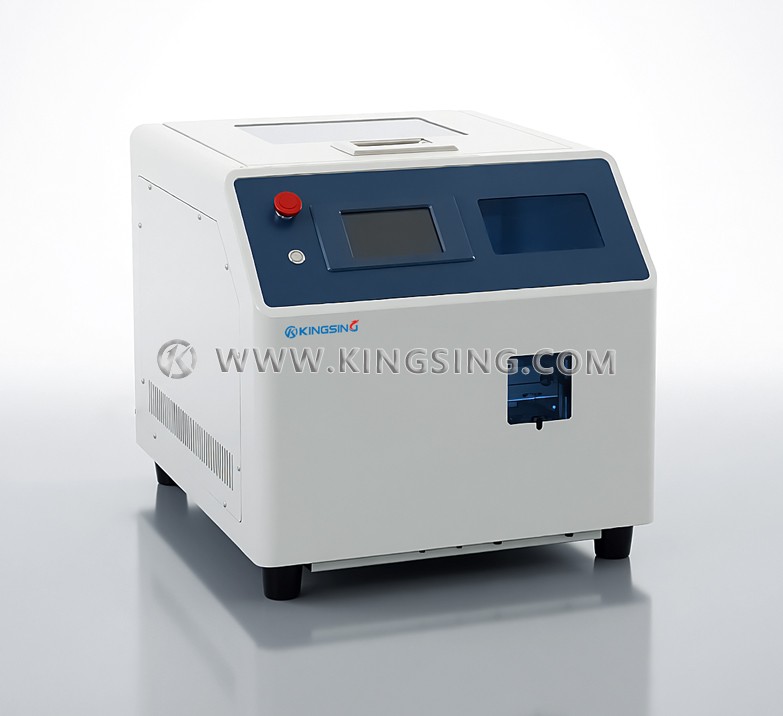

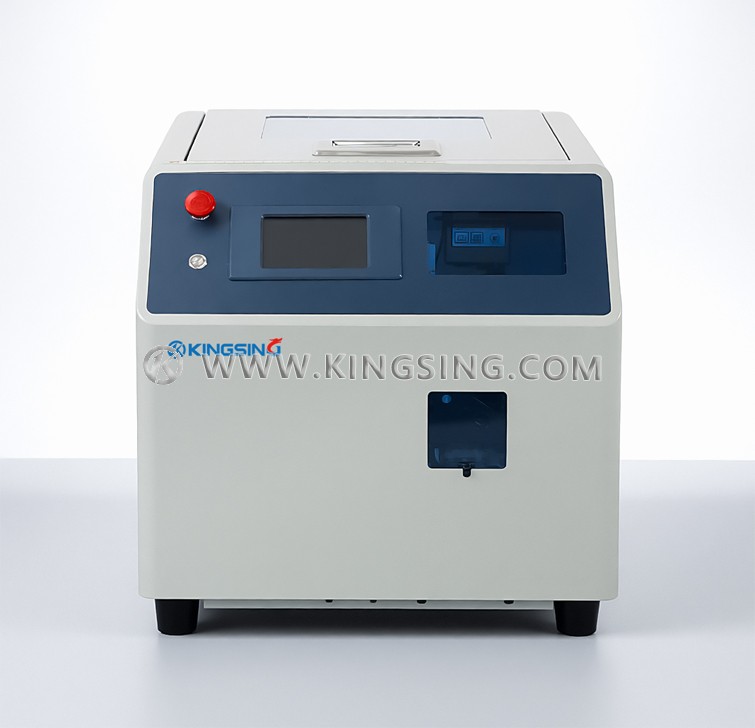

This automatic pre-insulated terminal crimping machine is specifically engineered for processing bulk U/O-shaped pre-insulated terminals with integrated micro vibration bowl feeding system. The versatile design accommodates different terminal sizes without requiring bowl replacement, streamlining production workflows.
The machine performs complete wire processing in a single automated sequence: wire stripping, copper wire twisting, and precision crimping, ensuring stable and precise processing for electric control cabinets, electric meters, power distribution boxes, household appliances, automotive wiring harnesses, and more.
Operators simply insert the wire end into the processing position, and the machine automatically completes all operations while maintaining the wire in its original position throughout the process. With intelligent control and robust construction, this machine significantly improves productivity while ensuring consistent crimping quality.
The integrated wire twisting function prevents copper strands from spreading or tangling during terminal insertion, significantly improving product quality and yield rates. The advanced crimping system utilizes upper and lower blade compression technology, with each crimping tool set featuring multiple blade sizes for rapid switching between different terminal dimensions.

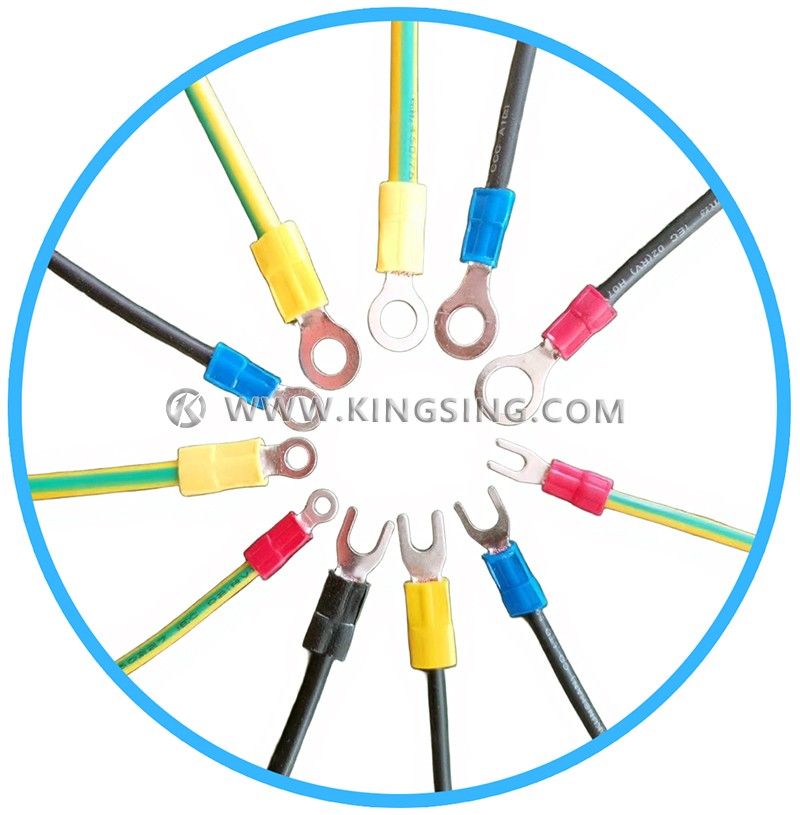

| Terminal Types | UT/OT Pre-insulated Terminals |
| Wire Size | 0.3 mm² – 6 mm² |
| Crimping Method | Upper and lower blade compression |
| Crimping Drive | Pneumatic cylinder |
| Stripping Length | Max. 18 mm |
| Capacity | 1000 pcs/hour |
| Inspection | Shortage of terminals |
| Power | AC 220 V 50/60 Hz (customizable) |
| Dimension | 540 × 570 × 520 mm |
| Net Weight | 70 kg |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
