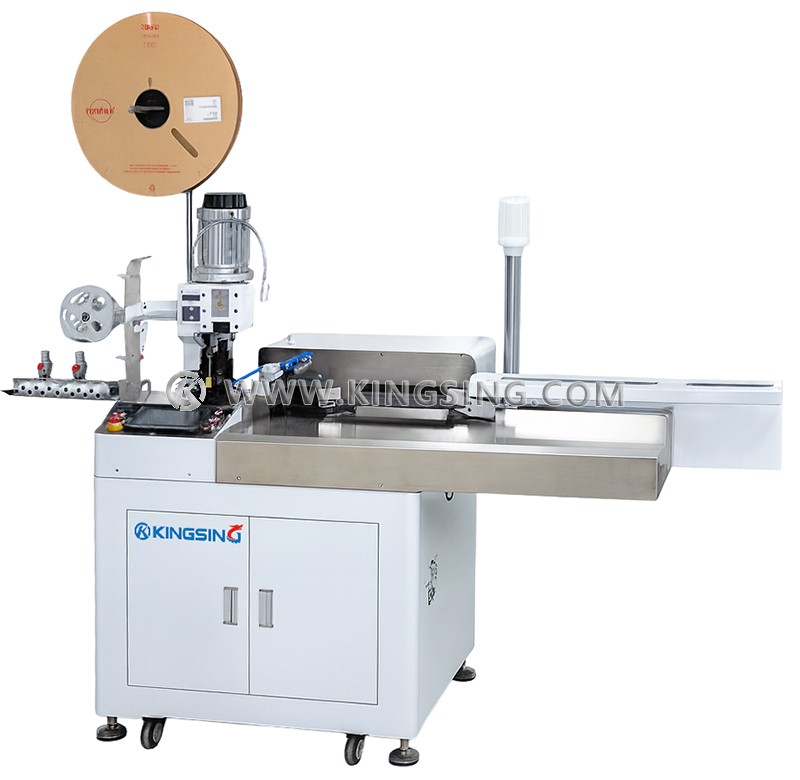

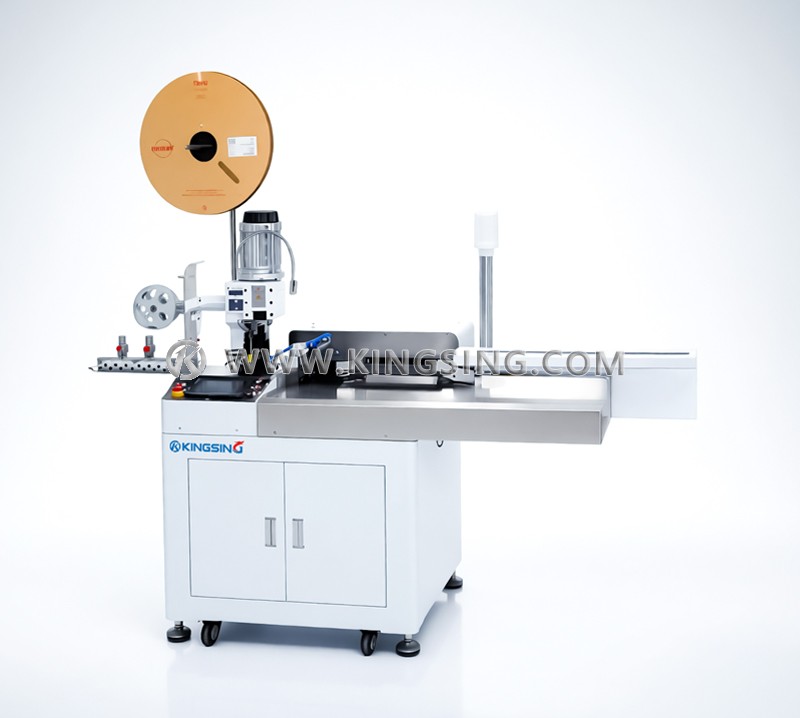

Fully Automatic Wire Crimping and Tinning Machine

  • Model:KS-T1066E
  • Net. Weight:
  • Dimension:
  1. This is an economical fully automatic wire twisting, tinning and crimping machine, which integrates the functions of wire cutting, stripping, twisting, tinning, and crimping terminals. It can process 5 wires at the same time, with high production efficiency. The machine is affordable and can greatly save labor costs. The cutting knife adopts positive and negative screw rod structure, and the peeling precision is high. Flux and solder wire can be added automatically, and the solder depth is stable. There is an automatic smoking device next to the tin stove, which can exhaust the smoke through the pipe.

  2. Adopting the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. When replacing wires and terminals, only the corresponding wire inlet conduit and crimping die need to be replaced. The machine has a wide range of uses. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  3. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time.

Download: (1)

Applicable wire diameter: AWG32~18 (0.02~1mm2)

Cutting length: 30~800mm (can be customized)

Wire delivery method: pull wire clip

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Stripping length: ≤10mm (can be customized)

Solder length: 0.5~10mm

Maximum pressure: 2T

Crimp stroke: 30mm (40mm can be customized)

Production efficiency: 4000~6000 pieces/hour (processing 5 wires at the same time)

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 250kg

Dimensions: 1600*600*1400mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
