Multifunctional 2-Sided Wire Terminating and Tin Dipping Machine

  • Model:KS-T1054
  • Net. Weight:
  • Dimension:

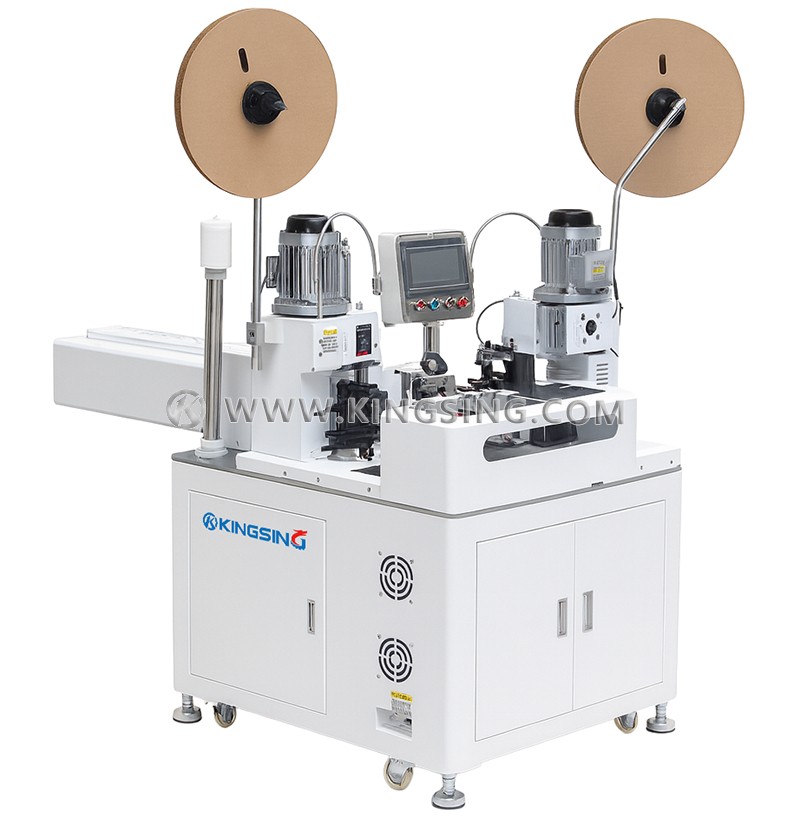

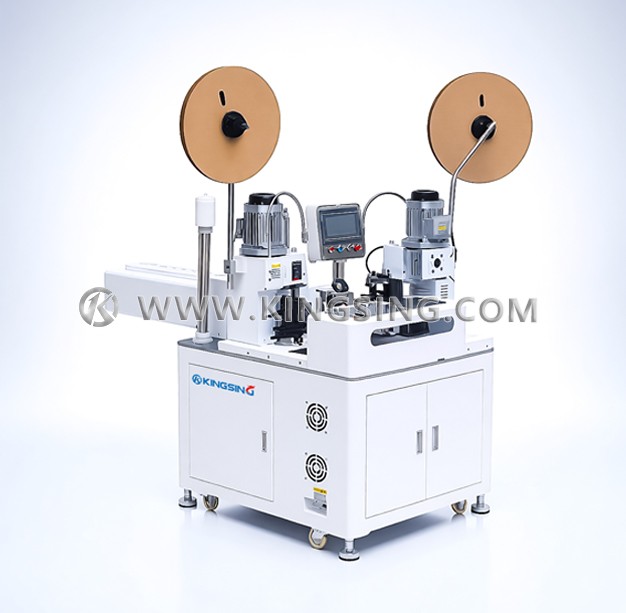

  1. This is a multi-functional fully automatic wire twisting and tinning terminal machine, which integrates functions such as wire cutting, wire stripping, wire twisting, tinning, and crimping terminals. It can process 5 wires at the same time and has high production efficiency.This machine not only supports twisting and tinning at one end, crimping terminals at the other end, but also supports crimping terminals at both ends, which can be used in one machine to save costs. Twisted wire function can be selected, and 2 or more wires can be twisted together to form a twisted wire. It can also be equipped with the function of splitting wires, which is used to process double-combined wires or flat wires, and the two ends of the flat wires can be automatically divided into split wires.

  2. The machine contains 3 sets of servo motors, and the parts are made with precision. The cutter adopts the positive and negative screw structure, and the stripping precision is high. Flux and solder wire can be added automatically, and the dipping depth is stable. There is an automatic smoking device next to the tin stove, which can exhaust the smoke through the pipe.

  3. Adopting the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program. When replacing a terminal, only the corresponding crimping die needs to be replaced. The machine has a wide range of uses. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products. The color touch screen operation interface, the program memory function can save the processing parameters of different products in the database, and when switching products, the corresponding processing parameters can be called out with one key, saving debugging time.

Main functions: double-head crimping terminal, single-head crimping terminal with tin on the other end

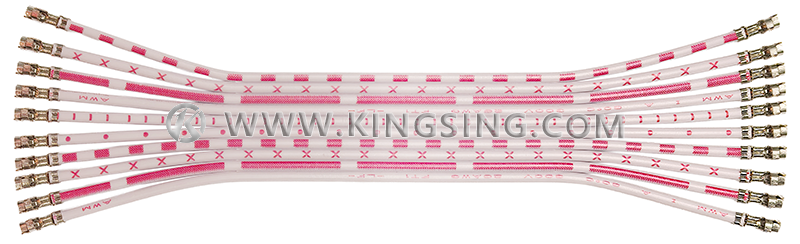

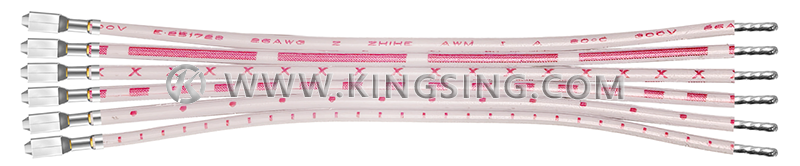

Applicable wire: electronic wire, double parallel wire, flat wire (2~20P)

Applicable wire diameter: AWG32~18 (0.02~1mm2)

Cutting length: 40~1000mm (can be customized)

Splitting wire length: 27~35mm

Wire delivery method: pull wire clip

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Stripping length: ≤10mm (can be customized)

Solder length: 0.5~10mm

Maximum pressure: 2T

Crimp stroke: 30mm (40mm can be customized)

Production efficiency: 4000~6000 pieces/hour (processing 5 wires at the same time)

Operation interface: color touch screen

Optional function: flat wire, splitting wire, twisted wire

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 550kg

Dimensions: 1900*900*1500mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
