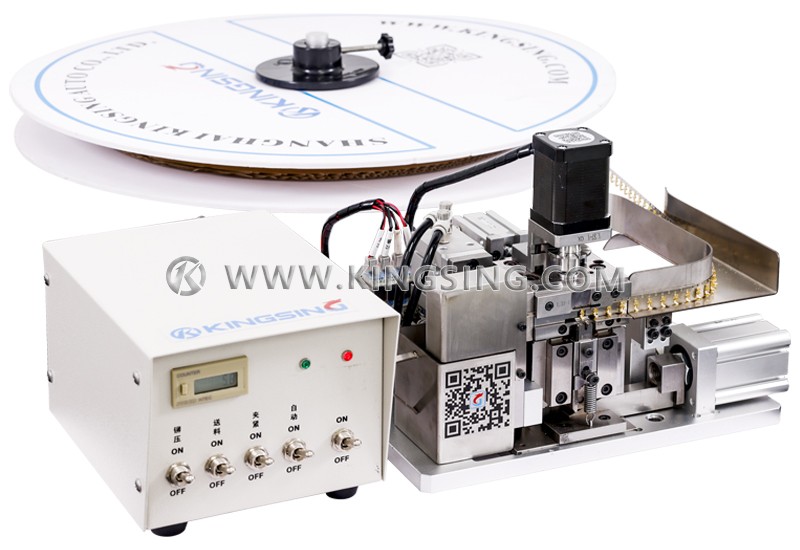

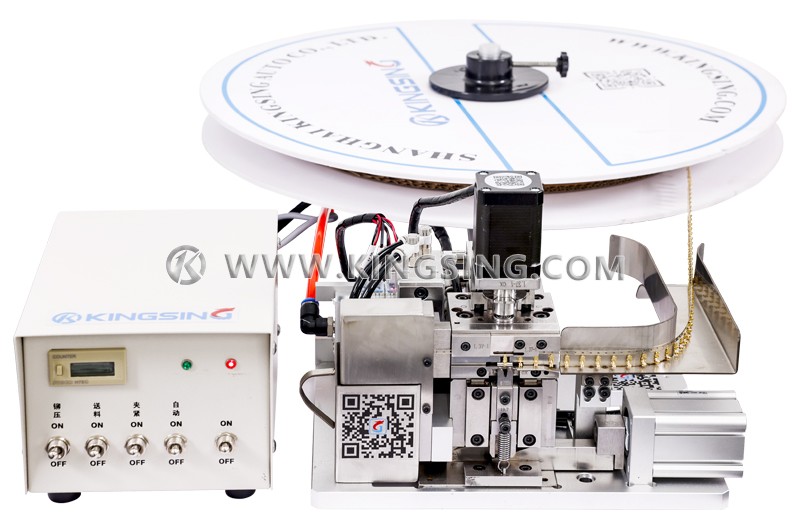

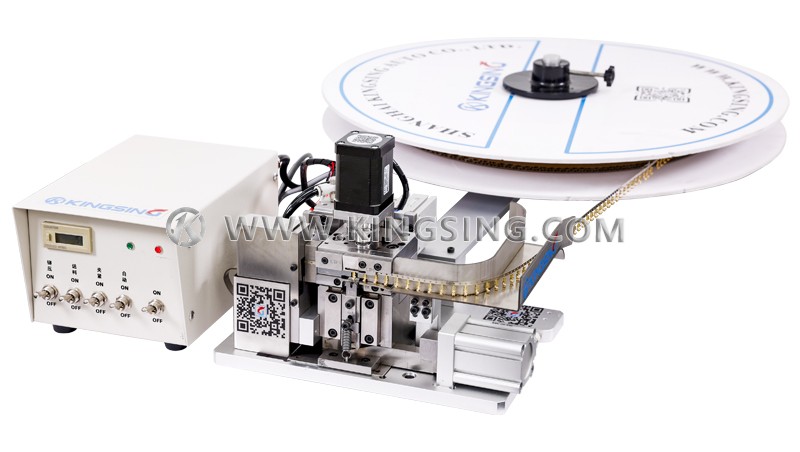

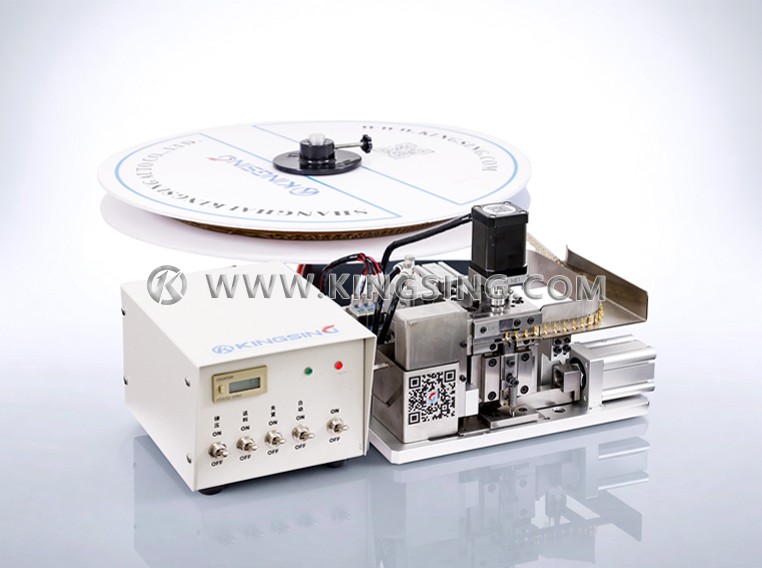

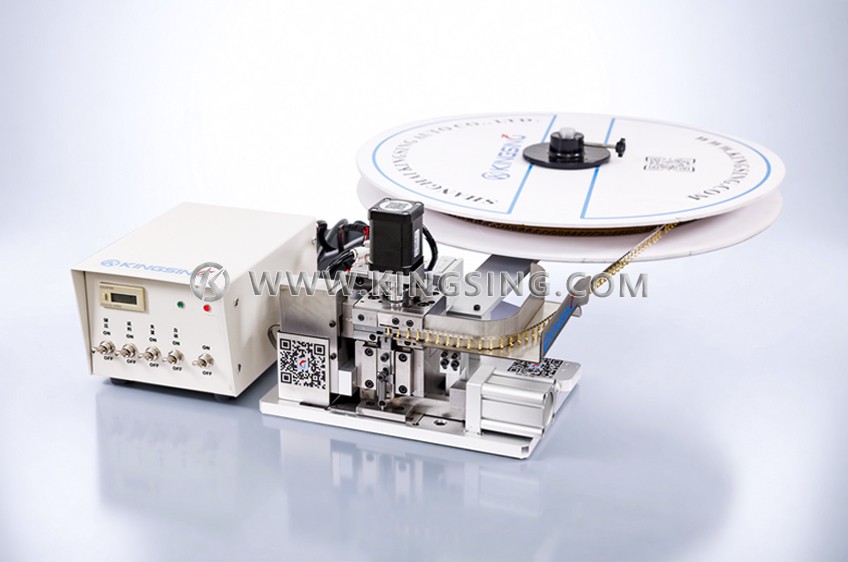

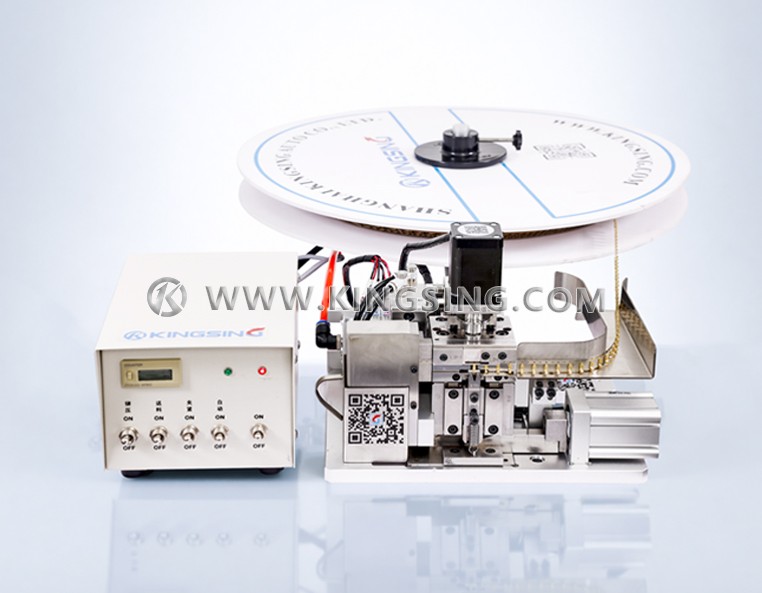

The Semi-Automatic I-PEX Terminal Crimping Machine is designed to deliver high-precision crimping for I-PEX and RF connectors, providing reliable and consistent performance. Its engineering ensures compatibility with a wide range of coaxial cables, including sizes such as 0.81mm, 1.13mm, 1.32mm, 1.37mm, and 1.78mm, making it versatile for industries like aerospace, telecommunications, and consumer electronics.
To process different wire diameters or terminal types, the corresponding molds must be separately purchased. While the machine excels at adapting to various requirements, these molds are not included as default interchangeable accessories and need to be ordered additionally.
Constructed with premium components such as SMC systems for exceptional reliability, the machine offers a long service life exceeding five years. Its cutting tools, crafted from high-speed steel or tungsten steel, maintain precision for up to 500,000 cycles, ensuring long-term consistency.
User-friendly and compact, this machine features an intuitive control panel for seamless operation in both manual and automatic modes. With its energy-efficient design and operational noise below 70 dB(A), it brings convenience and value to workflows in communication facilities, aviation systems, and electronic device assembly.
| Applicable Wire Diameter | 0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm Note: Changing molds is required for different terminals or wire diameters |
| Production Efficiency | Over 1600 pcs/h (depending on operator skill level) |
| Air Pressure Requirement | 0.5–0.7 MPa (5–7 bar) |
| Power Requirements | AC220–240V, 50–60Hz (customizable) |
| Operational Noise Level | <70 dB (A) |
| Dimensions | 475mm × 600mm × 210mm (including controller) |
| Weight | 10 kg |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
