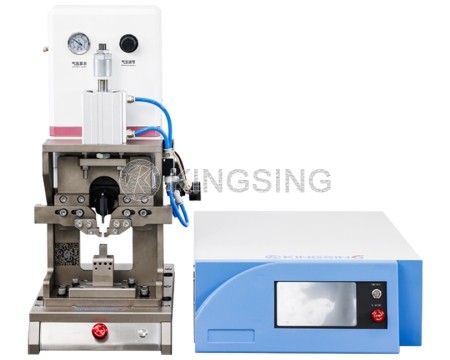

Ultrasonic Terminal Welding Machine

  • Model：KS-U301
  • Net. Weight：
  • Dimension：
Online Inquiry

This is an ultrasonic terminal welding machine, which is mainly used in the welding of automobile wiring harness and motorcycle wiring harness.

Available Wire Size: 0.5~25mm2 (W≤10mm, H≤6mm)

Welding Head Stroke: 20mm

Control System: PLC

Frequency Range: 20KHz±200

Output Power: 2000W

Power Supply: 220V 50Hz

Net. Weight: 39kg

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
