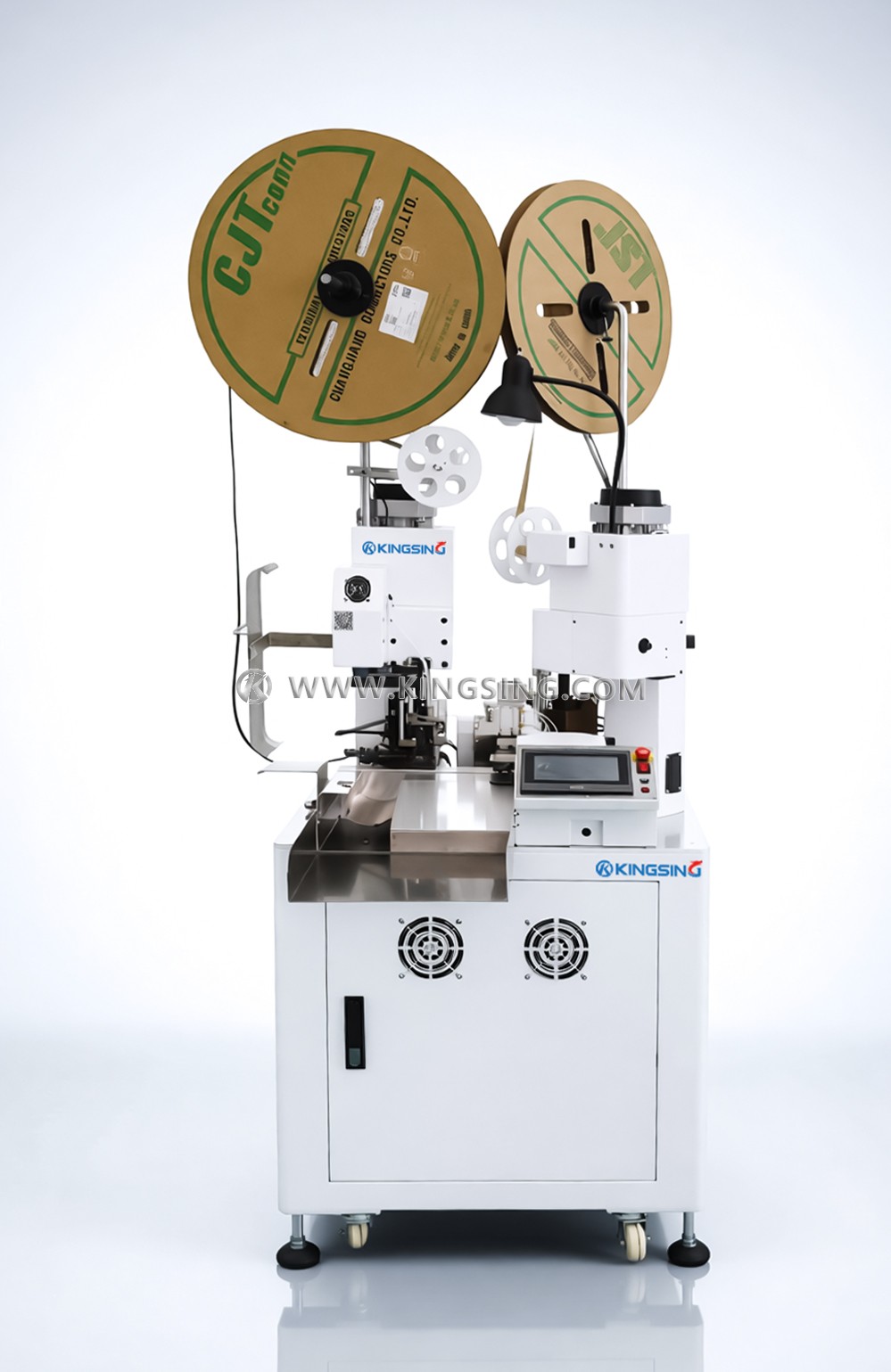

Automatic Double Combination Wire Crimping Machine

  • Model:KS-T520
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for processing double-combined wires. It integrates the functions of cutting, stripping, splitting, and crimping terminals. The splitting mold can automatically crimp and cut the two ends of the double-combined wires, and automatically crimp the terminals after stripping. This machine adopts the concept of flexible design. One machine can process many different products. When replacing wires and terminals, you only need to replace the corresponding splitting mold and crimping mold.

  2. Color touch screen operation interface, each functional module can be opened or closed freely in the program, for example, the function of crimping terminal at one end can be turned off, so as to realize crimping terminal at one end and stripping only at the other end. The program memory function can save the processing parameters of different products in the database. When switching products, the corresponding processing parameters can be called out with one key, saving debugging time. In addition, a crimping force monitor can be selected, which can automatically alarm and stop when the crimping is abnormal to ensure product quality.

Download: (1)

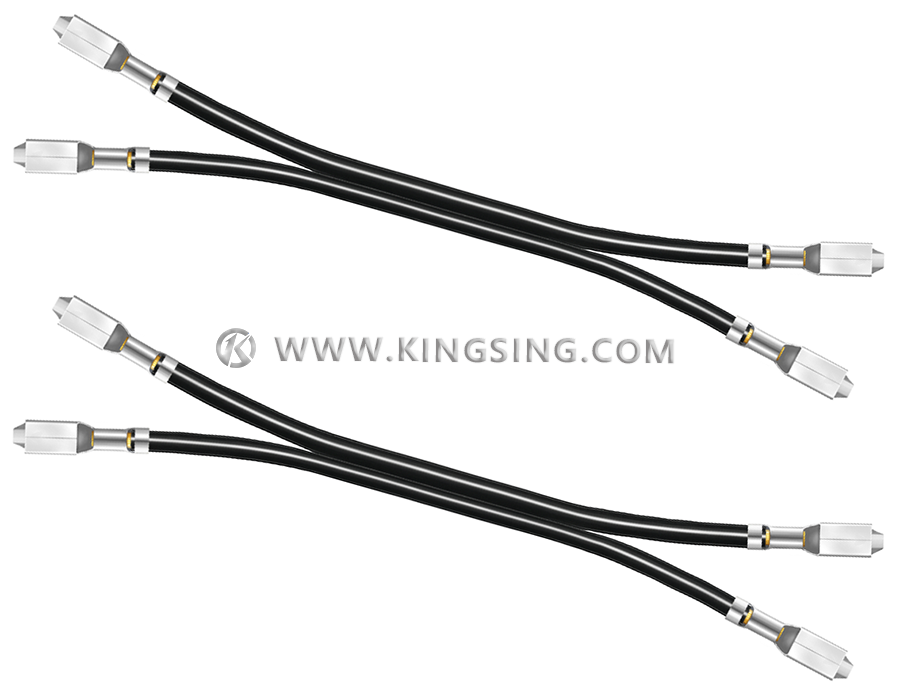

Applicable wire: double combined wire

Applicable wire diameter: AWG18~28 (0.1~1.0mm2)

Cutting length: 50~9999mm

Splitting length: 20~80mm (customized according to requirements)

Stripping length: ≤10mm

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Terminal machine output: 2T

Crimp stroke: 30mm

Applicable terminal type: cross feed terminal

Production efficiency: 3000~4000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 315kg

Dimensions: 800*830*1530mm

Optional configuration: crimping force monitor


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
