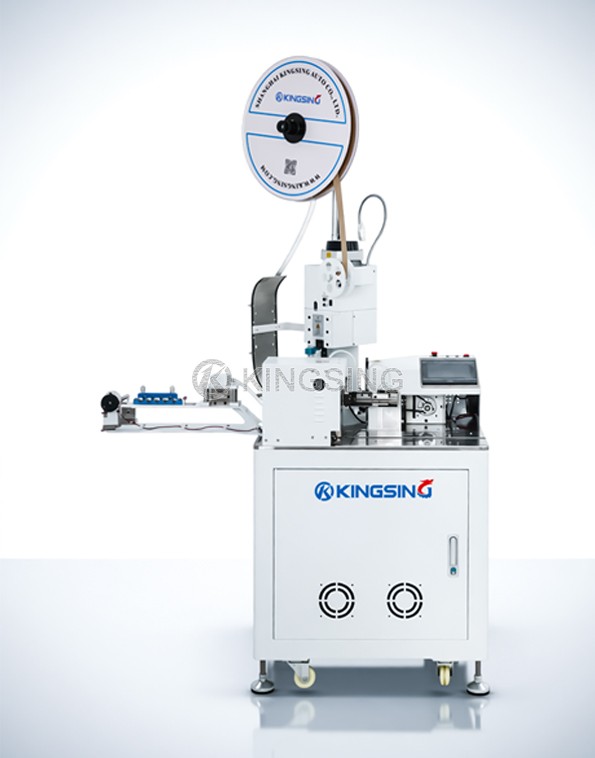

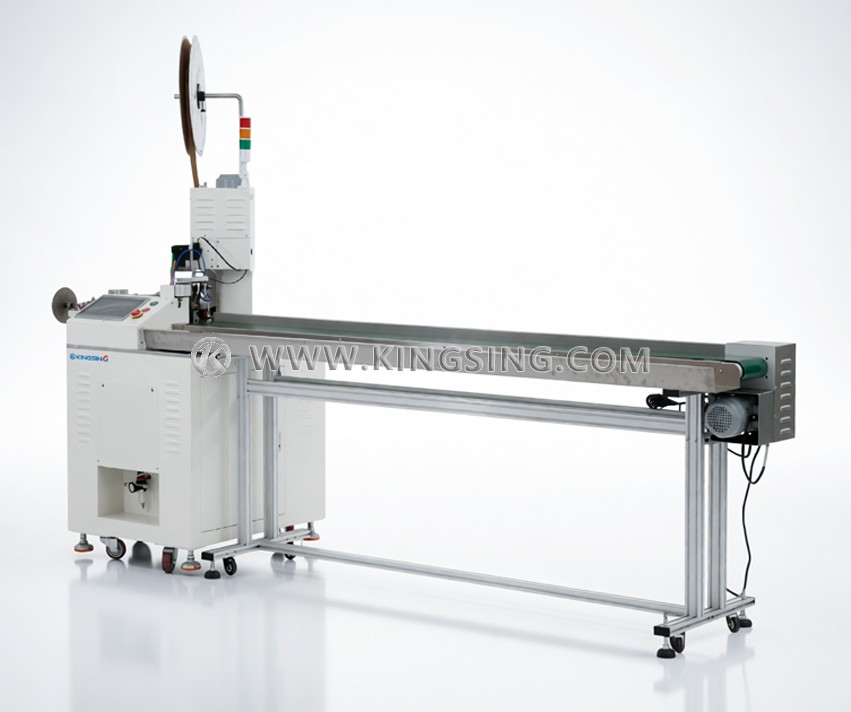

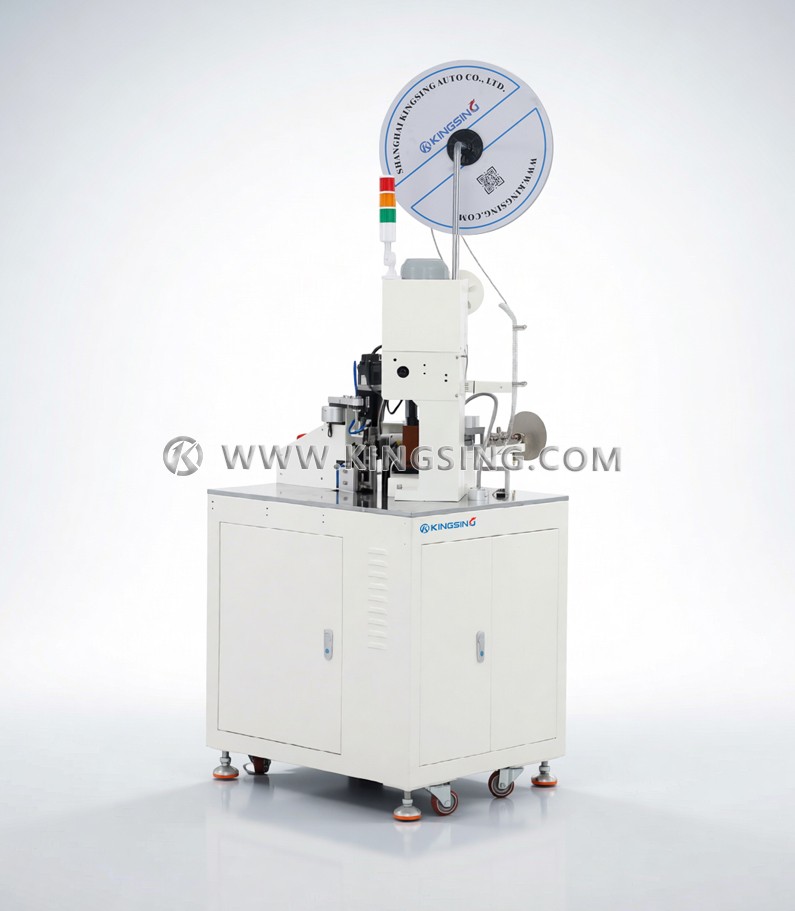

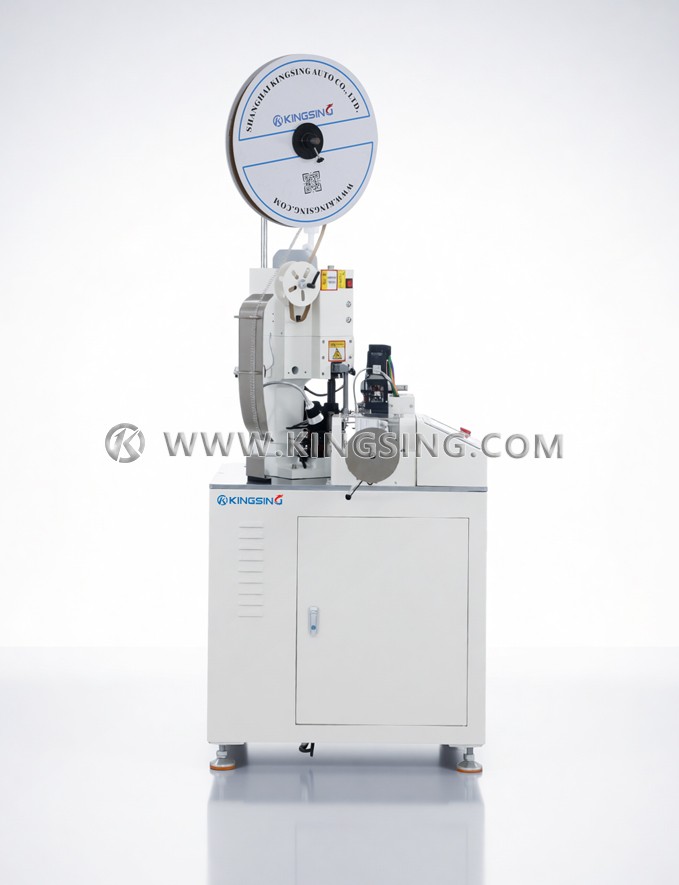

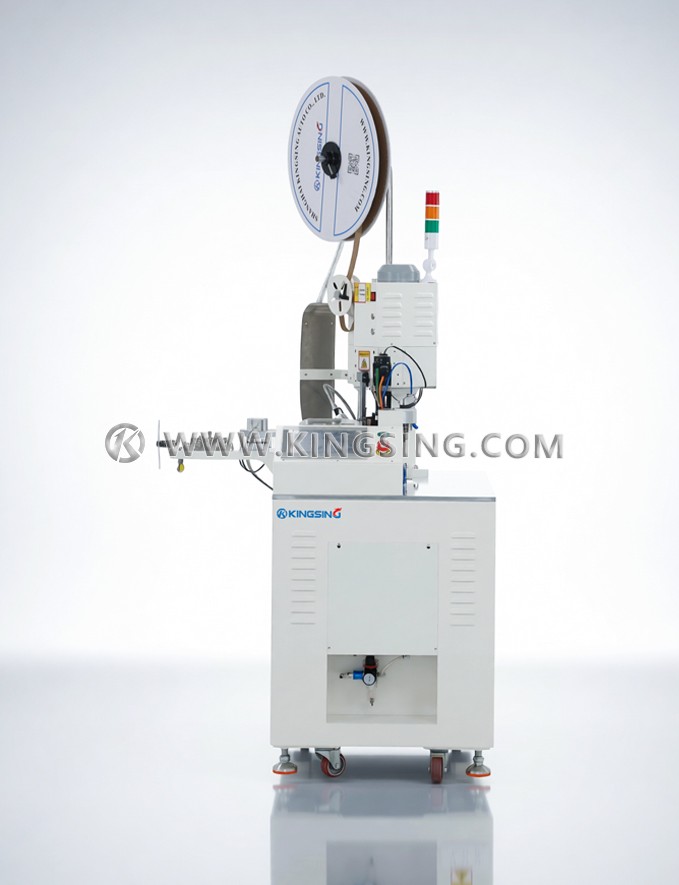

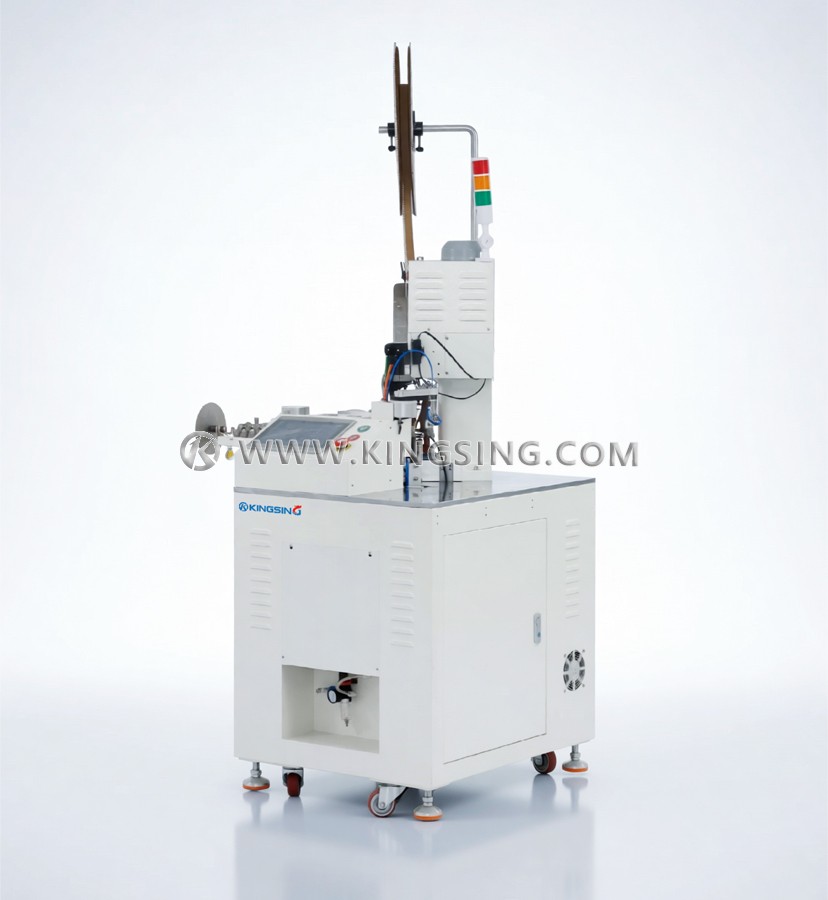

Parallel Twin Wire Stripping and Crimping Machine

  • Model:KS-T504
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for processing double wires. It integrates the functions of wire cutting, stripping, splitting, and crimping terminals. The splitting mold can automatically punch and cut the two ends of the double wires. One end only strips the wire, and the other end strips and crimps the terminals. One machine can process a variety of different products. When replacing wires and terminals, it is only necessary to replace the corresponding branching mold and crimping mold.

  2. The color touch screen operation interface, the program memory function can save the processing parameters of different products in the database, and when switching products, the corresponding processing parameters can be called out with one key, saving debugging time. In addition, a terminal pressure monitor can be selected, which can automatically alarm and stop when the pressure is abnormal to ensure product quality.


Download: (1)

Applicable wire: double wire

Applicable wire diameter: AWG18~28 (0.1~1.0mm2)

Cutting length: 30~9999mm

Splitting length: 20~80mm (customized according to requirements)

Stripping length: ≤10mm

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Terminal machine output: 2T

Crimp stroke: 30mm

Applicable terminal type: cross feed terminal

Production efficiency: 4000~5000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 250kg

Dimensions: 700*600*1500mm

Optional configuration: terminal pressure monitor

Note:

  • In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

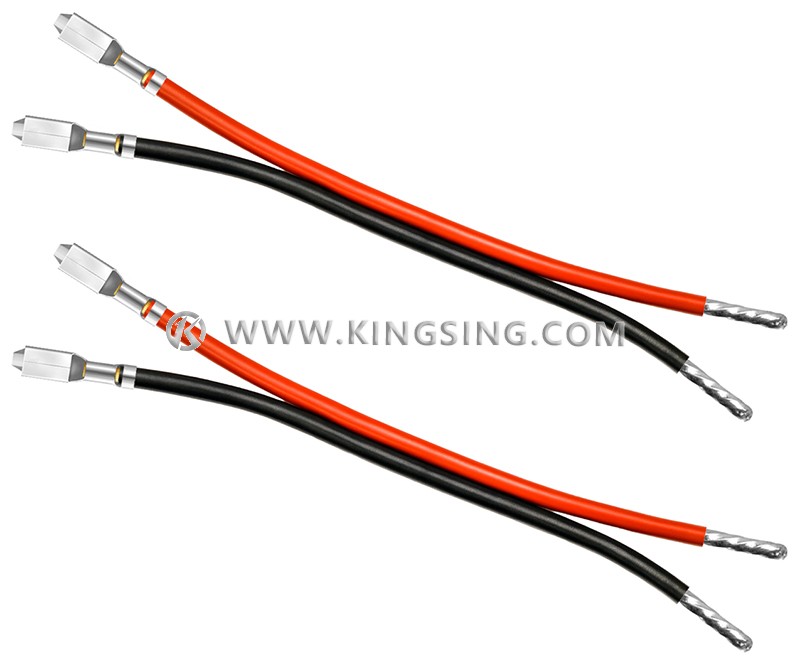

Sample:
