Wire Stripping Twisting and Crimping Machine

  • Model：KS-A107S
  • Net. Weight：
  • Dimension：
Online Inquiry

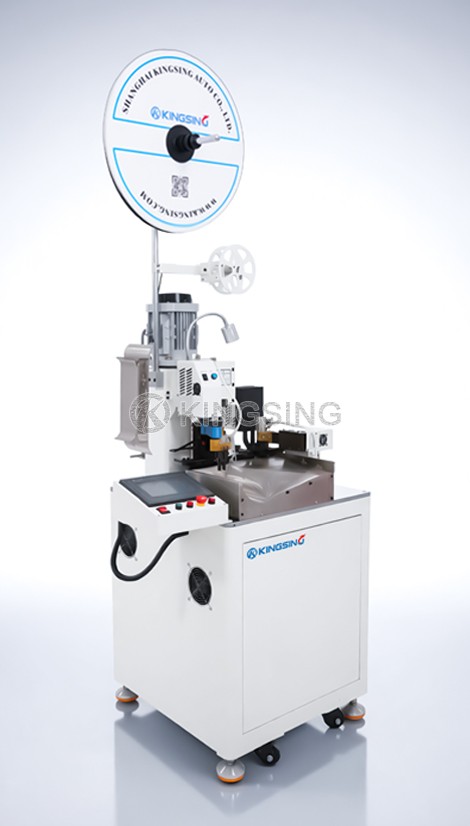

This automatic wire crimping machine delivers a complete wire processing solution by automating cutting, stripping, twisting, and crimping operations in a single cycle. Designed for high efficiency and reliability, it is ideal for manufacturing environments requiring consistent quality and reduced manual labor.

Equipped with a wire straightener and a four-wheel feeding mechanism, the machine ensures smooth wire feeding and precise alignment, enhancing processing stability and accuracy. The standard OTP bayonet crimping applicator with a 30mm stroke supports a variety of terminals, including tray-mounted, horizontal feed, and direct-feed types.

The intuitive color touch screen interface allows for easy parameter setup, including cutting length, stripping length, twisting force, and crimping position. With program memory function, multiple production settings can be saved and recalled with a single click, enabling rapid changeovers between different wire and terminal configurations.

Engineered for versatility, the machine supports a wide range of wire sizes from 0.1 to 2 mm² and can process up to 5,000 pieces per hour. It is suitable for applications in electronics, automotive wiring, industrial equipment, and electrical assembly, making it a cost-effective choice for high-volume production lines.

Applicable Wire Size0.1–2 mm²
Cutting Length45–9999 mm
Stripping Length≤12 mm (customizable)
Cutting Accuracy±(0.5 + L × 2‰), where L = cutting length
Crimping Stroke30 mm (40 mm stroke model customizable)
Applicable TerminalsHorizontal feed terminals, direct feed terminals, etc.
Production Efficiency4,000–5,000 pieces/hour
Operation InterfaceColor touch screen
Air Pressure0.5–0.7 MPa
Power SupplyAC 220 V / 50–60 Hz (customizable)
Machine Dimensions850 × 1200 × 1450 mm
Optional ConfigurationTerminal crimp force monitor, conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, bulk terminal vibratory feeding system, customized solutions available upon request
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
