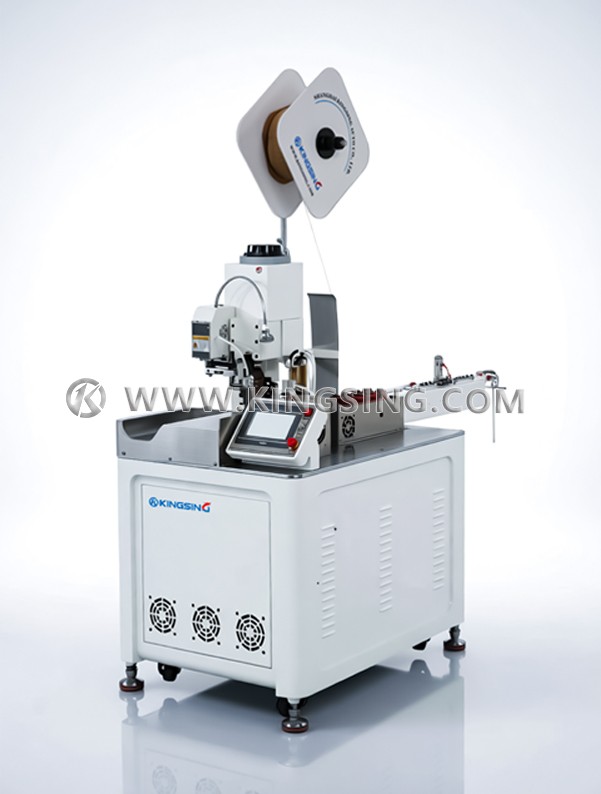

Automatic Wire Hot Stripping and Crimping Machine

  • Model:KS-T553H
  • Net. Weight:
  • Dimension:
  1. This is a hot-stripping 1-side automatic terminal machine, specially designed for processing the lead-out wires of refrigeration compressors, with one end stripping the wires and the other end crimping the terminals. This machine adopts the ironing method to strip the wires. The electric heating device can iron the outer braiding layer and heat seal the edges, which can solve the problem of loose ends of fluorine-resistant wires and difficult to peel off fluff. The wire inlet is equipped with 3 sets of straighteners, which can automatically straighten the wire and improve the stability of the machine operation. The wire feeding mechanism adopts 8-wheel wire feeding, which can prevent the wire from slipping and improve the wire feeding accuracy.

  2. The crimping machine is integrally formed with nodular cast iron, the whole machine has strong rigidity, and the crimping size is stable. The default crimping stroke is 30mm, and the standard OTP bayonet applicator is used. In addition, a model with a stroke of 40mm can also be customized, and various European applicators can be used. It can also be equipped with a crimping force monitor to monitor the crimping force curve changes of each crimping process in real time, and automatically alarm and stop when the crimping force is abnormal.

  3. One machine can process a variety of different products. When replacing wires and terminals, it is only necessary to replace the corresponding crimping dies and wire inlet conduits. Color touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as cutting wire length, stripping length, crimping position can be set in the program. The program memory function can save the processing parameters of different products into different program numbers, and the corresponding crimping parameters can be called out with one key when switching products.

Download: (1)

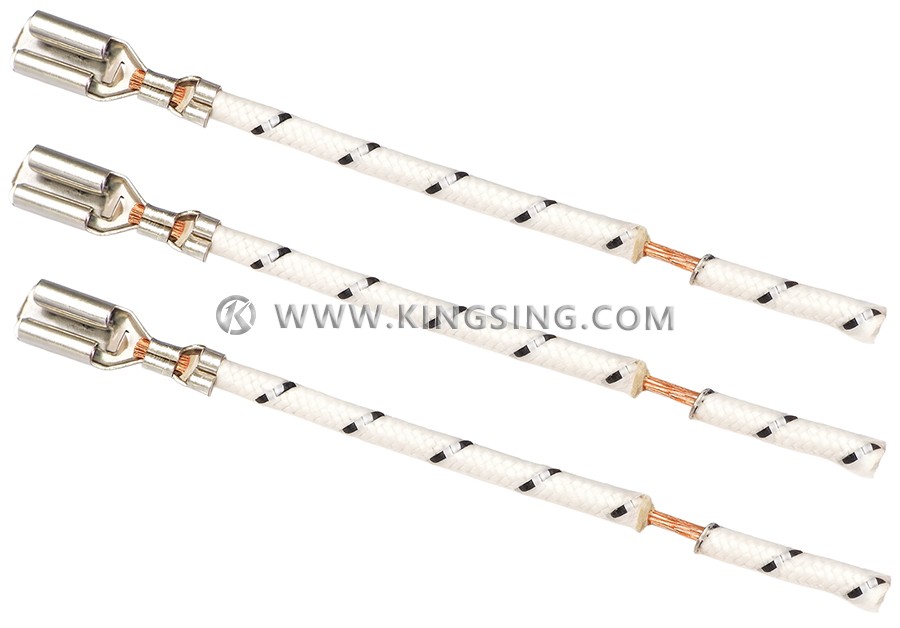

Applicable wire: fluorine-resistant braided wire, lead-out wire of refrigeration compressor

Applicable wire diameter: 0.1~2mm2

Cutting length: 45~9999mm (special length can be customized)

Stripping length: ≤15mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping stroke: 30mm (40mm stroke model can be customized)

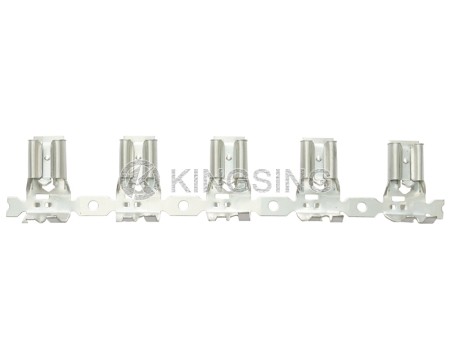

Applicable terminals: cross-feed terminal, direct-feed terminal, flag terminal

Production efficiency: 1800~2200 pieces/hour

Operation interface: color touch screen

Optional functions: crimping force monitor, long wire conveyor belt, safety shield

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 300kg

Dimensions: 700*800*1500mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
