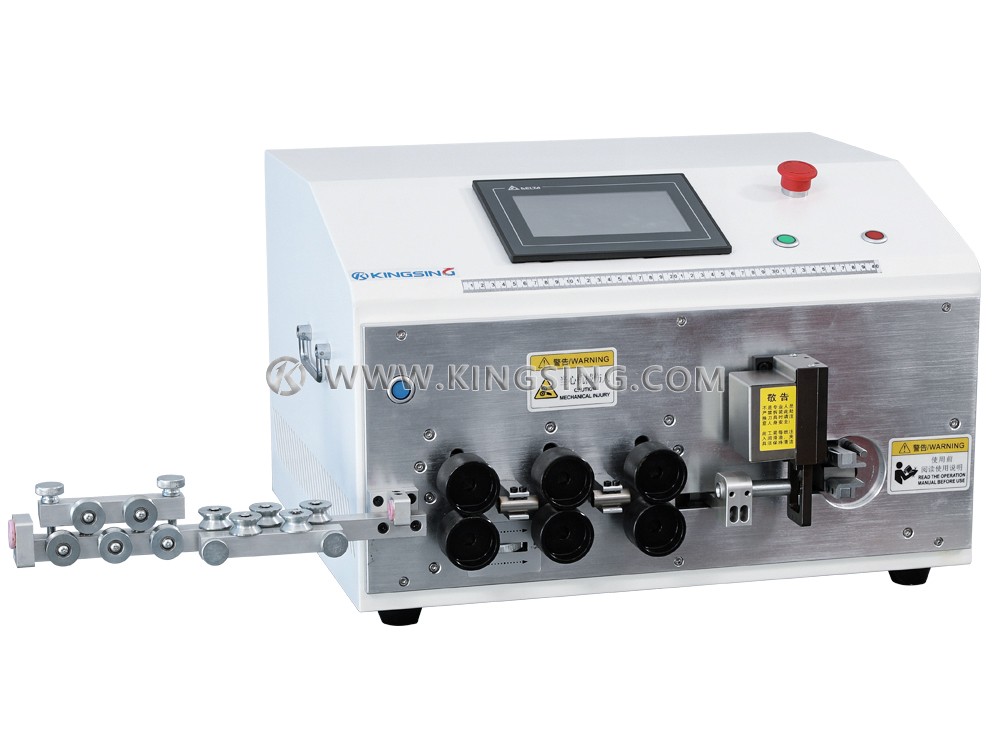

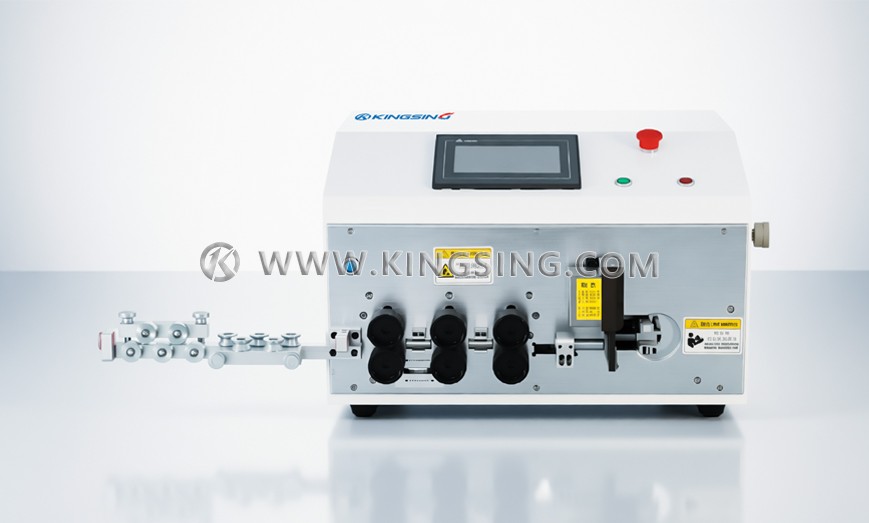

Automatic Wire Cutting and Bending Machine

  • Model:KS-W012
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This is a fully automatic BV hard wire cutting, stripping and bending machine, which can process up to 25mm2 wire. This machine uses 6 wire feeding rollers to feed the wire, which greatly increases the contact area between the wire feeding rollers and the wire, which can prevent the wire from slipping between the wire feeding rollers and provide strong stripping power.

  2. The unique design of the rear stripping clamp enables the machine to support wire tail stripping. After the wire is bent, the rear stripping clamp sends the wire back to the knife holder for wire tail stripping. This is different from the principle of the bending and stripping machine without the function of the rear stripping clamp, although some models can also strip the wire tail without the rear stripping clamp. However, it is limited by the length of the wire and the tightness of the sheath, and the wire is stripped before bending. However, this machine uses the post-stripping clamp to strip the wire after the bending is completed, and is not affected by the length of the wire and the tightness of the wire sheath.

  3. Color touch screen operation interface, parameter setting is intuitive and easy to understand. Parameters such as stripping length, bending angle, and length of each section can be set directly in the program. The program memory function can store up to 200 groups of programs, and the corresponding processing parameters can be called out with one key when processing different wire materials. In addition, it can also be equipped with a computer industrial control system, which supports MES system network dispatching, and supports batch import of processing data from Excel. This system can also be equipped with inkjet printers, code scanners, barcode printers and other equipment.

Applicable wire diameter: 2~25mm2

Stripping length: wire head 0~100mm, wire tail 0~25mm

Maximum cutting length: 100 meters

Cutting accuracy: 0.002*L (L=cutting length)

Bending direction: both clockwise and counterclockwise

Maximum number of bending segments: 20 segments

Minimum bending size: 22mm (smaller can be customized)

Production efficiency: 600~1000 pieces/hour

Operation interface: 7-inch color touch screen

Program saving: up to 200 groups of programs can be saved

Working voltage: 220V 50Hz

Rated power: 800W

Air pressure: 0.5~0.7Mpa

Machine gross weight: 90kg

Dimensions: 600*550*450mm
