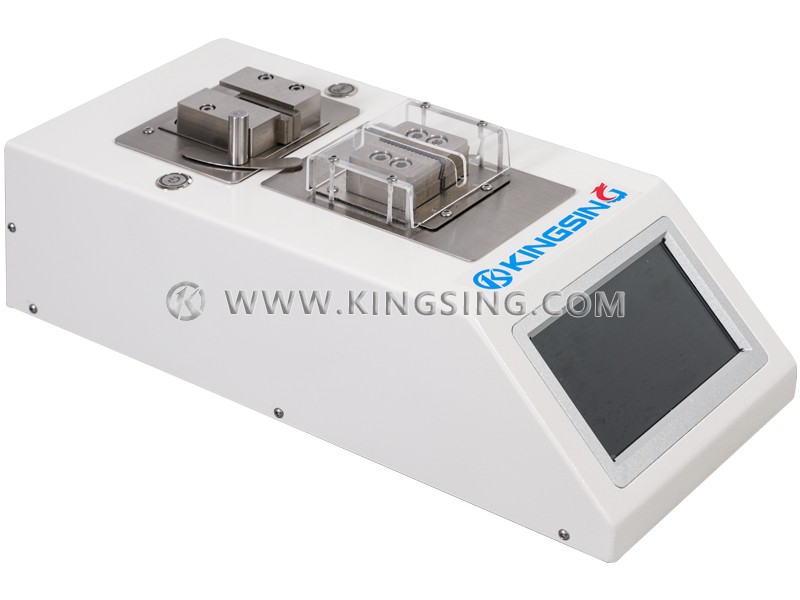

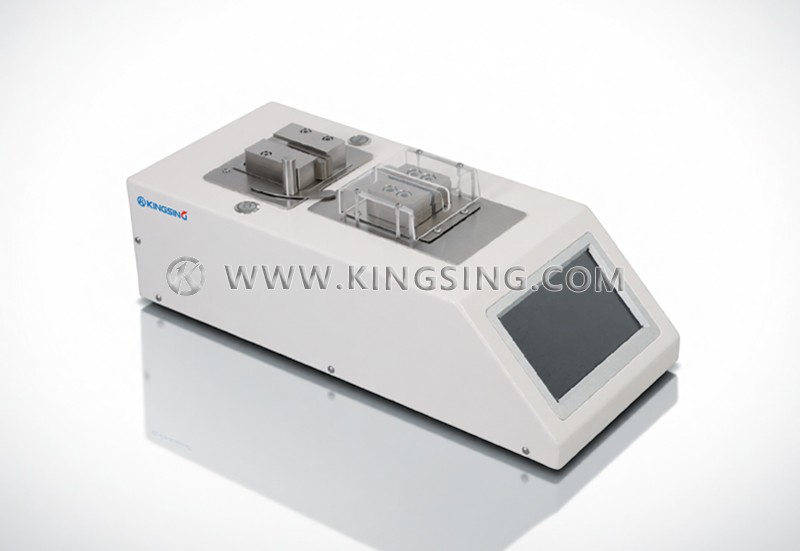

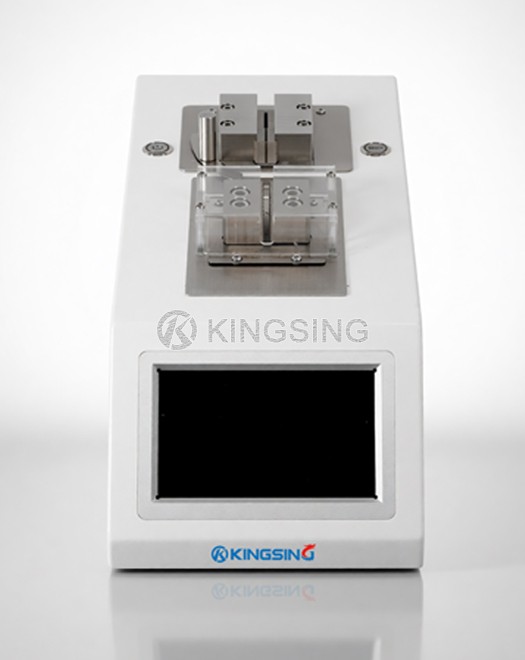

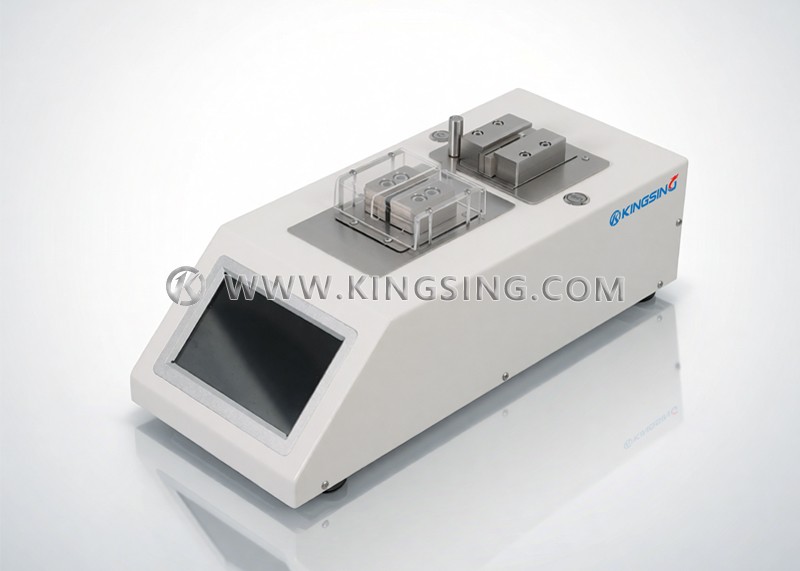

Pull Force Tester

  • Model：KS-A1001
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Beautiful shape. Small size. Portable；

  • Test pattern: Pull force retention；

  • There are three kinds of measuring unit: N (Newton), kg (kilogram) and Lb. (Pound) ；

  • Convenient parameter setting and simple interface；

  • High precision and high resolution. The test results are stable and accurate；

  • It Automatically upload MES system after test；

  • Easy to operate, the operator can get started quickly without any training.


Download: (1)
Pull force range100kgf
980N
220Lbf
Resolution0.01kgf
0.01N
0.01Lbf
Accuracy±0.5%FS
UnitKgf, N, Lbf
Pull force Stroke14mm
Pull speed0~300mm/min
Test ModePull force retention
Data outputUSB
Power supplyDC19V adapter
Environment temperature0~40℃
Environment Humidity<80%RH
Net weight11Kg
Dimension375*60*130mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
