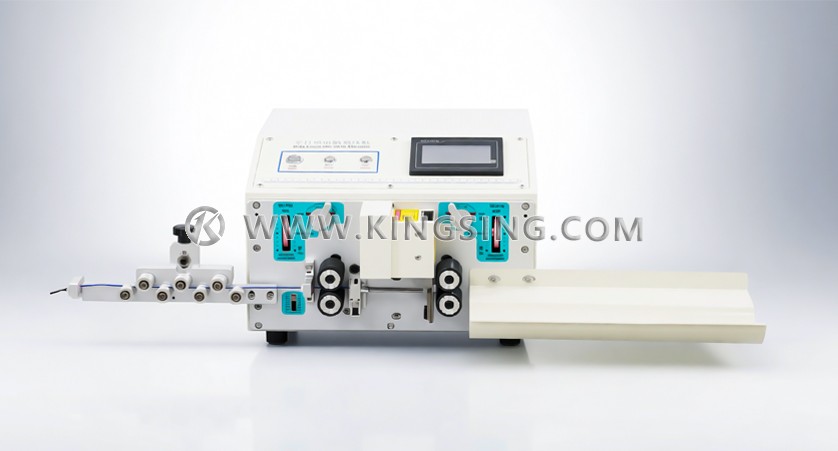

Automatic Computer Wire Stripping Machine

  • Model：
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

  • The use of a 5-inch color touch LCD screen plus a single-chip self-developed motion control board is more efficient and stable.

  • The all-metal straightener is used with a one-touch quick switch, and the wire feeding wheel can be equipped with a rubber wheel, an iron wheel, or a leather wheel.

  • The electric conduit wire feeding and the knife holder adopts imported material heat treatment grinding process. Save labor and time and improve production efficiency.

  • Mainly used for electronic wires, silicone wires, Teflon wires, glass woven cotton, isolation wires, coaxial wires, sheathed wires, etc.

  • Fully automatic cutting, stripping, half stripping, one-time completion, fast change of wire specifications and sizes, high production efficiency.


Download: (1) (2)
Model

Operation page5-inch touch screen display
Stripping length
Wire head 0~30mm, Wire tail 0~30mmWire head 0~300mm，Wire tail 0~90mm
Conduit control methodMotor
Motor number4 (respectively control: inlet/outlet wire wheel/blade holder/conduit)
Cutting length
0.1~99999.9mm
Wire diameter0.1~6mm2within 10mm2
Conduit2/3/4/5（8pcs）4/5/6/8（4pcs）
Capacityabout 7000~15000pcs (depending on the wire)about 4000~6000 (depending on the wire)
Power supply
220V  50~60HZ
Weight


Dimension（L*W*H）

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
