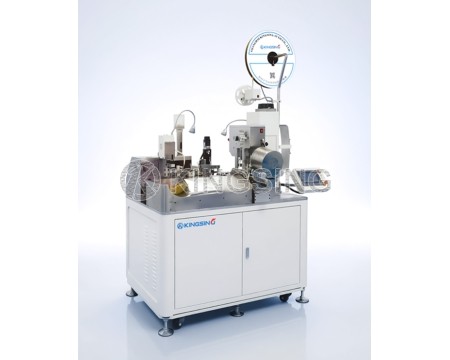

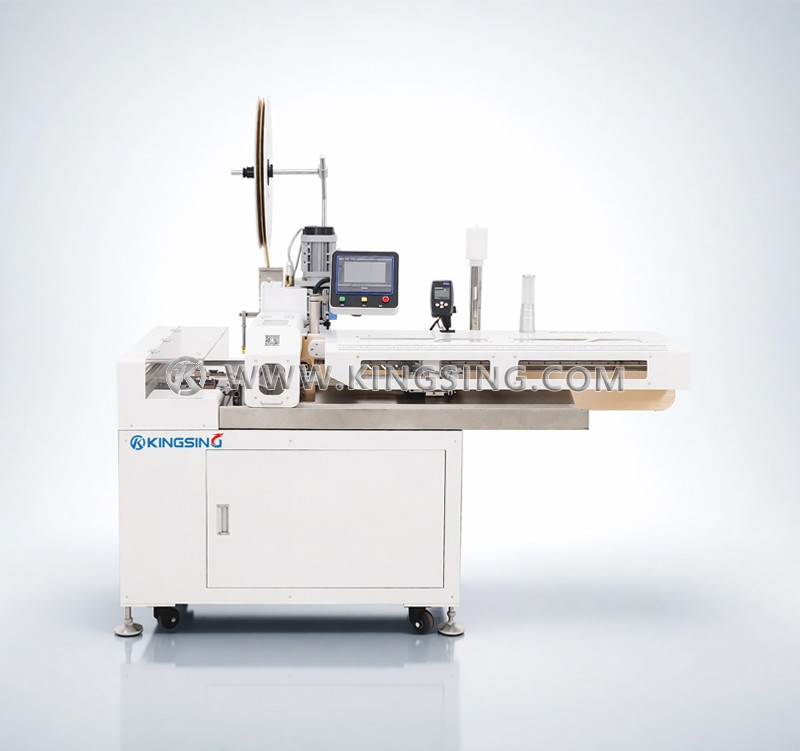

Automatic Wire Crimping Tinning and Twisting Machine

  • Model:KS-W1146T
  • Net. Weight:
  • Dimension:
  • Fully automatic wire cutting, stripping, crimping, twisting and tinning machine, which uses back-pulling wires to a fixed length to cut, strip, twist, tin and twist wires at one time, and can pull up to 2 sets of wires at the same time; Both soft and hard wires can be cut and stripped accurately. The rotating twisting device adopts Mitsubishi servo, which can precisely control the twisting speed, accurate twisting distance, high concentricity, and neat and convenient wire storage;

  • Touch screen interface, the twisting speed and tightness, knife edge size, cutting and stripping length, crimping depth, twisting speed and tightness, and tinning depth are all digitally debugged. The length of the untwisted wire at the front and rear ends is adjustable, and the tightness of the twisted wire is adjustable; The back-pull twisting wire adopts Mitsubishi servo rotary twisting wire. The back-pull twisting wire is equipped with a double guide rail buffer mechanism, so that the wire is always in a sub-tightening state when twisting, and the twisting wire is even;

  • The front-end translation adopts Mitsubishi servo double guide rail XY axis, which ensures accurate parking. The front-end crimping part uses a double guide rail device to achieve gap-free crimping, ensuring the high-precision stability of the stripping and crimping end of thin wire and small terminals;The back-end wire stripping adopts precision screw double guide device and Mitsubishi servo; the rear-end rotation tinning adopts high-power Mitsubishi servo;

  • The tightness of the wire twisting and the tin depth of the flux applied are all digital operations, realizing motor-type wire twisting and two forward and reverse wire twisting methods;

  • Long/short wire switching does not require the replacement of the rear stripping clamp, enabling instant replacement, the first of its kind in China. The machine adds a multi-stage stripping function; the front and rear stripping strokes are increased, enabling long-range stripping; the wire take-up can be equipped with a rotating take-up device, which is beneficial to the take-up of slender wires;

  • The ultra-wide knife edge is helpful for protecting the core wire, and the ultra-large rubber leakage port is equipped with an air blowing and rubber blowing device on the basis of suction to further ensure that the rubber is collected cleanly;

  • The motor rotates to scrape tin, avoiding air pressure interference, and the heater adopts a hot runner device;

  • Equipped with horizontal/straight terminal cutting and leaking devices; accessories are made of anti-corrosion materials to avoid corrosion and have a longer service life;

  • All built-in circuits are equipped with abnormal signal monitoring indicators, so faults can be checked at a glance and faults can be easily eliminated.

Download: (1)

Display mode: touch screen LCD display

Power supply: AC220/50Hz

Air pressure: within 6 kg

Power rating: 3000W

Crimping capacity: 2T

Function: wire cutting and stripping, single-end crimping, single-end twisting and tinning, twisting wire

Applicable wires: electronic wires, high temperature wires, Teflon wires, etc.

Processing range: 32#-16# (wire diameters above 16# can be enlarged through the wire hole)

Length of stripping port: Standard machine blade distance from front end is 8mm and rear end is 12mm

Tinning depth: 0.5-10.5mm (changeable)

Twisted wire length: 2mm-10.5mm (depending on the wire, can be changed)

Twisted wire mode: Servo rotating twisted wire

Wire twisting method: digital operation, motor drive method

Rotary tin mode: servo braking

Wire pulling mode: servo braking

Take-up mode: rotating take-up

Applicable mold: horizontal applicator, universal applicator

Swing arm mode: front end translation servo braking

Dimension: 1700*720*1500

Cutting length: The standard machine can make a single untwisted wire 15-850mm long, and the twisted wire length is within 30-700mm (shorter or longer can be customized)

Auxiliary devices: horizontal and universal terminal leakage waste device/waste flux collection device/waste tin slag collection device/waste rubber collection device


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
