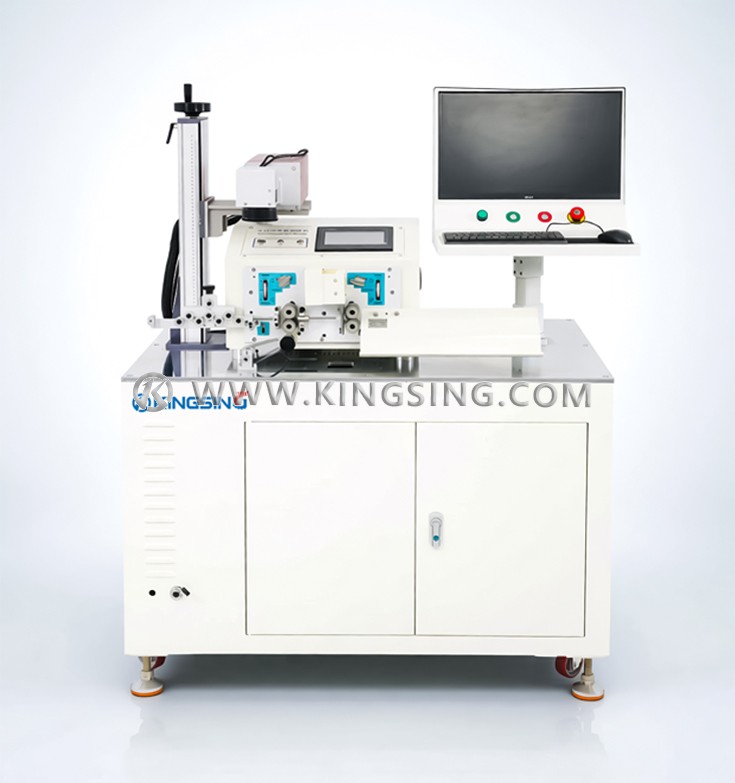

Automatic Laser Marking and Stripping Machine

  • Model:KS-W1010L
  • Wire Size:
  • Net. Weight:
  • Dimension:

This is an automatic wire cutting, stripping and laser marking machine, it adopts computer industrial control system for processing, the printing content is controlled by computer software, and supports different printing contents for each wire. Data can be imported in batches through Excel tables to produce wires with different cutting lengths and different printing contents at one time. The built-in network interface can be connected to MES system through the LAN to realize remote reading or setting parameters, remotely release of production tasks and other functions.

Download: (1)

Applicable Wire Diameter: 0.1~10mm²

Cutting Length: Max. 99999.9mm

Stripping Length: Head 0~30mm, Tail 0~30mm

Conduit Inner Diameter: 2/3/4/5 (depends on the wire)

Conduit Jumping Drive Mode: Motor drive

Blade Material: High speed steel

Capacity: 3000~4000pcs/hour (depends on the wire)

Rated Power: 1500W

Operation Mode: Computer industrial control system

Operation System: Windows 10

Motor Type: Servo Motor

Min. Insulation Length: 30mm

Marking Mode: Laser

Laser Type: UV

Laser Wavelength: 355nm

Cooling Mode: Water cooling

Laser Power: 300W

Power Supply: AC220V 50/60Hz

Dimension (L*W*H): 1320*920*1550mm

Net Weight: 308Kg
