Automatic Wire Spool Dereeler

  • Model：KS-W201
  • Net. Weight：
  • Dimension：
Online Inquiry

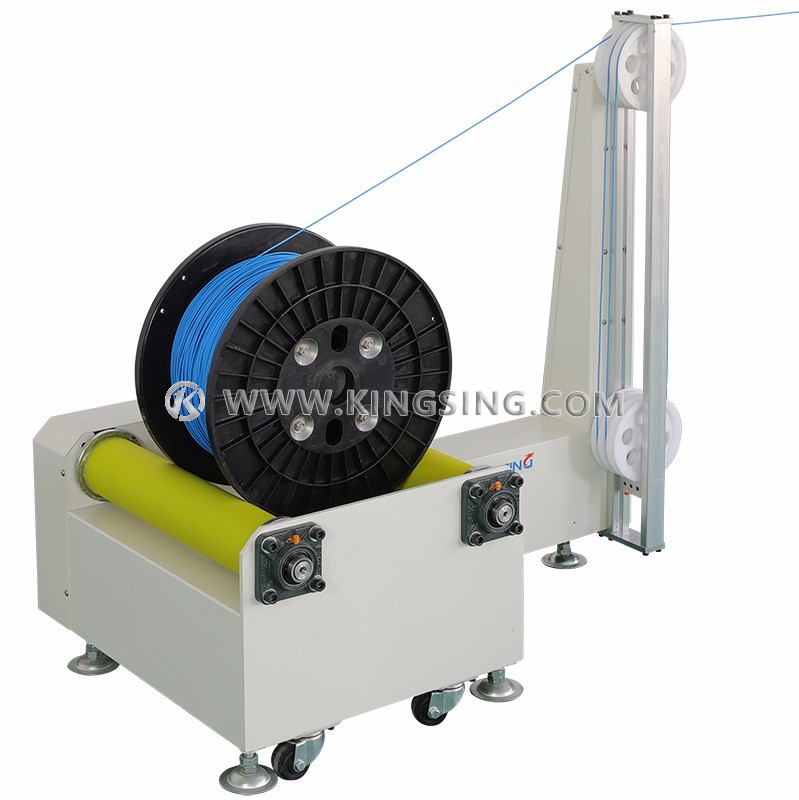

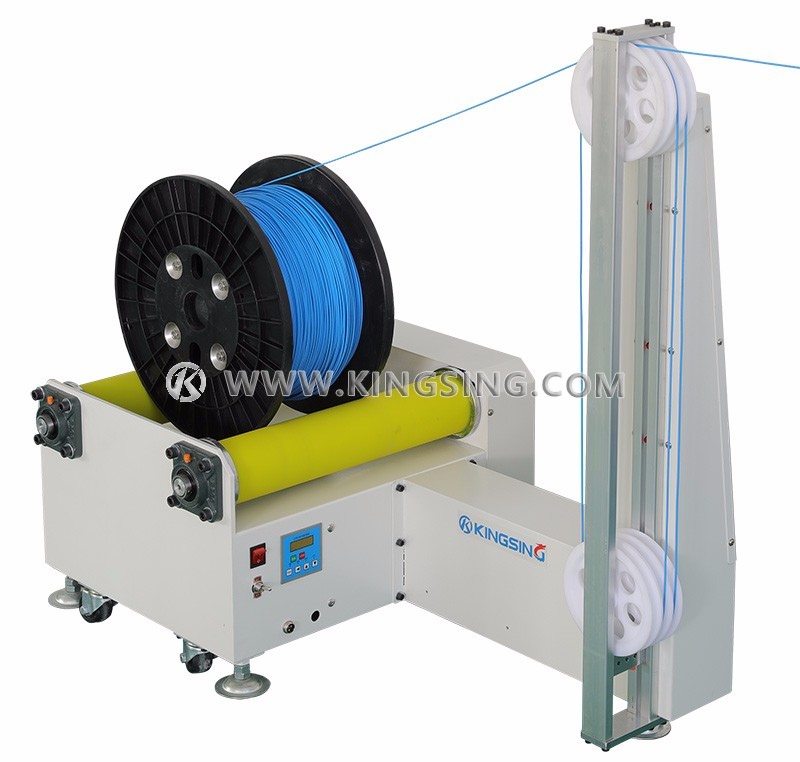

The automatic wire spool dereeler is designed to assist in the dereeling of spooled material for entrance in o an automatic cutting stripping and crimping machine.

Thanks to the vertical structure and bobbin-free design, it's able to handle Max.100kg wire reel with diameter ranging from 300mm to 600mm.

  1. Requires no electrical connection to its host machine, wire dereeling speed automatically adjusts to the speed of demand, smooth acceleration and braking of the rotary plate.

  2. Bobbin-free design, easy wire reel loading and unloading, fast operation with very little adjustment.

  3. The pulley block can store up to 4m wires in advance to ensure very fast wire prefeeding requirements.


Download: (1)

Available Material: reel coils of soft wire
Available Wire Size: Φ0.6 ~ 5mm
Max. Feeding Speed: 2.5m/s
Max. Reel Weight: 100Kg
Power Supply: 220V/50Hz
Power Rating: 120W
Net. Weight: 94Kg
Dimension: 1090 × 710 × 1000mm

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
