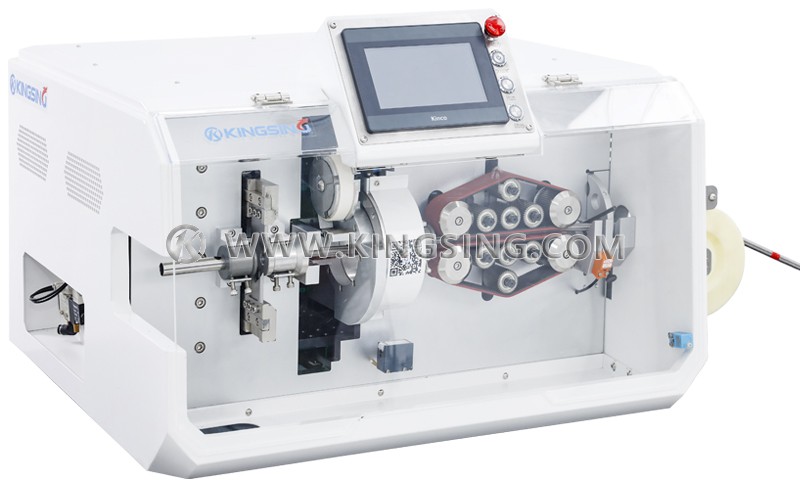

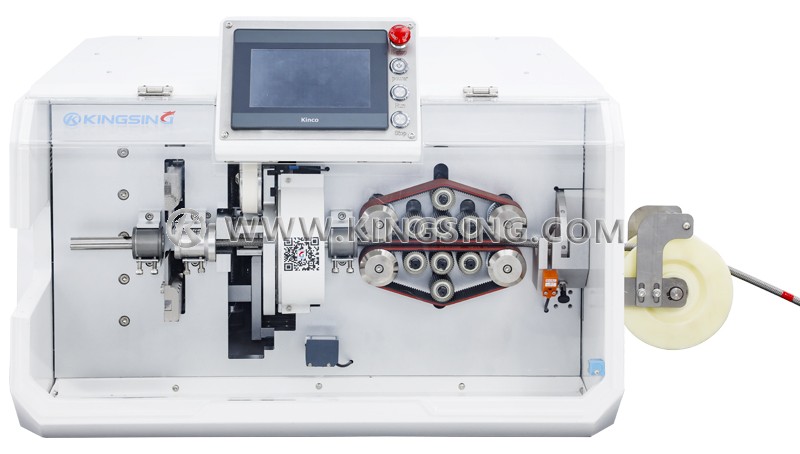

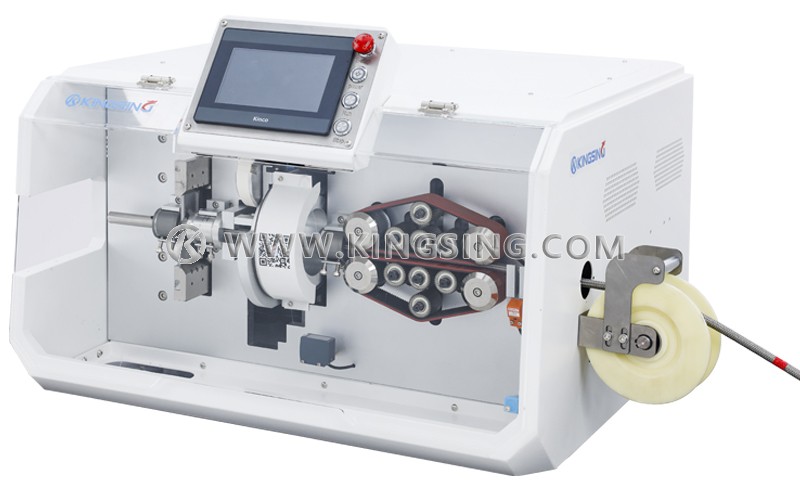

An automatic winding and cutting machine is a device used for processing wires, cables, flat conductors, flexible copper bars, sheathing pipes, and various PVC hoses. It can automatically cut, strip, and wrap adhesive tapes, masking paper, or other self-adhesive materials at specified positions. Here are some common features and characteristics:
Automatic Cutting: The machine can automatically cut materials to the set length, improving processing efficiency and accuracy.
Automatic Winding: It can automatically wind adhesive tapes or other sticky materials at designated positions to achieve insulation or marking purposes.
Efficient Production: Through automated operations, it reduces manual intervention, improving production efficiency, and lowering labor costs.
Precise Positioning: The design is precise, ensuring that materials are accurately positioned and processed during production.
Pipe Diameter: Ф9~Ф20mm (depends on the pipe material)
Tape Specification: Width: Max. 20mm ID: Ф32~76mm OD: 110mm (customized)
Blade Type: Cold blade
Cutting Length: Max. 1000m
Cutting Accuracy: ± 0.5+L x 0.002mm (L=cutting length)
Speed: 600~800 pcs/hour (Depends on cutting length and wrapping turns)
Power Supply: 220V / 50Hz
Power Rating: 1000W
Program Memory: Max.100 groups of programs
Customized Function: Defective tube detecting and cutting
Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)
Dimensions (L×W×H): 870*760*600mm (34.25*29.92*23.62in) (Protrusions are not contained)
Net Weight: 174Kg (383.60lbs)
Note: The above parameters are for reference only. In the case of extremely hard, ductile or thick-stranded wires, processing might not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
CE-Conformity:
KS-P916T fully complies with all CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
