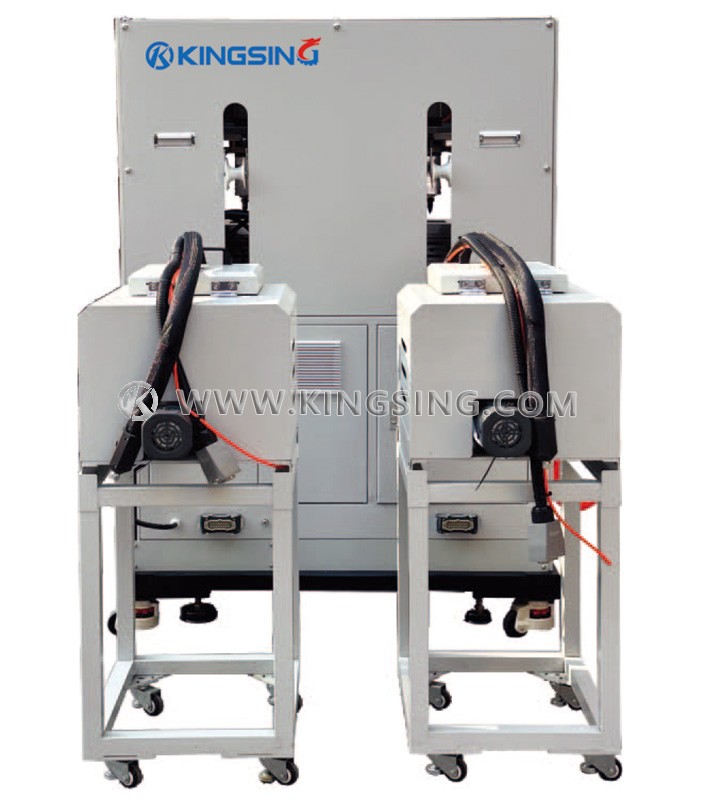

This dual-station low-pressure top injection molding machine is specifically designed for the precise and reliable overmolding of sensitive electronic components such as PCBs, sensors, coil assemblies, wire terminals, and automotive connectors. By integrating a top-injection system with a fully enclosed melt tank and independent heating zones, it ensures consistent glue flow, minimal thermal stress, and superior bonding quality—ideal for high-reliability applications in electronics manufacturing.

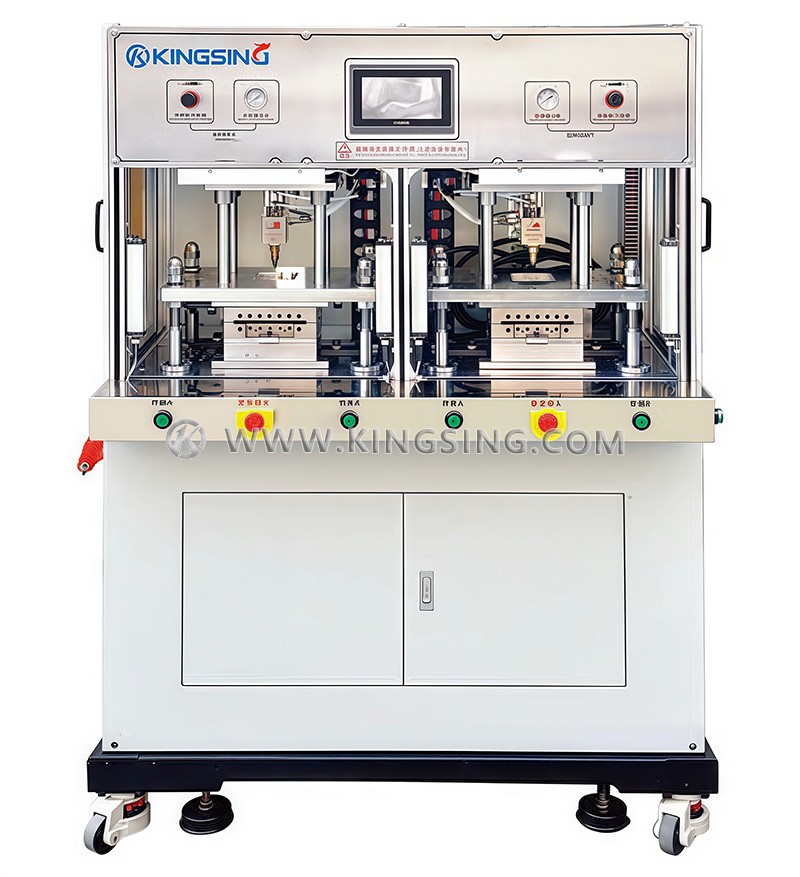

The machine features two fully independent workstations, enabling alternating operations: while one side performs injection molding, the other side can be loaded or unloaded simultaneously. This design dramatically increases productivity and reduces idle time, making it perfect for both high-volume production and small-batch prototyping.

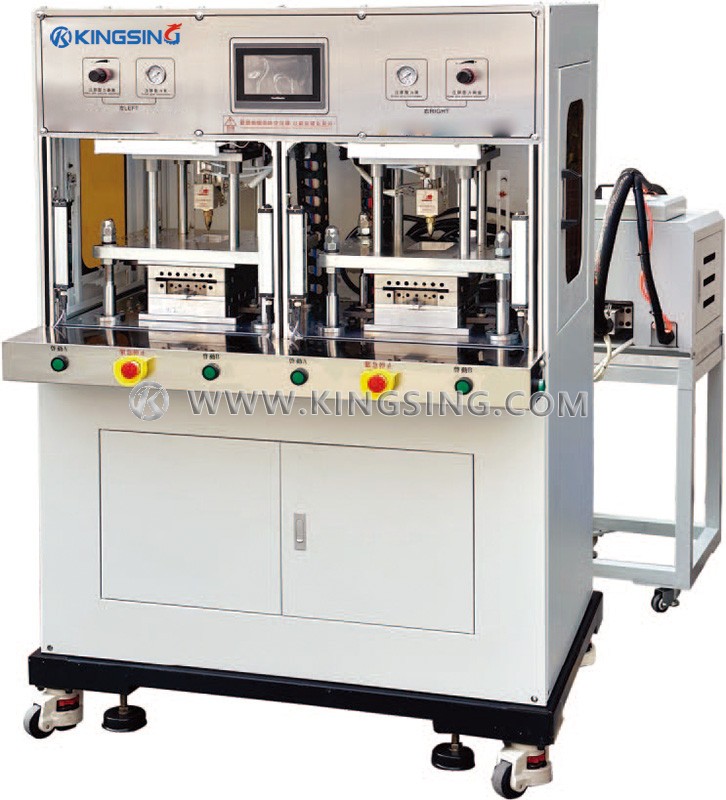

Equipped with a touchscreen PLC control system, the machine provides real-time monitoring, process visualization, and intuitive operation. Safety is enhanced with emergency stop functions, light curtains, and independent station control. The compact vertical design optimizes workspace usage while delivering stable, repeatable performance across production cycles.
| Model | KS-J1200T | KS-J1200HT |
|---|---|---|
| Clamping Force | 1 ton | 5 ton |
| Injection Pressure | 1.5–4 kg/cm² | |
| Theoretical Injection Volume | 5–50 g/oz | |
| Nozzle Stroke | 100 mm | |
| Temperature Control Zones | 3 sections | |
| Glue Cylinder Capacity | 5 L | |
| Mold Opening Force | 0.4 ton | |
| Platen Size | 1090 × 400 mm | |
| Tie Bar Spacing | 360 × 230 mm | |
| Mold Opening Stroke | 160 mm | |
| Max Mold Opening Distance | 280 mm | |
| Min Mold Thickness | 120 mm | |
| Ejector Force | 0.1 ton | |
| Ejector Stroke | 10 mm | |
| Main Air Pressure | 5.0–7.0 kgf/cm² | |
| Power Supply | 220 V (customizable) | |
| Motor Power | 0.4 kW | |
| Heating Power | 8 kW | |
| Total Power | 8.4 kW | |
| Theoretical Machine Weight | 0.75 ton | |
| Machine Dimensions (with glue tank) | 2150 × 1350 × 1640 mm | |
| Glue Tube Diameter/Length | Φ8 × 1500 mm | |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
