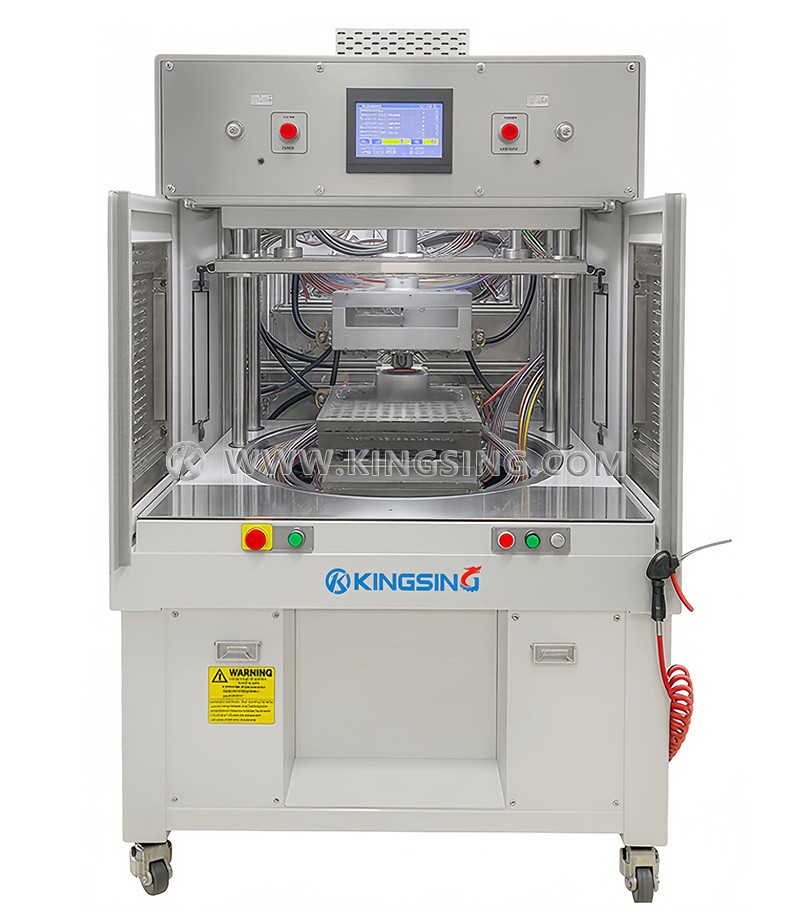

The rotary table hot runner injection molding machine is engineered for low-pressure molding applications, integrating a precision rotary indexing system to enable high-efficiency, stable-cycle production in multi-cavity setups.

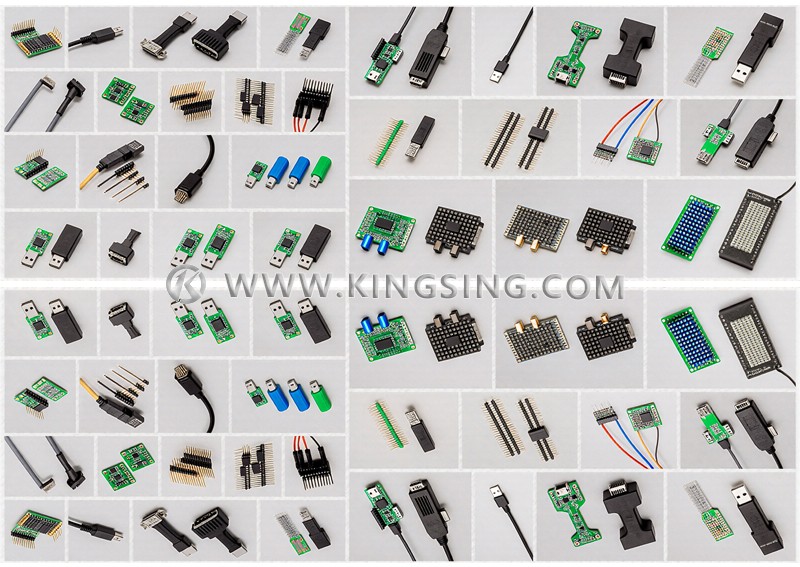

Featuring a top-injection hot runner system, this machine eliminates cold slug formation, reduces material waste, and ensures superior surface finish and part consistency—ideal for encapsulating sensitive electronic components such as sensors, connectors, and PCB modules.
Equipped with PLC control, a high-precision electric heating system, and disc-type mold positioning, it delivers reliable automation, simplified operation, and excellent repeatability for small to mid-volume manufacturing across the electronics and smart device industries.
| Model | KS-J1160R | KS-J1160LR |
|---|---|---|
| Hose Diameter / Length | Φ8 × 1500 mm | 25 mm |
| Injection Pressure | 1.5–4 kg/cm² | 0–40 kg/cm² |
| Theoretical Ejection Capacity | 2–50 g / oz | 150 g / oz |
| Nozzle Stroke | 50 mm | 150 mm |
| Rubber Cylinder Capacity | 6 L | 3 L |
| Clamping Force | 1–5 Tons (customizable) | 10 Tons |
| Opening Force | 0.4 Tons | 7 Tons |
| Platen Size | 600 mm | |
| Mold Column Spacing | 300 × 150 mm | |
| Clamping Stroke | 150 mm | 180 mm |
| Maximum Mold Opening Spacing | 250–330 mm (customizable) | 330 mm |
| Minimum Mold Thickness | 100–180 mm (customizable) | 200 mm (customizable) |
| Ejection Force | 0.2 Tons | 1 Ton |
| Ejection Stroke | 50 mm | |
| Main Intake Pressure | 5.0–7.0 kg/cm² | |
| Power Requirement | 380 V | |
| Motor Power | 0.2 kW | 9 kW |
| Total Wattage | 3.0 kW | |
| Working Power | 6.8 kW | |
| Machine Weight | 0.80 Tons | 800 kg |
| Machine Dimensions (L×W×H) | 1.06 × 1.18 × 1.70 m | 1.70 × 0.90 × 1.90 m |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
