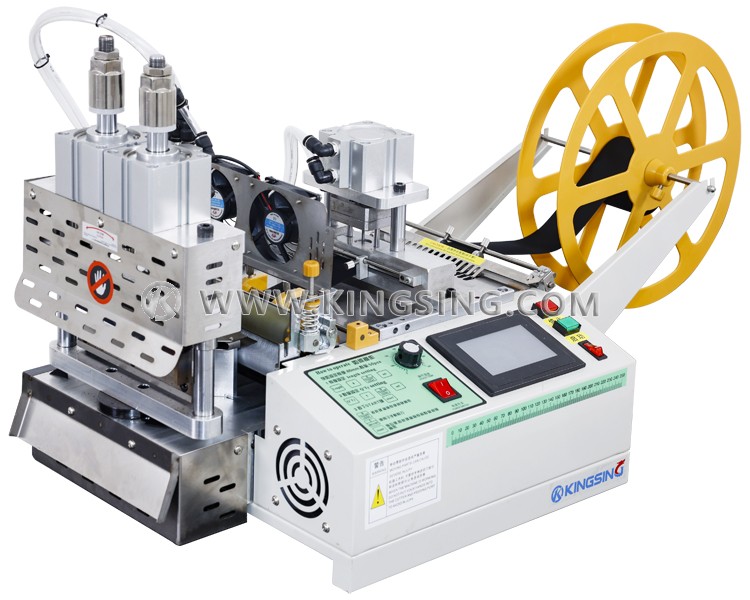

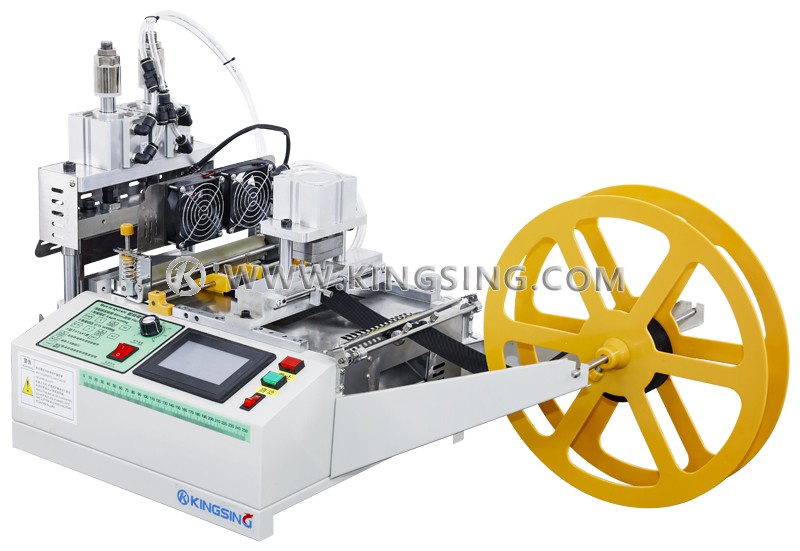

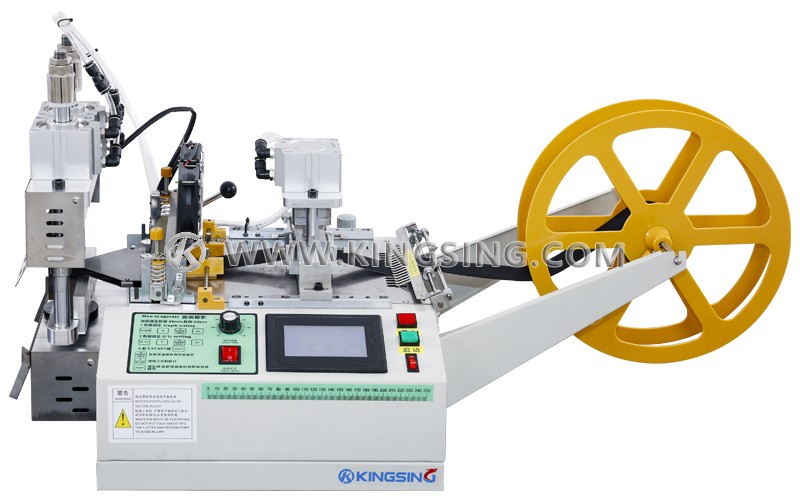

Customized Rotary Angle Tape Cutting and Hole Punching Machine

  • Model:KS-120MAC
  • Max. Width:
  • Blade Type:
  • Net. Weight:
  • Dimension:

Core Features:
Integrates "punching" and "multi-angle cutting" functions, enabling precise processing of various materials.

Applicable Materials:
Webbing, elastic bands, Velcro straps, leather, non-woven fabrics, plastic tapes, paper tapes, and other flexible or semi-rigid materials.

✅ Multi-Angle Adjustable Cutting: Enables arbitrary angle cutting to meet complex design requirements.
✅ High Precision & High Efficiency: Computer-controlled with precise angle adjustment ensures consistency in mass production and significantly improves processing efficiency.
✅ Smart Human-Machine Interface (HMI): Touchscreen operation with an intuitive interface for easy and clear parameter setting.
✅ Wide Application Range: One machine can handle diverse materials and cutting patterns, reducing equipment investment costs.
✅ High Stability: Equipped with industrial-grade controllers for reliable, stable operation and low failure rate.


Download: (1)

Model: KS-120MAC

Knife Type: Cold & Hot Knife

Cutter Driving Mode: Pneumatic

Cutting Width: Max. 180mm (straight cut) / 90mm (bevel cut)

Cutting Length: Max. 9999.9mm

Rated Power: 900W

Heating Temperature: 0 ~ 350℃

Speed: 2000~3000pcs/hour (depends on the cutting angle and length)

Operation Temperature: 0 ~ 40℃

Power Supply: Standard AC220V 50Hz (110V is customized)

Air Pressure: 0.5~0.7MPa (Clean, dry, stable compressed air)

Environment Humidity: 30% ~ 80%RH (No condensation at 40℃)

Net Weight: 36Kg

Dimension (L×W×H): 520×480×500mm (Protrusions are not included)
