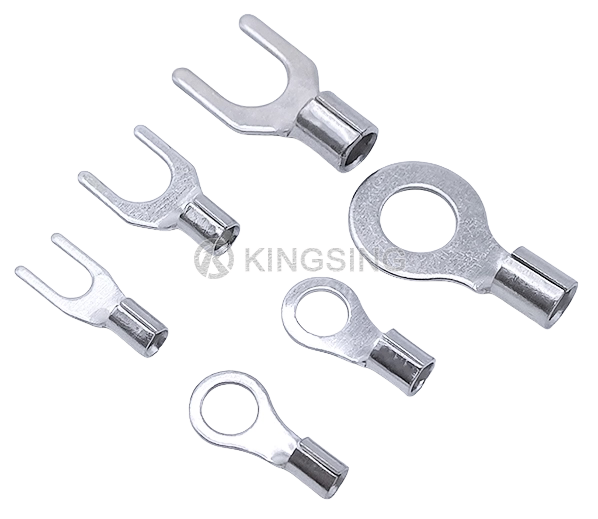

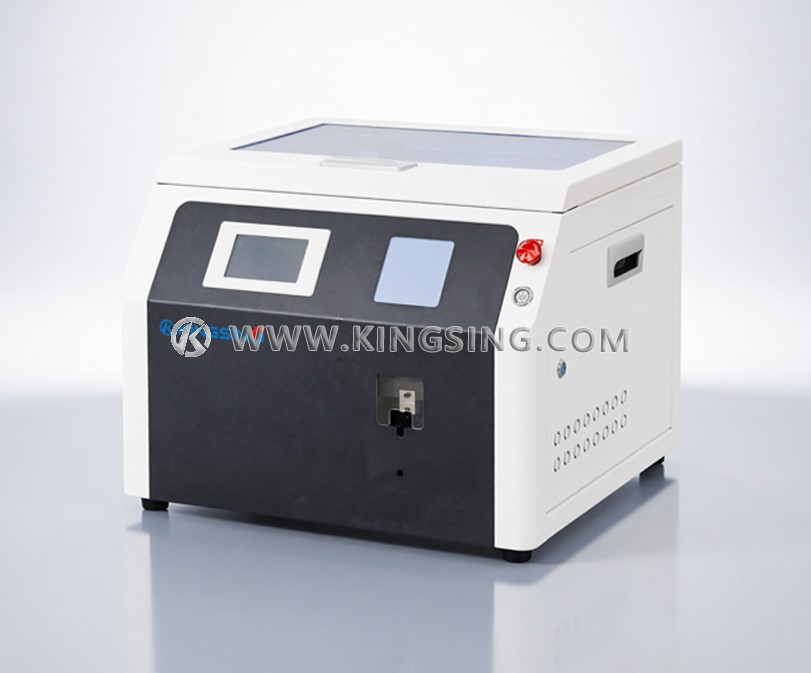

This servo-driven terminal crimping machine delivers high-precision processing of bare ring and spade terminals (UT and OT types). It integrates wire stripping, copper wire twisting, and terminal crimping into a single automated workflow, ensuring consistent and reliable results for industrial wire harness production.
Equipped with advanced servo motor technology and precision ball screw drive system, the machine ensures exceptional accuracy and stable performance throughout extended production cycles. The intuitive touchscreen interface with PLC control enables effortless operation, program storage, and rapid parameter recall for enhanced productivity.
The innovative micro vibration bowl feeding unit accommodates multiple terminal sizes without requiring bowl replacements, significantly streamlining production workflows. Operators simply position the wire, and the machine automatically completes all processing operations while maintaining precise alignment throughout the entire cycle.
Key features include integrated wire twisting functionality to prevent copper strand spreading, advanced upper and lower blade compression technology for superior crimp quality, and quick blade switching capability for different terminal dimensions. Intelligent safety systems provide automatic material sensing, terminal shortage detection, and protective enclosure operation for enhanced workplace safety.
Ideal for electric control cabinets, power distribution systems, household appliances, and automotive wiring harnesses, this machine maximizes production efficiency while minimizing training requirements for both experienced technicians and new operators in manufacturing environments.
| Applicable Terminal Types | Bare Ring and Spade Terminals |
| Applicable Wire Size | 0.5–6 mm² |
| Max. Stripping Length | 18 mm |
| Max. Crimping Length | 12 mm |
| Crimping Drive | Servo motor |
| Crimping Method | Upper and lower blade compression |
| Processing Capacity | 1000–1200 pcs/hour |
| Control Method | Touch screen + PLC control |
| Pneumatic Device | AirTAC pneumatic components |
| Power Supply | AC 220 V 50/60 Hz (customizable) |
| Net Weight | 98 kg |
| Dimensions | 550 × 500 × 420 mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
