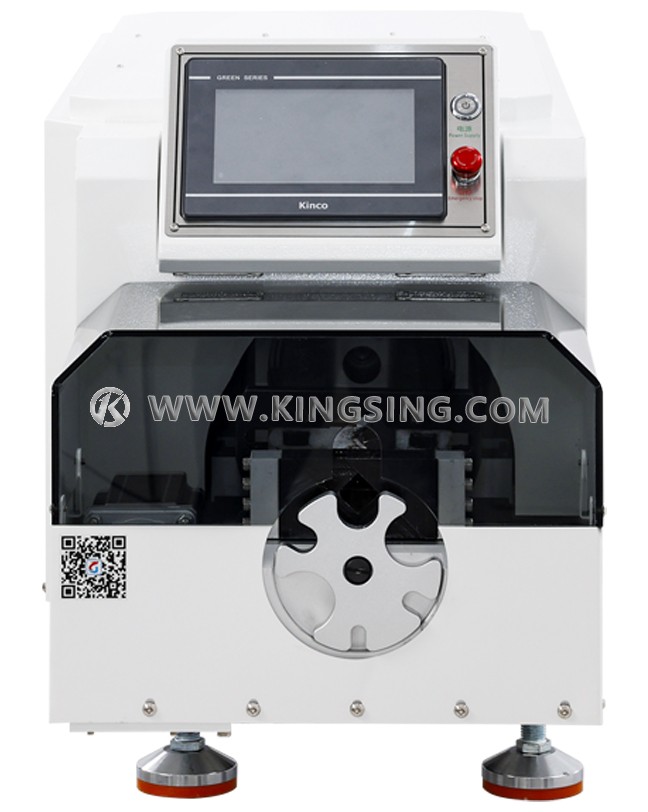

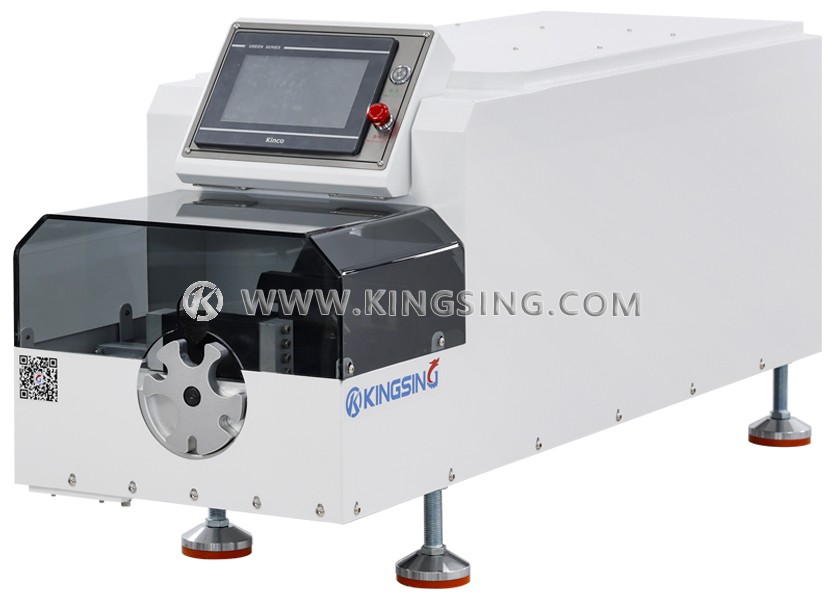

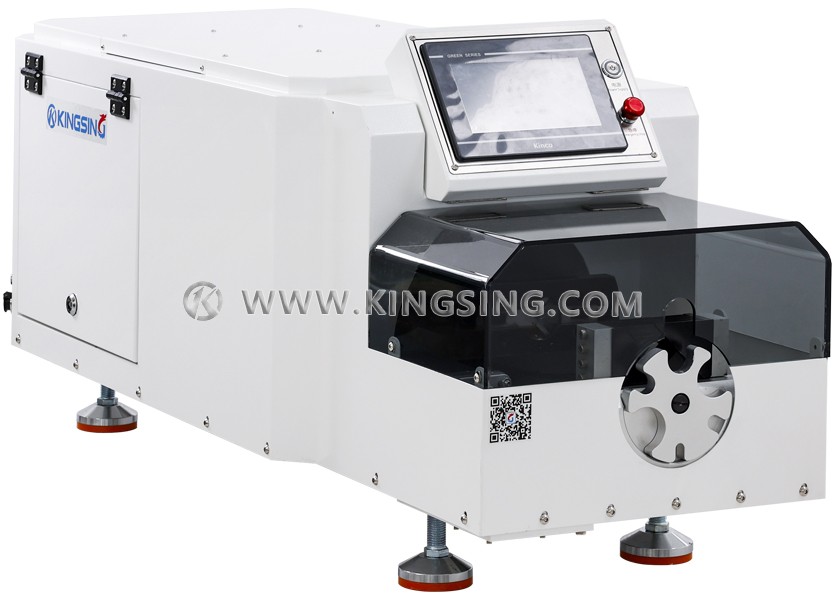

The system utilizes a combination of PLC (Programmable Logic Controller) and a touch screen control interface. This setup enables users to operate the equipment intuitively while ensuring stability and precise control. PLC offers highly flexible programming capabilities, allowing the machine to adapt to different types of cable stripping requirements.
Rotary Cutting: Employs rotary blades to cut the cable. This method ensures a fast and uniform cutting process, minimizing damage to the cable.
Motor and Lead Screw Stripping: Driven by a motor and combined with a lead screw mechanism, this method ensures stability and continuity during the stripping process.
The motor provides power for high-speed operation, while the lead screw enhances stripping precision,
making it suitable for cables of various thicknesses and materials.
Cutting Stroke: Model 300: 0-34mm
Stripping Stroke: Model 300: 0-300mm
Stripping Diameter: Model 300: 12-50mm
Power Supply: 220V 50-60Hz
Air Pressure: 0.5-0.7Mp
Power: 500W
Stripping Tolerance: ±0.2
Speed: 10-30 pieces/minute
Dimensions: 900x400x420mm
Weight: Model 300: 160Kg
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
