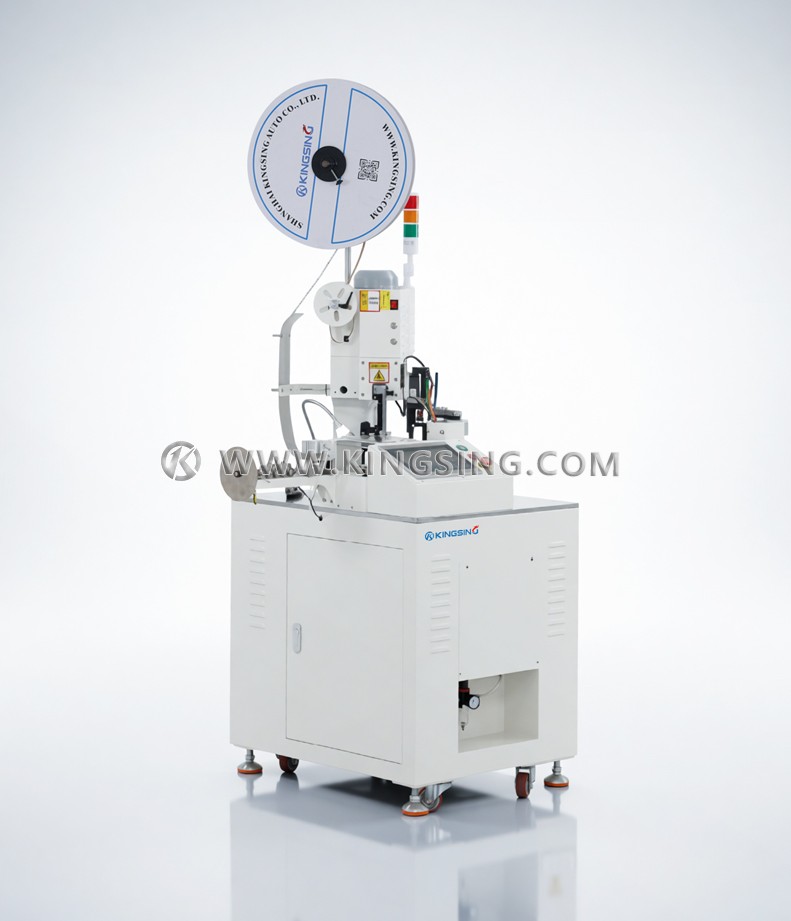

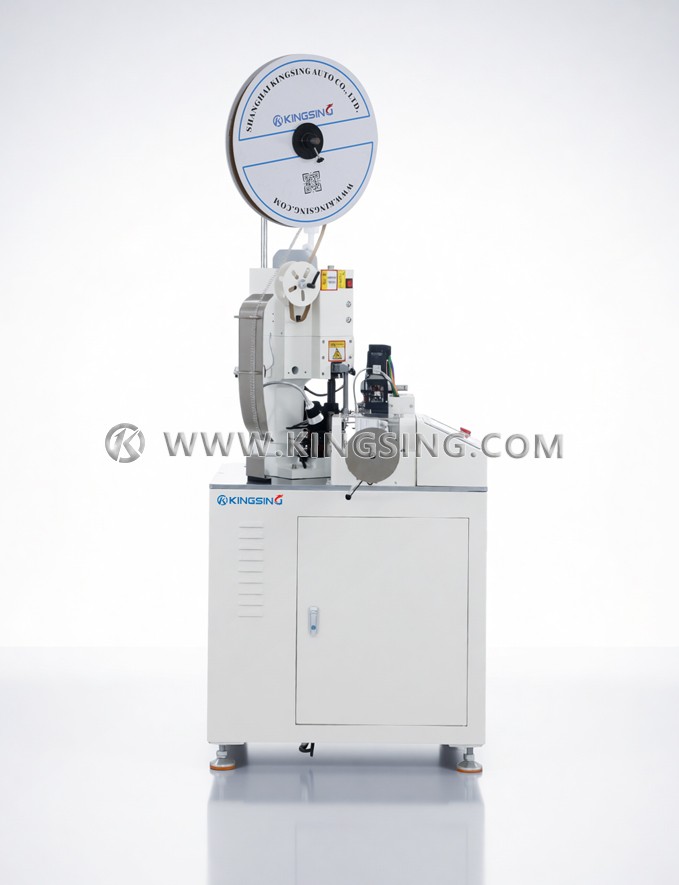

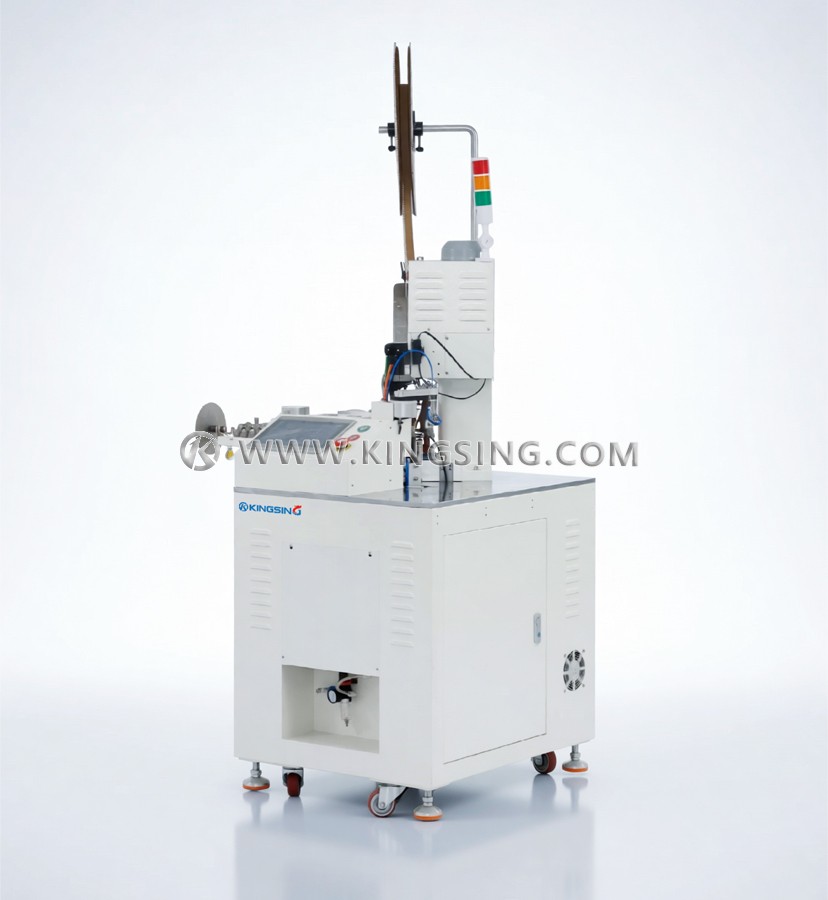

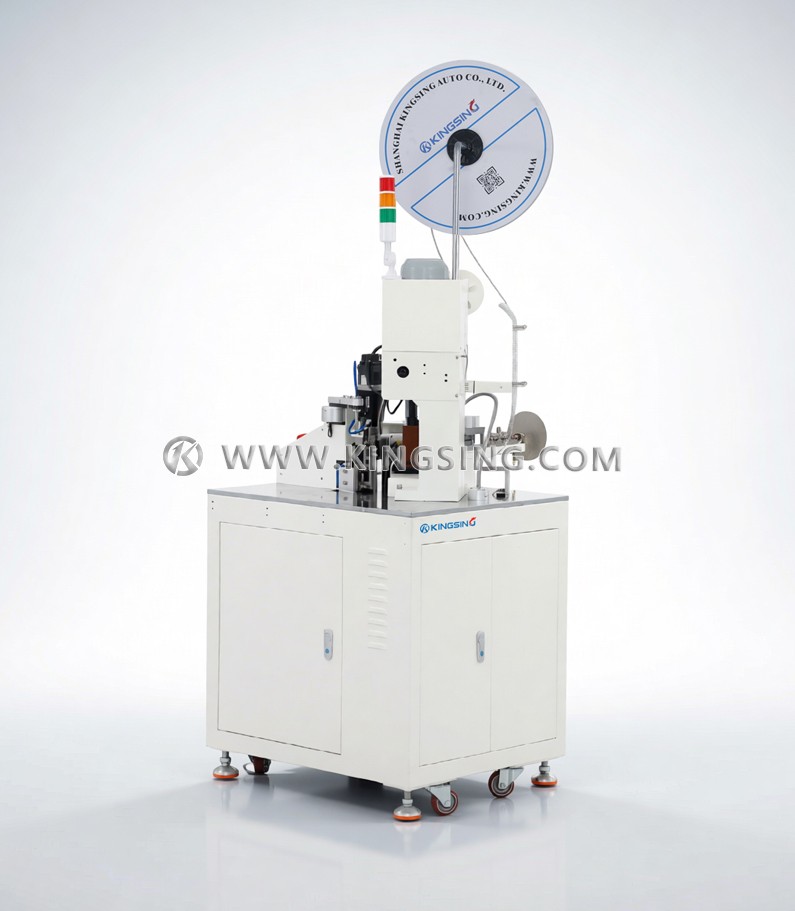

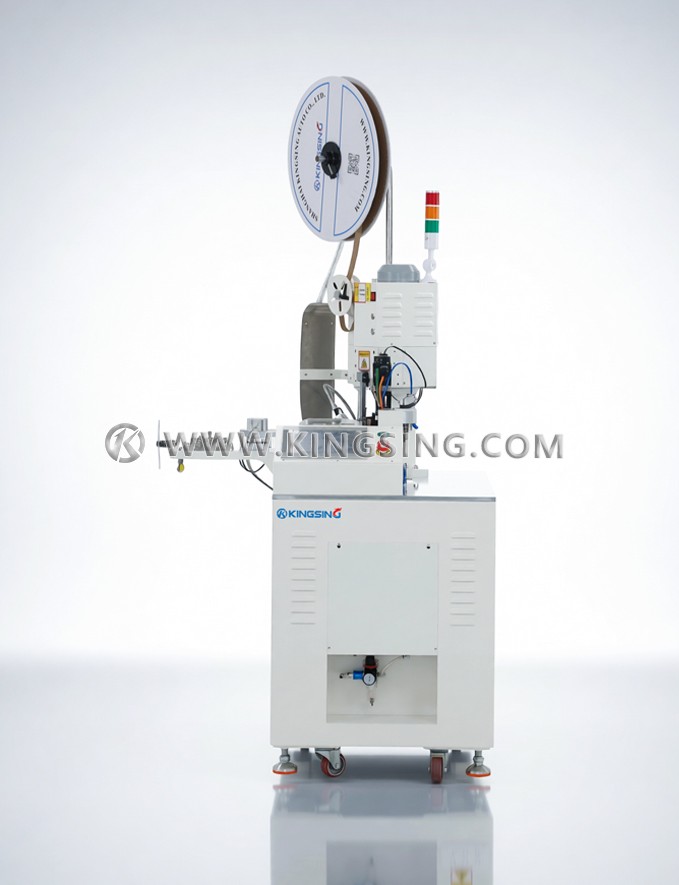

Twin Parallel Wire Stripping and Terminal Crimping Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

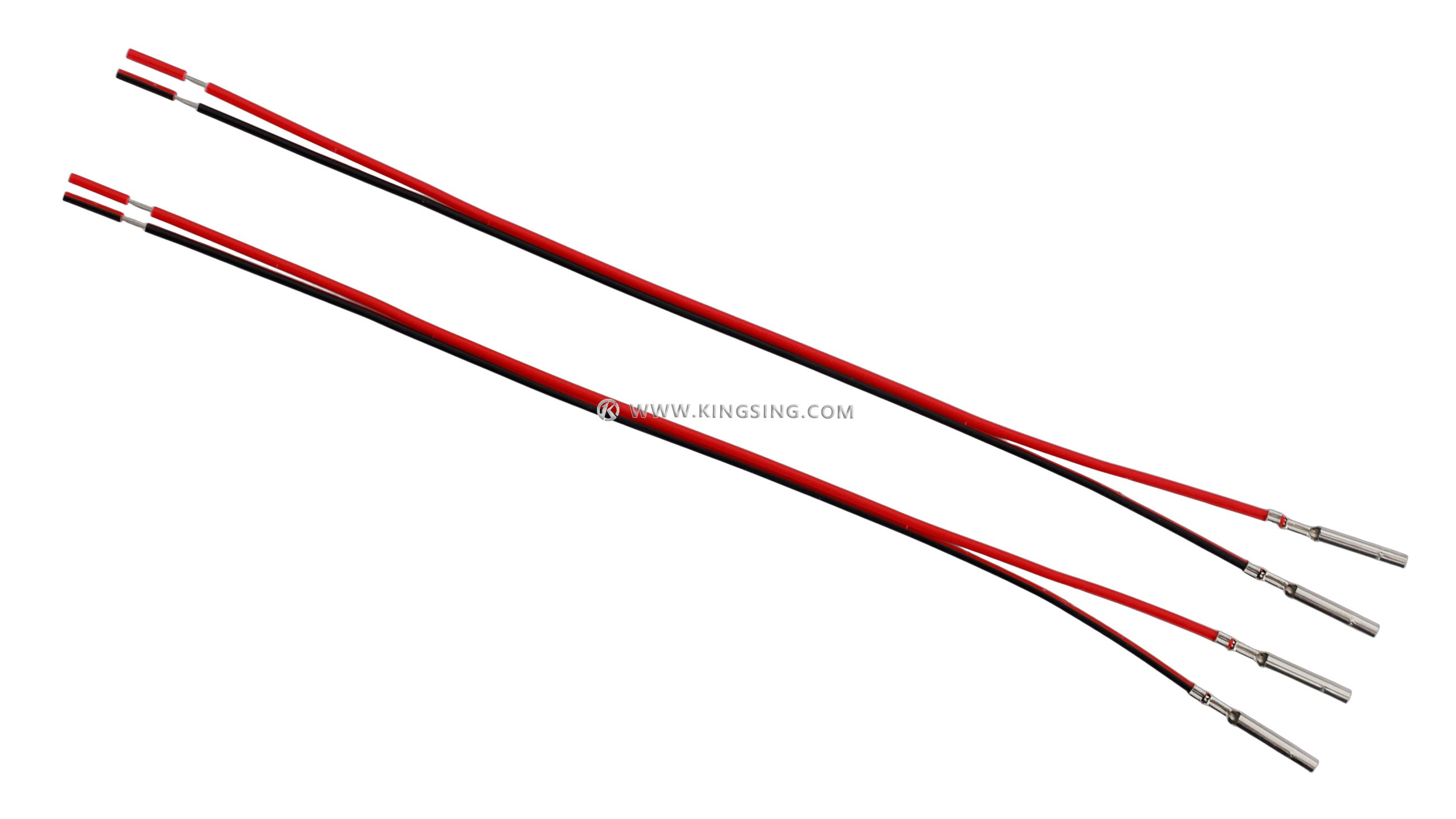

Twin parallel wire stripping and terminal crimping machine is specially designed for processing twin parallel wires. It integrates the functions of cutting, stripping, splitting, crimping, twisting. It is only applicable to cross-feed terminals when processing twin parallel wire. This machine can also process ordinary electronic wiring harnesses, and it is only necessary to simply change the applicator and the conduit. It is suitable for various horizontal and side feeding terminals when processing single wires. OTP card applicators are easy to change, the color touch screen system is intuitive and easy to understand, and the machine can be operated quickly with simple training. This machine has a program storage function, which can store the processing parameters of different wire harnesses into different programs, and is especially suitable for the occasions where a large variety of wire materials are processed.

Download: (1)

Main Function: Cutting, stripping, slitting, crimping

Applicable Wire: 0.08～2.5mm²（AWG13-AWG28）

Stripping Length: 0～10mm

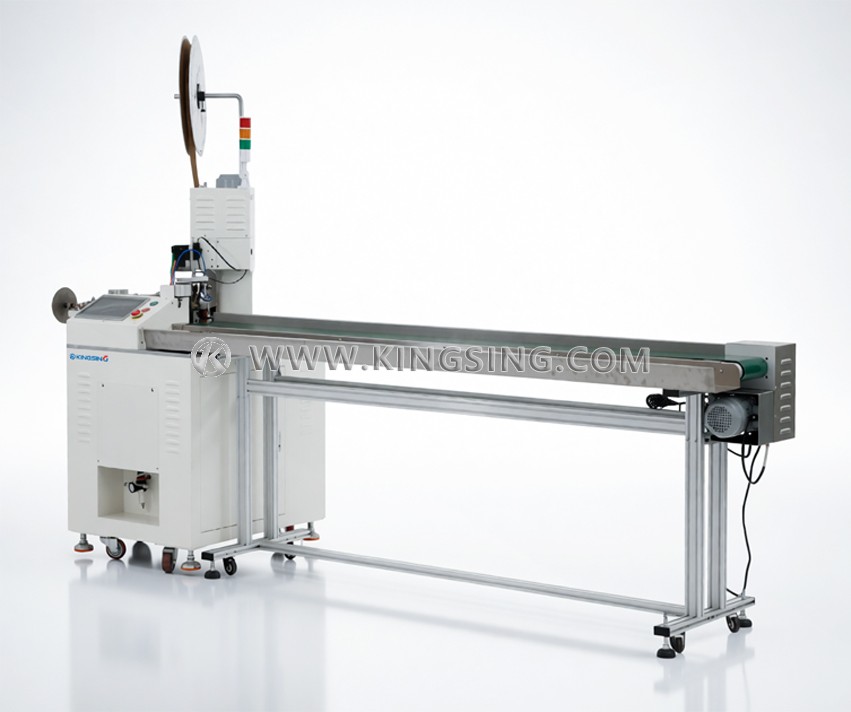

Cutting Length: 20～1500mm (>800mm, conveyor belt is optional)

Stripping Accuracy: ±(0.002mm×stripping length)

Cutting Accuracy: ±(0.002mm×cutting length)

Crimping Stroke: 30mm (40mm can be customized)

Crimping Force: 2Ton (Can be customized)

Display Mode: 7inch color touch screen

Power Rating: 850W

Capacity: 1500PCS/Hour

Air Pressure: 0.5~0.7Mpa (Must be clean, dry and stable compressed air)

Power Supply: Standard 220V 50/60Hz (110V can be customized)

Optional Function: Prefeeder, long wire conveyor belt, twisting device, slitting device, tinning, crimping force monitor, etc.

Dimension (L×W×H): 700×600×1500mm

Net Weight: 210Kg

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
