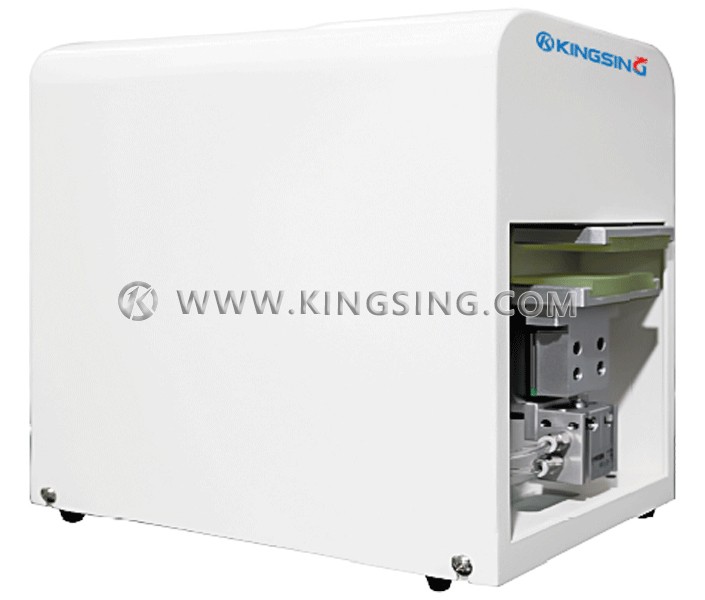

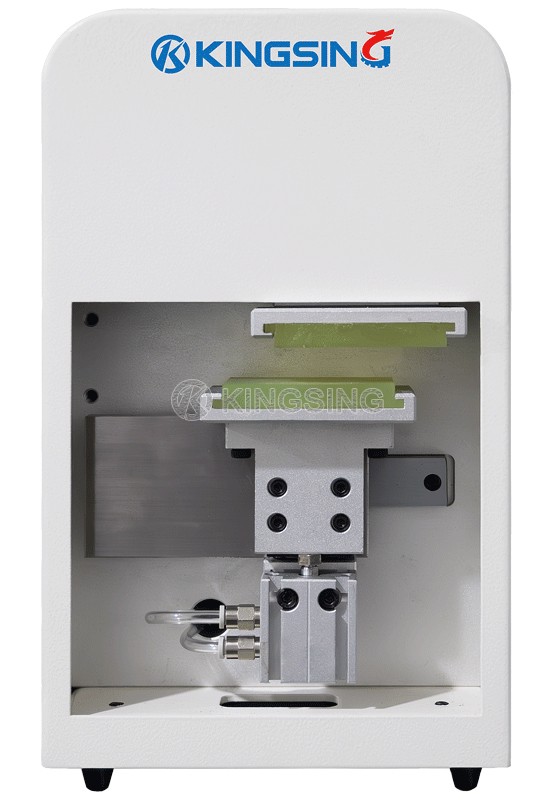

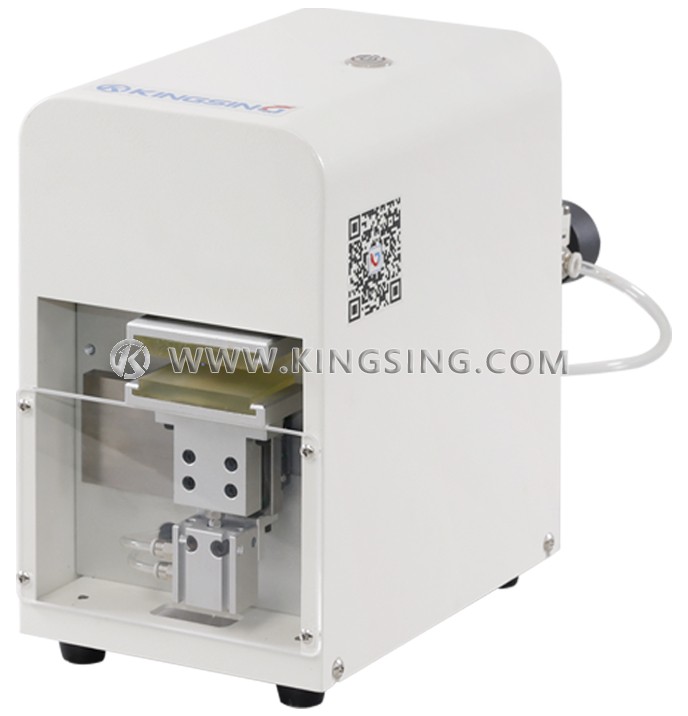

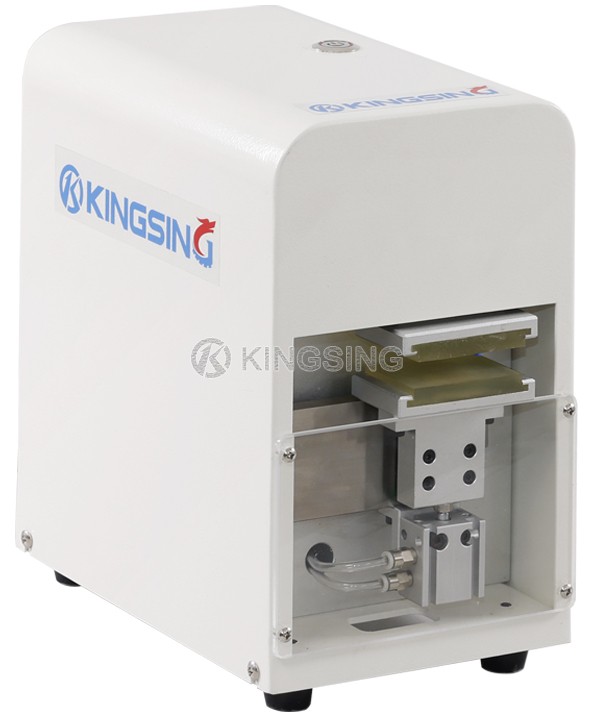

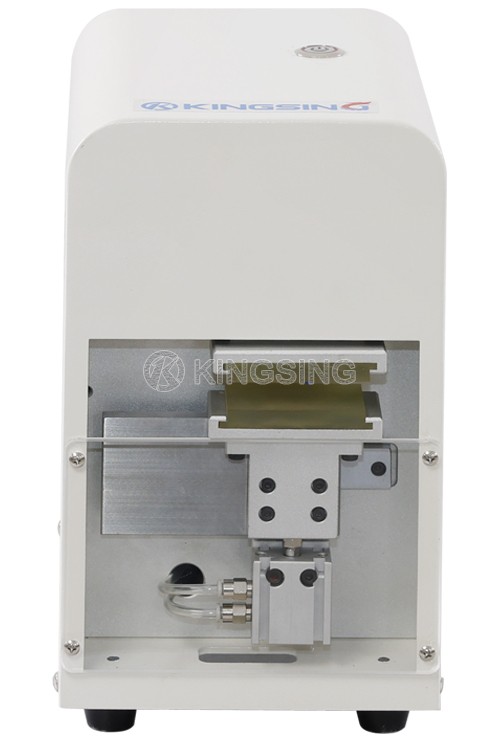

Network Cable Straightening Machine

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

Device Function

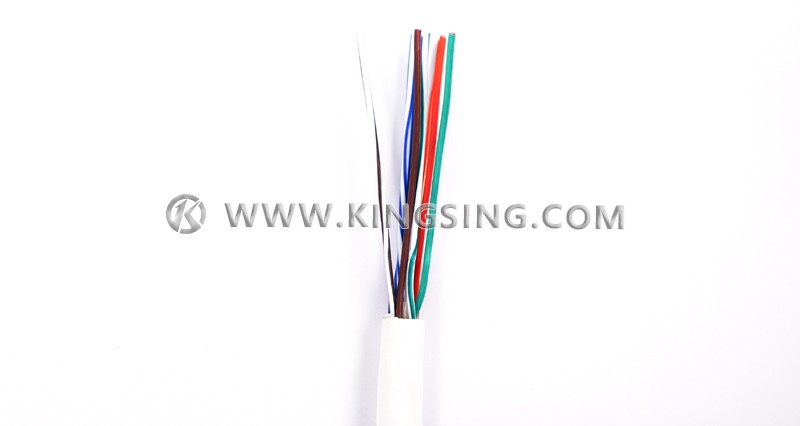

Applicable for splitting, untwisting, and straightening various types of twisted pair and multi-strand cables.

Features

◇ The gap and frequency of the splitting mechanism can be adjusted through the control of cylinder stroke and delay, meeting the needs of cables with different specifications.

◇ The splitting force can be adjusted according to the thickness of the cables to prevent breakage caused by excessive force.

◇ Simple and compact mechanical structure, offering high flexibility.

◇ Highly efficient in cable straightening, saving both time and effort.

◇ Easy to operate, portable, and highly effective in use.


Download: (1)

Applicable Cable: Twisted cable straightening
Stripping Length: 10-60mm
Power: 200W
Weight: Approx. 10KG
Main Dimensions: 230mm×150mm×260mm
Blade Quantity: 2 blades, 2 centering blades
Device Functions: Splitting, straightening, untwisting
Air Pressure: 0.5-0.8MPa
Voltage: AC220V 50/60Hz

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
