Main Function

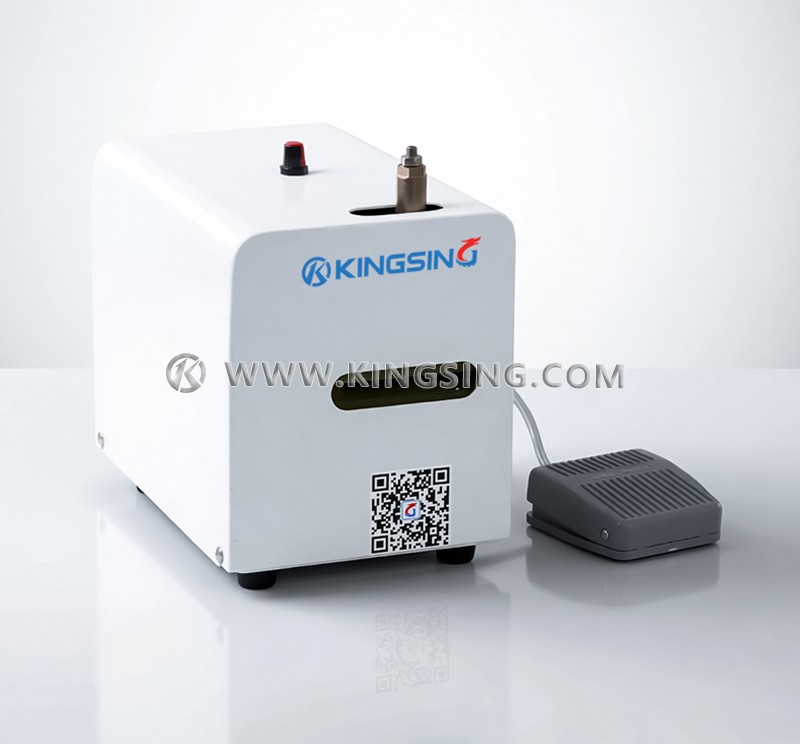

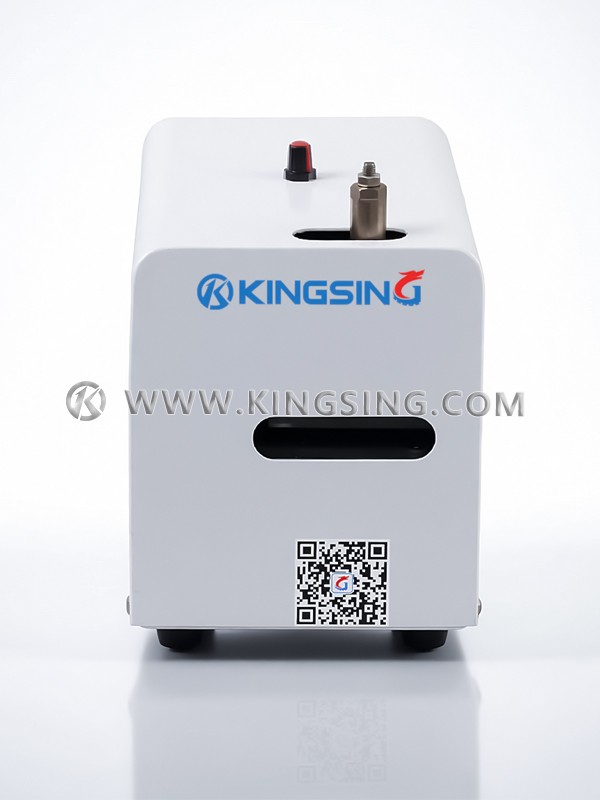

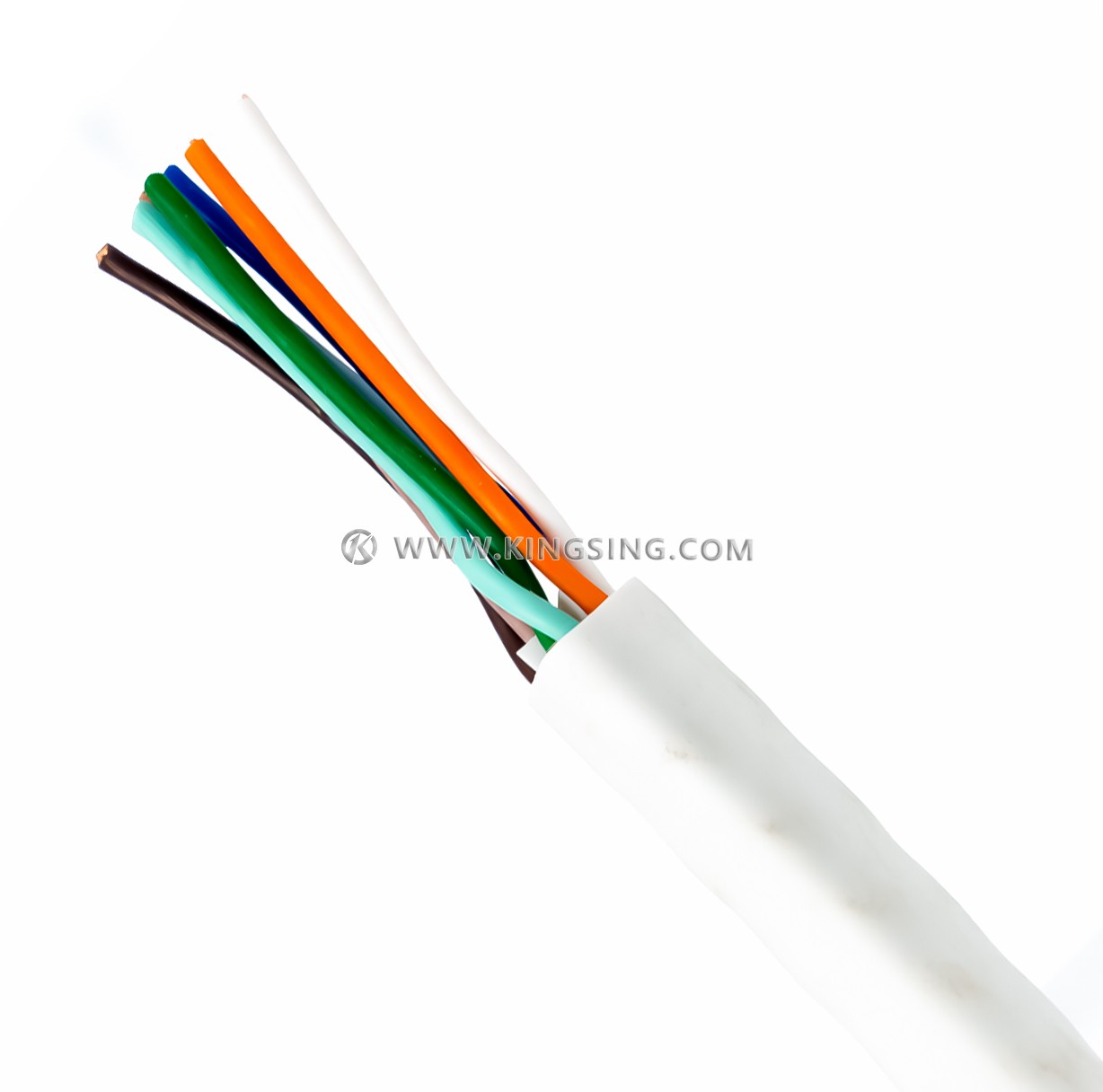

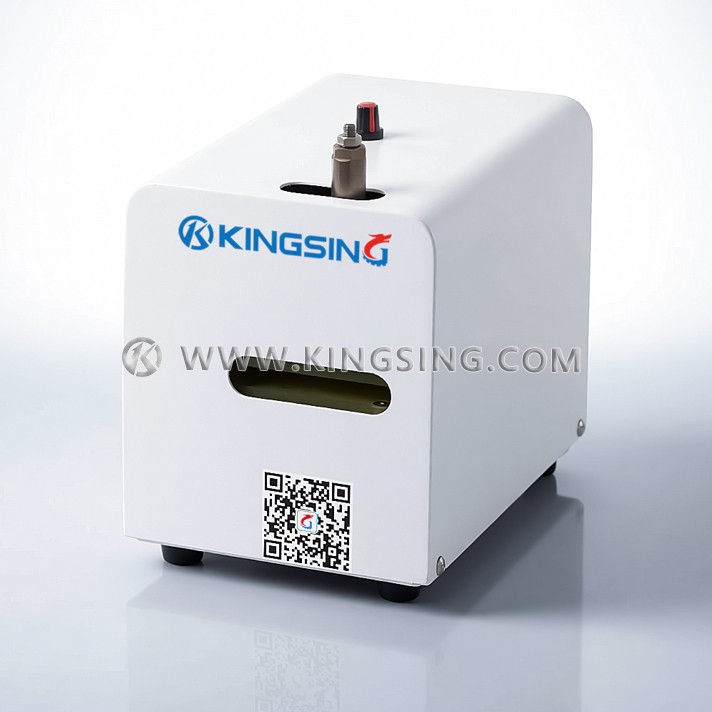

Used for untwisting, separating, and straightening various types of network cables and twisted multi-strand wires.
Equipment Features
High Adaptability: The gap between the rubbing plates and the operation frequency can be controlled by adjusting the cylinder stroke and time delay, accommodating the needs of wires with different specifications.
Cable Protection: The straightening force can be adjusted according to the thickness of the cable, preventing cable breakage caused by excessive force.
Compact Design: Features a simple and compact mechanical structure, offering high flexibility in operation.
Efficient & Labor-Saving: The straightening efficiency is exceptionally high, saving both time and effort.
Portable & User-Friendly: Simple to operate, easy to carry, and highly efficient in completing tasks.
Untwisting Length: 10-60mm
Applicable Wire: Straightening twisted wires
Voltage: AC 220V 50/60Hz
Control Method: Foot pedal switch
Air Supply: 0.5-0.8 MPa
Power: 200 W
Weight: 10 kg
Dimensions: Approx. L105 × W230 × H185 mm
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
