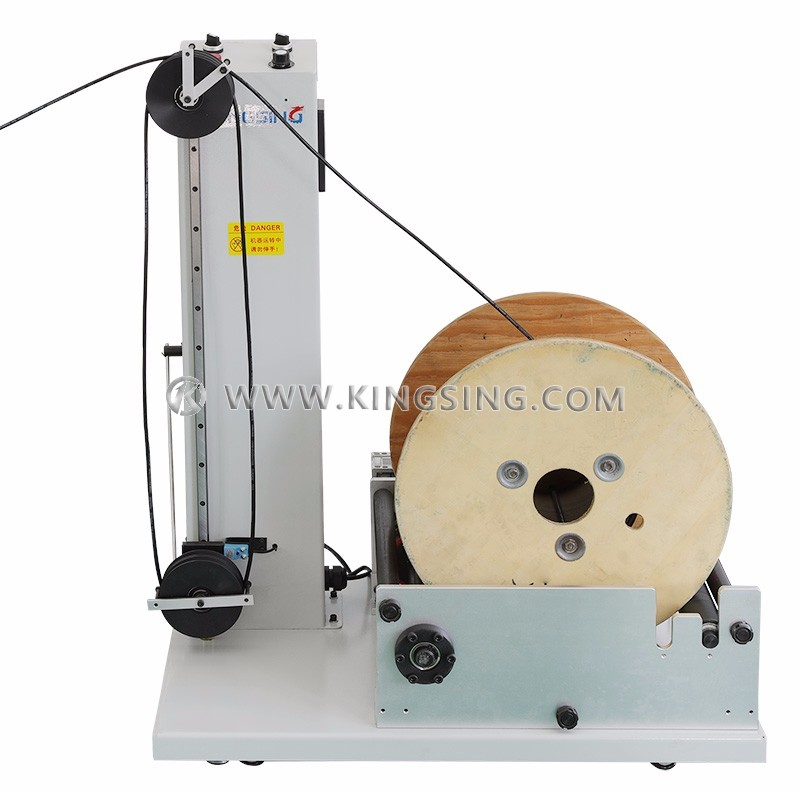

Heavy-duty Cable Spool Dereeling Machine

  • Model:KS-W240
  • Net. Weight:
  • Dimension:

This is a powerful cable feeding system for reels weighing up to 100Kg with diameter ranging from 300mm to 600mm, it provides a constant tension to downstream wire processing machines, the feeding process allows rapid acceleration of the spool while maintaining low forces on the material being fed.

  • Thanks to the closed loop concept the cable prefeeder can be integrated easily in o a processing line as a stand-alone system.

  • A moveable dancer pulley allows the prefeeder to easily respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines.

  • It has a large wire accumulation capacity, the pulley block can store up to 4m wires in advance to ensure high speed prefeeding condition.

  • The cable dereeler uses a shaftless design for easy loading and unloading of reels.


Download: (1) (2)

Power Supply: AC 220V 50Hz/60Hz

Wire Feeding Speed: about 2m/s

Storage Capacity: about 4m

Available Wire Diameter: Φ0.5~10mm

Wire Spool Diameter: 300~600mm

Wire Spool Width: Max. 250mm

Wire Spool Weight: Max. 100Kg

Net Weight: 78Kg

Dimension: 800×680×1000mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:
  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
