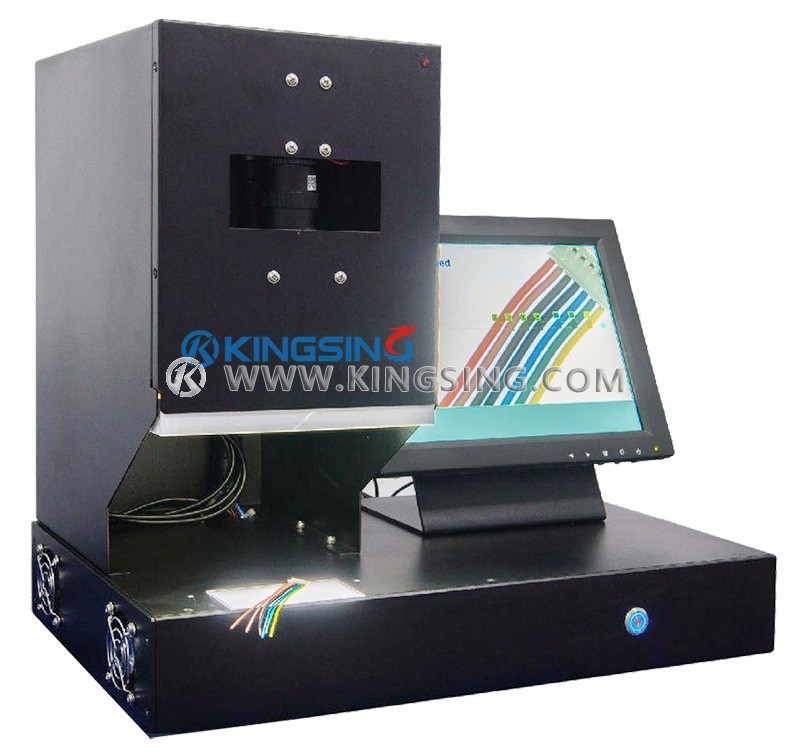

Wiring Harness Color Sequence Detector

  • Model：KS-A600
  • Net. Weight：
  • Dimension：
Online Inquiry
The wiring harness in the terminal connector usually needs to be arranged according to a certain color sequence, manual inspection often causes misdiagnosis or missed inspection due to eye fatigue. The wire sequence inspecting device adopts vision technology and intelligent algorithms to determine compliance with preset standards, automatically identify the color of the harness and mark the output, so as to make sure the wiring sequence is 100% correct. Connectivity testing and marking functions are optional.
KINGSING

  1. You can place the connector's front or back side in the detecting area freely, and there is no need to limit the product's position, the wire color sequence detector can idendify it automatically.

  2. After the wire is placed in the area to be tested, the machine automatically starts to recognize without touching any switch, it takes only 0.1 seconds to get the result.

  3. Super anti-interference ability, wire surface printed with character or color ring does not affect the test.

  4. we can customize the conductive test function according to your product, as well as qualified product marking function, which can greatly improve work efficiency.

Download: (1) (2)

Power Rating: 35W
Power Supply: 220V 50/60Hz
Net. Weight: 8.5Kg
Dimension: 430×300×430mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
