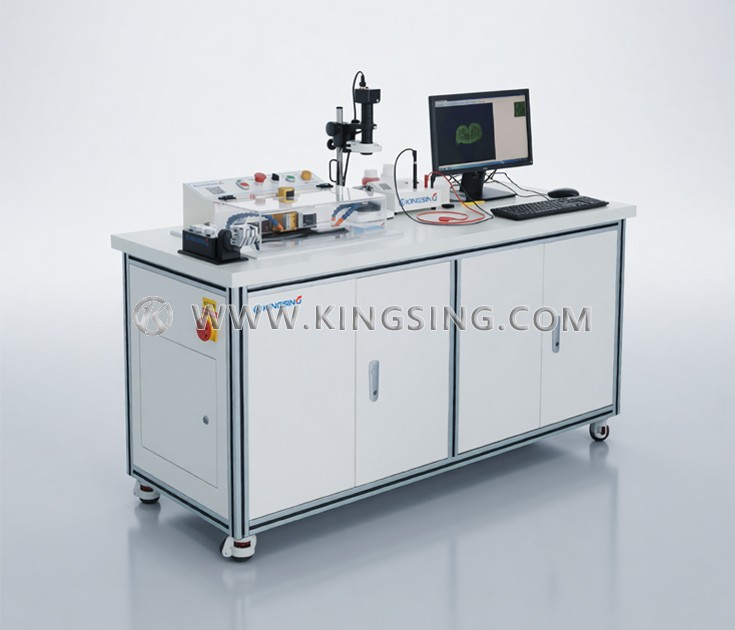

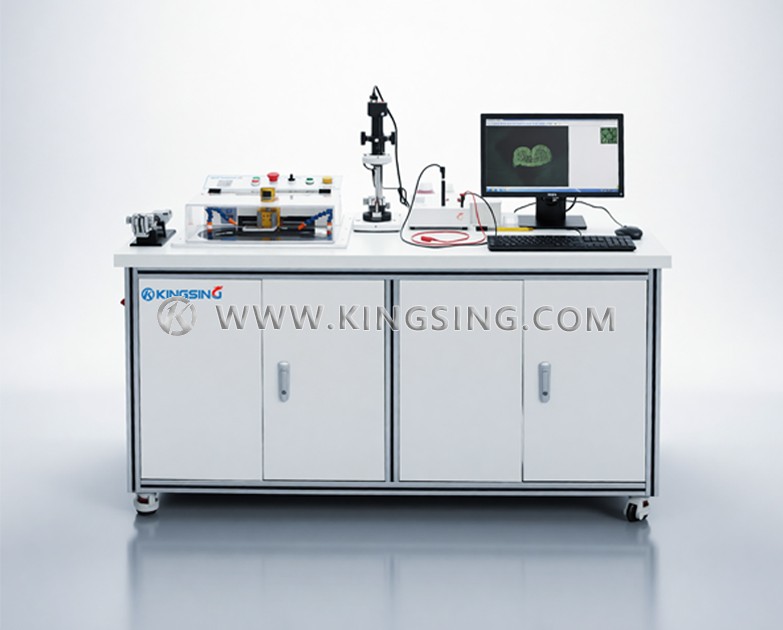

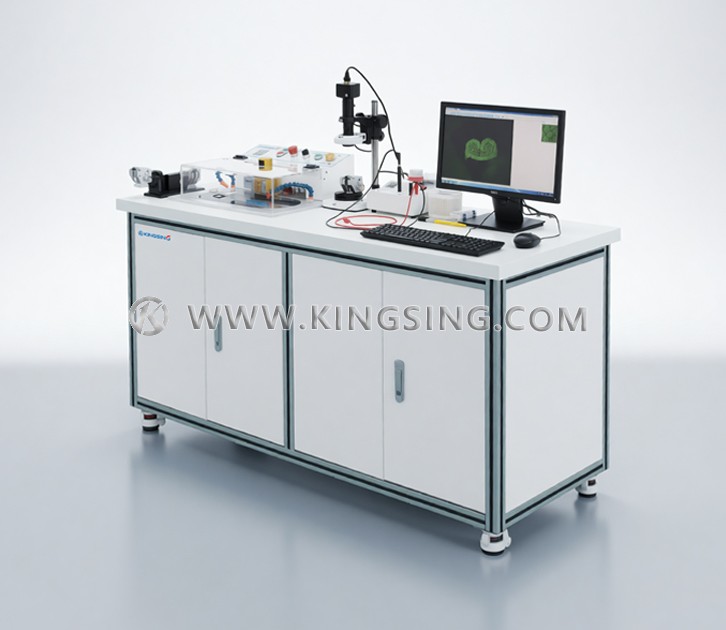

Heavy-duty Automatic Terminal Cross Section Analysis System

  • Model：KS-A531
  • Net. Weight：
  • Dimension：
Online Inquiry

1. Rapid process only takes two to five minutes.
2. The status of inside and outside pins can be analyzed.
3. Easy to learn and operate.
4. Design working position according to the principle of human body mechanics. It is very comfortable to operate.
5. Apply to the best corrosive treatment. It is safe and harmless to human body
6. Micrographs are taken with a high-resolution digital camera
7. Equip with analysis and archiving software in both Chinese and English
Sample completed! Only 5 minutes! It is a High-quality and low distortion optical instrument.

Download: (1)

1. Special analyzer for wire harness terminal (imported from Germany, stepless autofocus system

2. Total multiplier of video: 20~300X

3. Range of application for wire harness terminal: 0.13mm²-85mm²

4. Power supply: AC100V~AC240V

5. Hd industrial USB 3.0 video system 5 mega-pixel

6. German ultra-thin terminal special cutting disc: Φ 180 x0. 5 mm

7. German abrasive stones: imported from Germany, 600# 1200# 2000#

8. Professional clamping slot type of fixture for harness terminal : 0.5mm²~85mm², suitable for punctured terminal

9. Precision automatic cutting table (including professional fixture): motor, 50~3000rpm, infinitely variable speeds

10. Precision automatic grinding table (including professional fixture): motor, 50~1500rpm, infinitely variable speeds

11. High precision automatic knife guide rail imported from Germany

12. 2013 German latest terminal special automatic analysis software -- international edition (it can automatically

+ identify whether more than 10 terminal standards are qualified), including softdog

13. High precision reference meter (including national certificate)

14. Corrosive treatment, special imported cleaning liquid for terminal, German patent, good cleaning effect, non-black,

unscented , non-toxic and environmental protection

15. Lighting source: all-white, adjustable for LUOS lighting device (cold light)

16. Overall dimension(W×D×H): 1800 X 650 X 750mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
