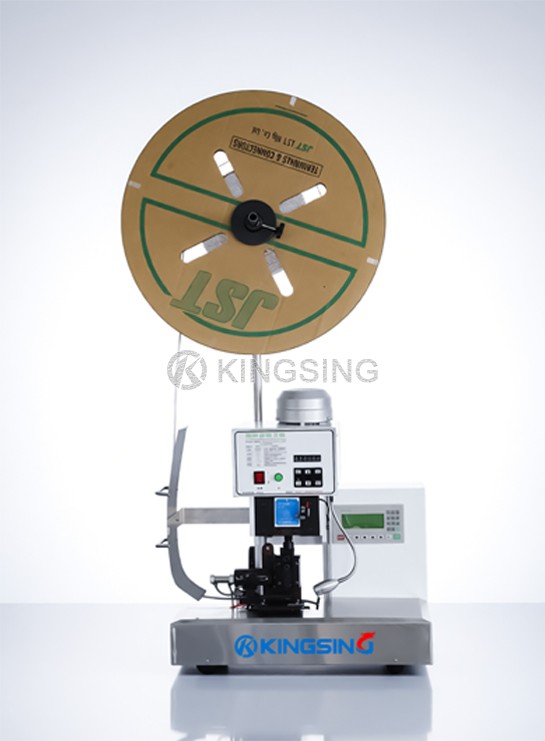

This is an economical film panel FFC flexible cable crimping machine, the operator only needs to put the wire into the positioning fixture. The machine can automatically send the wire to the position of the crimping and crimp the terminal. The number of pins of the wire and the position of the crimping can be set in the program. One machine can process a variety of different products, and the crimping applicator adopts a standard OTP bayonet, so it is convenient and quick to change the applicator.
Applicable wire: FFC flat cable, membrane switch panel
Pitch type: 1.27mm, 2.54mm, 5.08mm
Crimp times: up to 30Pin (depending on the pitch type)
Crimp stroke: 30mm
Air pressure: 0.4~0.6Mpa
Power supply: 220V 50/60Hz
Net weight: 50kg
Dimensions: 590*360*660mm
Note：
In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.
Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
