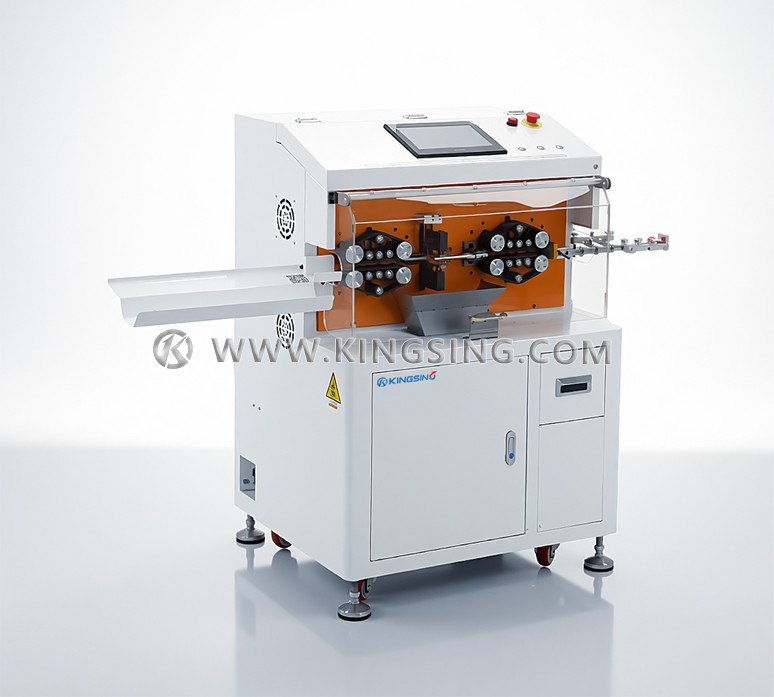

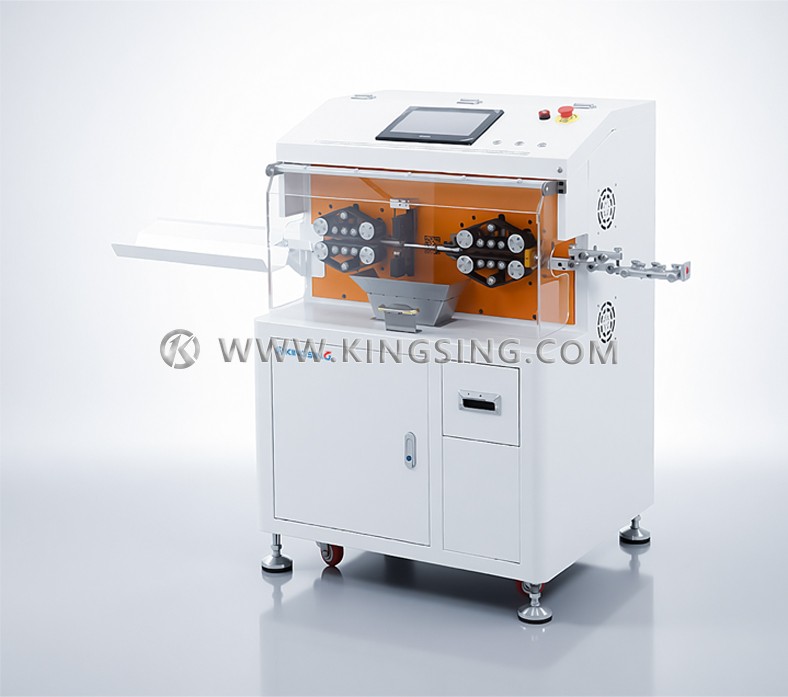

Multi-core Cable Cutting and Stripping Machine

  • Model:KS-W1022
  • Wire Size:
  • Net. Weight:
  • Dimension:

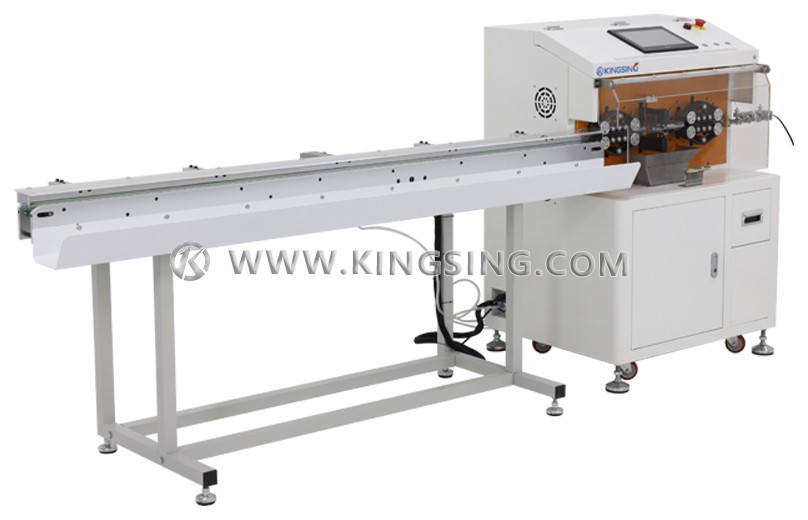

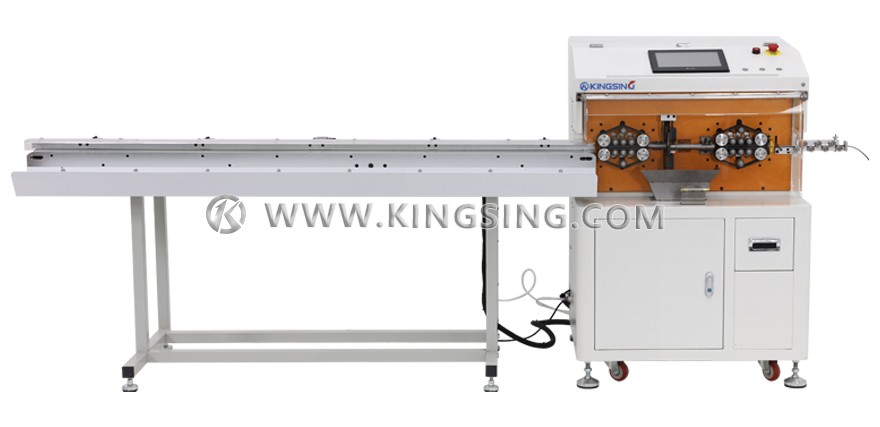

1.This is a servo-type sheath wire stripping machine. The wire feeding wheel and cutter are driven by high-precision servo motors. This machine is specially designed for processing multi-core sheathed wires, and can complete the stripping of the outer sheath and core wires at one time. The blade holder adopts a double-blade structure. The round blade is used for stripping the outer sheath, and the flat blade is used for stripping the core wire. The blade holder automatically shifts to switch the appropriate blade. This machine can also be used as an ordinary wire stripping machine. In addition to processing multi-core sheathed wires, it can also be used to process multi-strand copper wire cables.

2.The belt feeding is used to replace the traditional roller feeding, which greatly increases the contact area with the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The blade holder is driven by a high-precision servo motor, which is fast and powerful.

3.The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time. When processing wires of different thicknesses, the position of the centerline of the wires can always be kept unchanged, and the wires are always aligned with the center of the blade opening. This can effectively prevent the strip from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.

4.This machine also has the function of automatic lifting wheel and jumping catheter. The automatic lifting wheel means that the outlet wheel can be automatically opened to avoid when stripping the wire head, and the jumper function means that the wire inlet guide is automatically lifted to avoid when stripping the end of the wire, which greatly increases the stripping length range.

5.The program is powerful. Both the outer sheath and the core wire support multiple stripping functions, which can realize the intermediate stripping of the outer sheath and the core wire. For the flat sheath wire, the core wire can also be cut to different lengths and stripped. The program memory function can store the processing parameters of different wires into different program numbers, and the corresponding program can be called out with one key when processing the wire again. One machine can complete the processing of various wires, which is very versatile.

Download: (1) (2) (3)

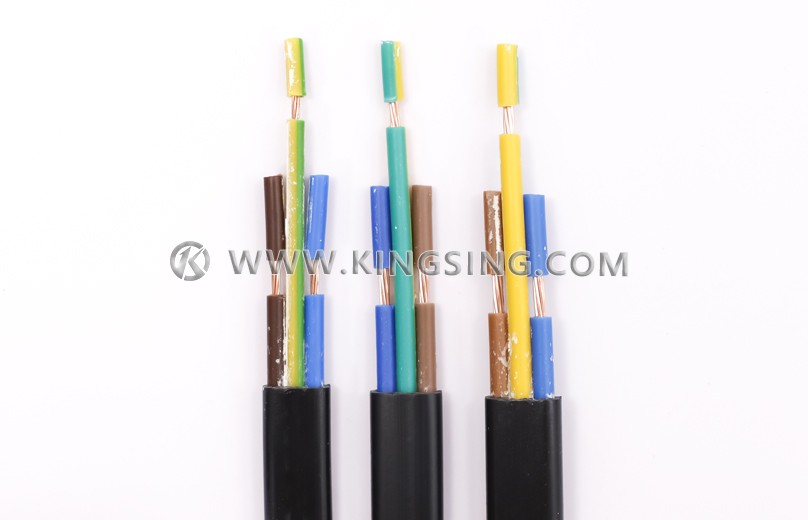

Applicable wire:Multi-core sheathed wire Multi-core cable

Processing speed:700~900pcs/h

Stripping length:wire head 0~200mm  wire tail 0~150mm

Processing diameter:2~12mm

Cutting length:10~10000mm

Cutting accuracy:0.001~0.002mm

Catheter bore diameter:1~14mm

Rated power:400~750W

Operating voltage:AC 220V 50/60Hz

Air pressure:0.4~0.6Mpa


Net weight:208Kg
