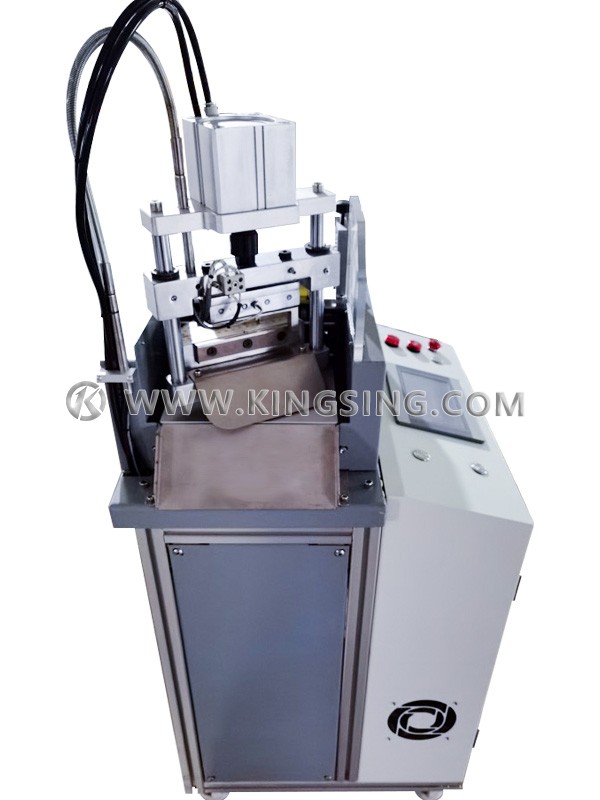

Full-automatic Belt Cutting Machine

  • Model：KS-C119X
  • Max. Width：
  • Blade Type：
  • Net. Weight：
  • Dimension：
Online Inquiry

Full-automatic Belt Cutting Machine is a new kind of mechanical and electrical integration machine.

Mechanical actions could be controlled by inputting particular parameters in o program,

which further meets different processing requirements.

This machine is competent for processing wide range of materials, more specifically, braided belt, magic tape, plastic soft tube, plastic zipper, ribbon wire, PP belt, label and etc.

Compensation function for cutting length enable this machine to adapt to process different materials. Besides, cutter equipped with heating device leaves cutting section more exquisite,

what stands out is that it’s not necessary to replace with cutters as cold and heat cutting mode could be converted by switch.

Moreover, infrared positioning function controlled by color mark sensor secures accurate cutting for magic tape.

Corner cutting function for magic tape widen processing range for this machine.

In addition, automatic saving function of program prevent processing data from losing.

Fast material feeding, high accuracy, low noise, small size and more energy-efficient, all of these have this machine recognized as more popular and professional machine in wire harness industry.


Applicable Material: braided belt, magic tape, plastic soft tube, plastic zipper, ribbon wire, PP belt, label and etc.

Cutting Length: 0.1-999999mm

Cutting Width: Straight: 100mm    Tilt: 50mm

Cutting Speed: 70-110pcs/min

Cutting Mode: Cold and Heat integrated cutter

Heating Temperature: Max. 400℃

Power Rating: 0.6Kw

Power Supply: 100/230V 50/60HZ

Gross Weight：65Kg

Package Dimension：720×440×560mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
