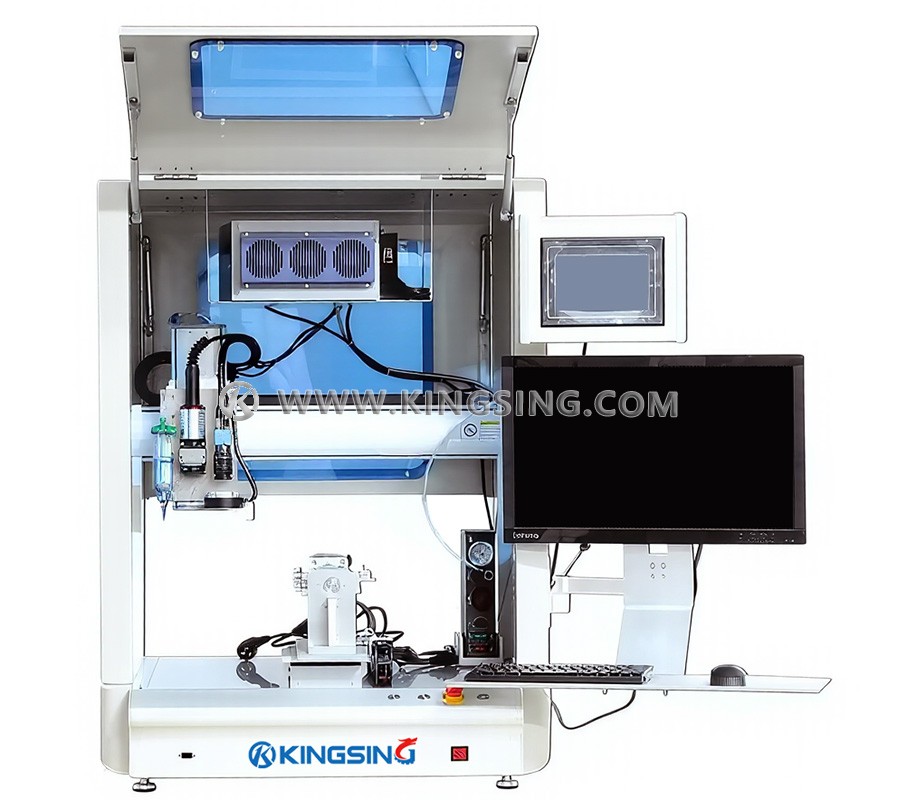

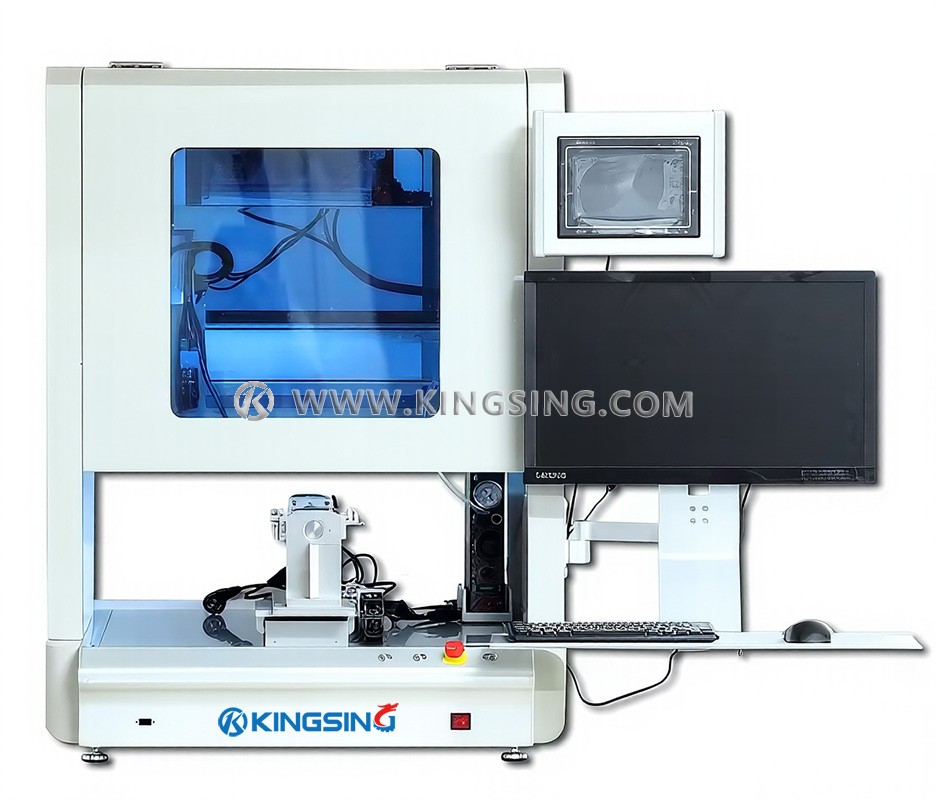

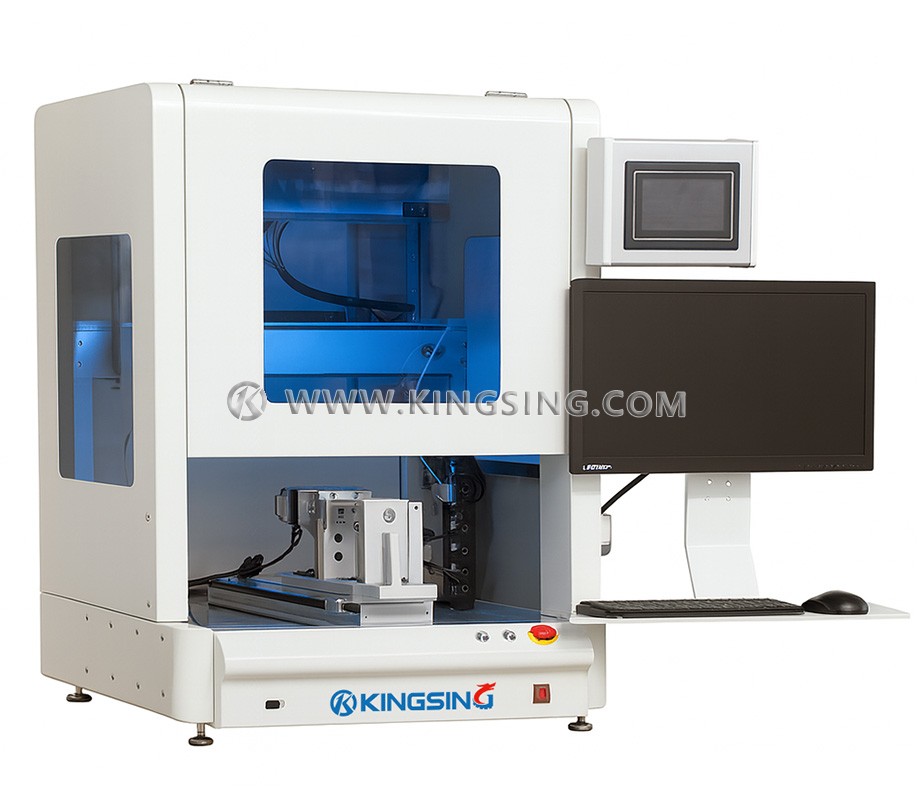

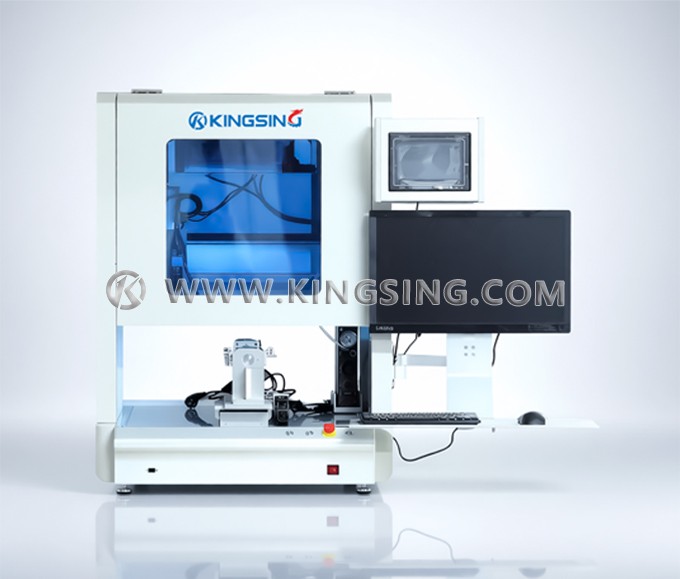

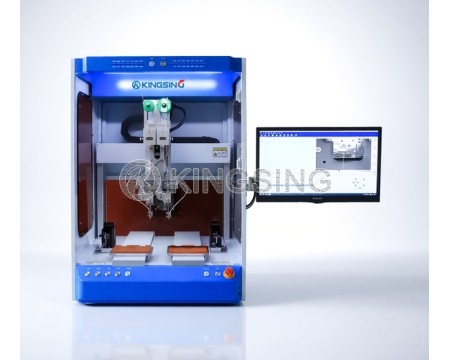

This advanced desktop laser soldering machine revolutionizes precision electronics assembly through innovative laser heating technology combined with automated solder wire feeding. Unlike traditional soldering methods, this system utilizes focused laser beams to create precise, localized heating zones while simultaneously feeding solder wire from continuous reels, ensuring consistent joint quality and optimal material usage.
The integrated CCD vision positioning system provides exceptional accuracy for component alignment, automatically detecting and positioning soldering spots with high precision. The laser soldering process eliminates direct contact with components, significantly reducing thermal stress and preventing damage to sensitive electronic parts while delivering superior joint aesthetics and reliability.
Optional dual independent work platforms are available to operate in alternating cycles, enhancing production efficiency compared to single-station systems. When equipped, one platform performs soldering operations while the second platform allows for component loading and setup, ensuring continuous workflow without production interruptions.
The automated solder wire feeding mechanism accommodates various wire diameters, drawing material from standard solder wire reels. This system provides precise control over solder quantity and placement, eliminating waste and ensuring consistent joint formation across all applications.
Designed for small to medium batch production environments, this machine excels in electronics manufacturing, PCB assembly, wire harness processing, telecommunications equipment, and automotive electronics applications. The eco-friendly laser soldering process generates no flux fumes, reduces energy consumption, and maintains clean working conditions.
The intuitive software interface supports multiple user management levels, automatic vision positioning, and one-click template saving for rapid model switching. Optional accessories including fume extraction systems and laser power meters enhance operational capabilities and workplace safety standards.
| Model | KS-S940A | KS-S940B | KS-S940C | KS-S940D | |
| Number of Controlled Axis | Three-axis (Single Station) | Four-axis (Dual Station) | |||
| Effective Travel | X | 300mm | 400mm | 500mm | 600mm |
| Y1 | 300mm | 400mm | 300mm | 400mm | |
| Y2 | -- | -- | 300mm | 400mm | |
| Z | 100mm | ||||
| Laser Power | 20W-160W (customizable) | ||||
| Laser Wavelength | 915/976nm | ||||
| Overall Processing Accuracy | ±0.1mm | ||||
| Repeat Positioning Accuracy | ±0.02mm | ||||
| Applicable Solder Wire Diameter | 0.5 / 0.6 / 0.8 / 1.0 / 1.2 / 1.5 mm | ||||
| Temperature Control Range | 0-500℃ | ||||
| Temperature Error | ±2℃ | ||||
| Positioning Method | Camera | ||||
| CCD Vision | Hikvision | ||||
| Control Method | Industrial PC + Control Card | ||||
| Program Memory Function | 999 groups, 9999 points per group | ||||
| Cooling Method | Air cooling | ||||
| Indicator Light | Red light | ||||
| Maximum Load | 15kg | ||||
| Power Supply | AC 220V 50/60Hz (customizable) | ||||
| Net Weight | 44kg | 59kg | 63kg | 81kg | |
| Dimension | 520×585×596mm | 620×685×596mm | 720×585×596mm | 820×685×596mm | |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
