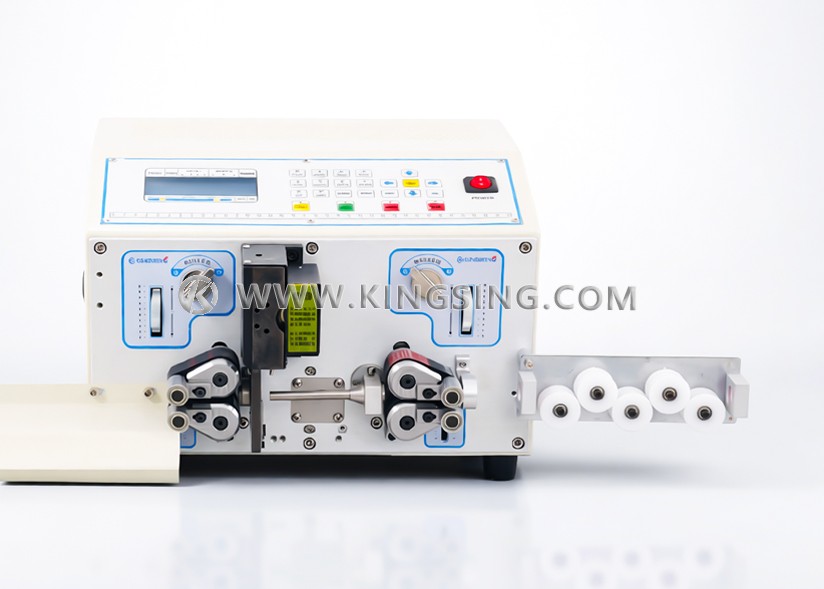

Belt-driven Wire Cutting and Stripping Machine

  • Model:KS-W6094 Series
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. Belt feeding wire stripping machine includes 4 sub-models (see technical parameters for details). Compared with the roller feeding, the belt feeding greatly increases the contact area between the wire and the feeding wheel, increases the tension and reduces the pressure at the same time, so it can effectively increase the stripping length range and reduce the pressure damage of the feeding wheel to the wire surface. It supports functions such as full stripping, half stripping, and middle stripping. The processing parameters of different wires can be saved in different program numbers. When switching wires, the corresponding processing parameters can be called out with one key.

  2. The program interface is intuitive and easy to understand. Parameters such as cutting wire length, stripping length, feed depth, retraction, and output can be freely set in the program. Functions such as long wire program, ultra-short wire program, middle stripping program, and sheath wire program can be switched at will, and one machine supports many different processing methods, which is very versatile.

  3. Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:

  • Install a safety shield, and automatically alarm and stop after opening the shield.

  • Linked with industrial robots, the machine automatically stops after processing a set of wires, and waits for the wires to be taken away by the manipulator before processing a set of spares.

  • Customized blades and conduits with special shapes are used to process flat sheathed wires, double parallel wires, flat wires and other wires. Flat sheathed wires can achieve inner and outer skinning.

  • Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.

  • Install the wire-taking manipulator and conveyor belt to ensure that the wire is put into the receiving tray straight and neatly when processing long wires.

  • Optional computer industrial control system (Windows operation interface), one-click batch processing of wires of different lengths. At the same time, the system also supports inkjet printers, which can print different content on each wire, and the processing parameters and inkjet content can be imported through the Excel table;



Download: (1)
ModelApplicable core arealift wheel functionFull stripped lengthMinimum glue length

KS-W6094A

(10 square single wire type)

0.1 ~ 10.0mm²

AWG28~7

----

Wire head:0~35mm

Wire tail:0~35mm

35mm

KS-W6094B

(10 square wheel type)

0.1 ~ 10.0mm²

AWG28~7

automatic lifting wheel

Wire head:0~120mm

Wire Tail:0~35mm

35mm

KS-W6094C

(Bold catheter)

Max Φ12mmautomatic lifting wheel

Wire head:0~120mm

Wire Tail:0~45mm

45mm

KS-W6094D

(16 square large wire type)

1.0 ~ 16.0mm²

AWG18~6

----

Wire head:0~45mm

Wire tail:0~45mm

45mm

Cutting length range: 0~100m

Cutting length accuracy: ±0.002×L (L means cutting length)

Program memory function: up to 100 groups of programs can be saved

Working voltage: 220V/50Hz


Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
