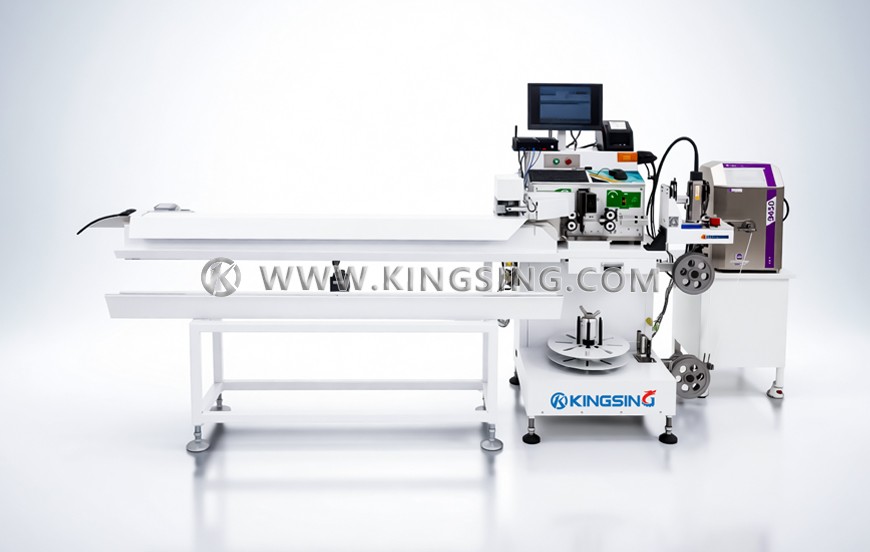

Wire Cutting Stripping and Inkjet Printing Machine

  • Model:KS-W10P series
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This machine integrates the functions of wire cutting, stripping, and inkjet printing, etc. The cutting length and printing content of each wire can be set independently, and wires of different lengths can be produced in batches.

  2. This machine adopts Windows operating system and supports importing processing data through Excel table, which is especially suitable for occasions with many varieties.

  3. It has built-in automatic wire prefeeder and conveyor belt, with compact structure and small footprint.

  4. The barcode scanner and barcode label printer are optional. The barcode scanner can call up the processing parameters with one key, and the barcode label printer can automatically print labels for different batches of products.

Download: (1) (2) (3)


ModelKS-W1006PKS-W1016P
Availabel Wire Size0.1~6mm20.1~16mm2
Cuttng Length60~2500mm (can be customized)
Length Tolerance±0.2+L×2‰ (L=Length)
Inkjet PrinterMarkem Imaje 9450
Printing Colorblack or white (you can only choose one color)
Operating SystemWindows
Motor TypeServo motor
Optional Functions Barcode Scanner, Barcode Printer

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
